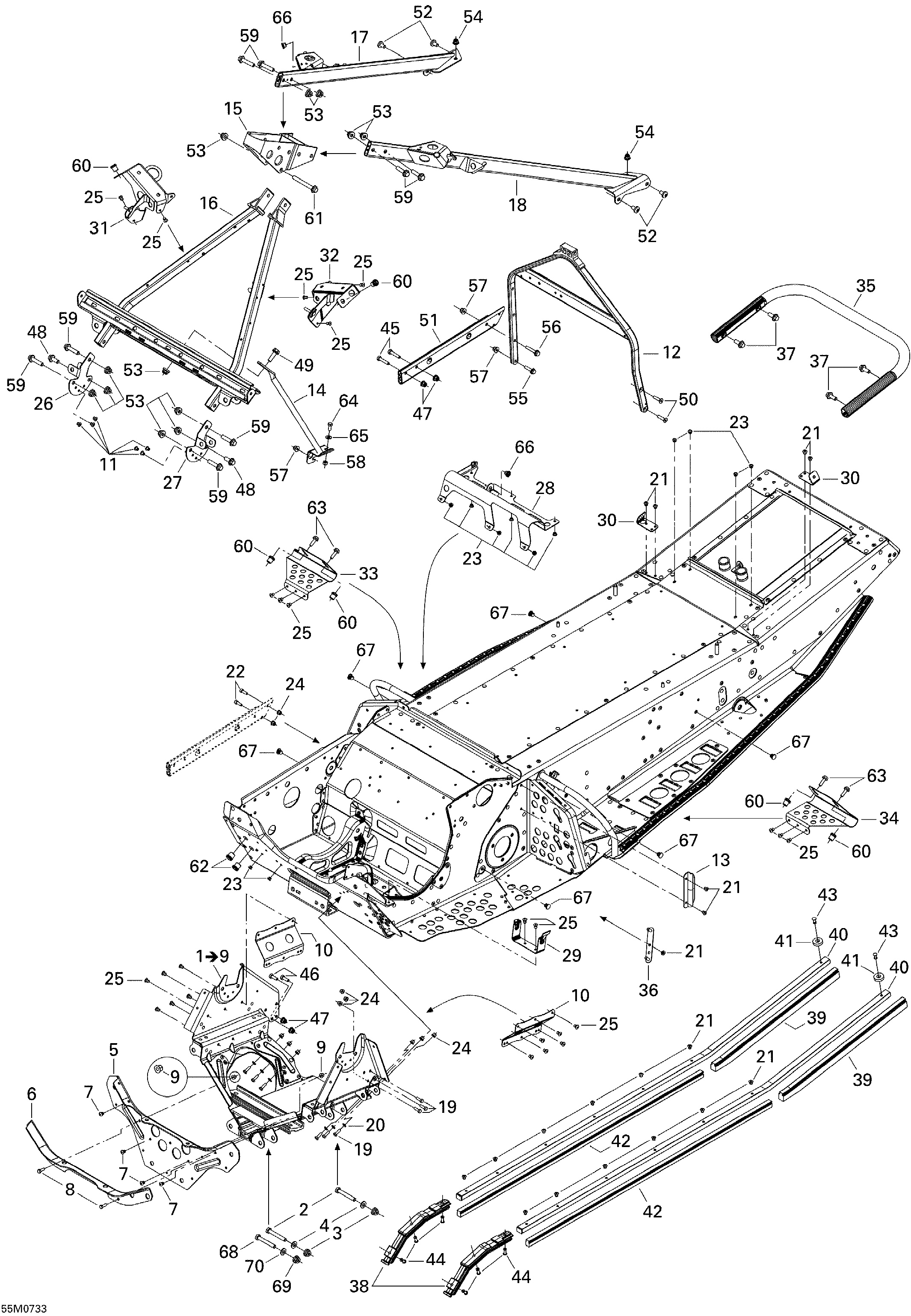

09- Frame and Components для BRP Ski-Doo MX Z 440X Racing - 2007
-
№АртикулНазвание
-
1518325438 Cross Member. Includes 1 to 9Cross Member. Includes 1 to 9
-
2207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518325422 Front PlateFront Plate
-
6518324107 Plate ReinforcementPlate Reinforcement
-
7390909100 Avex RivetAvex Rivet
-
8207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
9233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
10518324181 Corner ReinforcementCorner Reinforcement
-
11390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
12518324505 Handle SupportHandle Support
-
13518317504 Cable ProtectorCable Protector
-
14518323472 Brace, BlackBrace, Black
-
15518323854 Bracket BlockBracket Block
-
16518324574 Upper Cross MemberUpper Cross Member
-
17518324182 RH MemberRH Member
-
18518324183 LH MemberLH Member
-
19207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
20234051410 Flat Washer M5Flat Washer M5
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22205051644 Socket Screw M5 X 16Socket Screw M5 X 16
-
23390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
24233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
25390909200 Avex RivetAvex Rivet
-
26518325014 RH Shock BracketRH Shock Bracket
-
27518325015 LH Shock BracketLH Shock Bracket
-
28518323532 Intake Air Admission SupportIntake Air Admission Support
-
29518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
30518323274 Trunk Bracket, BlackTrunk Bracket, Black
-
31518323535 RH Console SupportRH Console Support
-
32518323536 LH Console SupportLH Console Support
-
33518324391 RH Toe HoldRH Toe Hold
-
34518324392 LH Toe HoldLH Toe Hold
-
35518324465 Rear BumperRear Bumper
-
36518323896 Trunk Bracket, BlackTrunk Bracket, Black
-
37236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
38518324071 Front ProtectorFront Protector
-
39518325020 ProtectorProtector
-
40518325016 Frame ProtectorFrame Protector
-
41510004418 WasherWasher
-
42518325017 ProtectorProtector
-
43390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
44390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
45207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
46207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
47233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
48207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
49207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
50205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
51518324096 RH Tunnel StiffenerRH Tunnel Stiffener
-
52250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
53233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
54233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
55207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
56207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
57233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
58232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
59207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
60415107300 InsertInsert
-
61207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
62293450166 InsertInsert
-
63207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
64207161444 Hex Screw M6 X 14Hex Screw M6 X 14
-
65224061121 Flat WasherFlat Washer
-
66293450232 InsertInsert
-
67518321954 Fastener PanelFastener Panel
-
68207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
69233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
70234081410 Flat Washer 8 mmFlat Washer 8 mm
