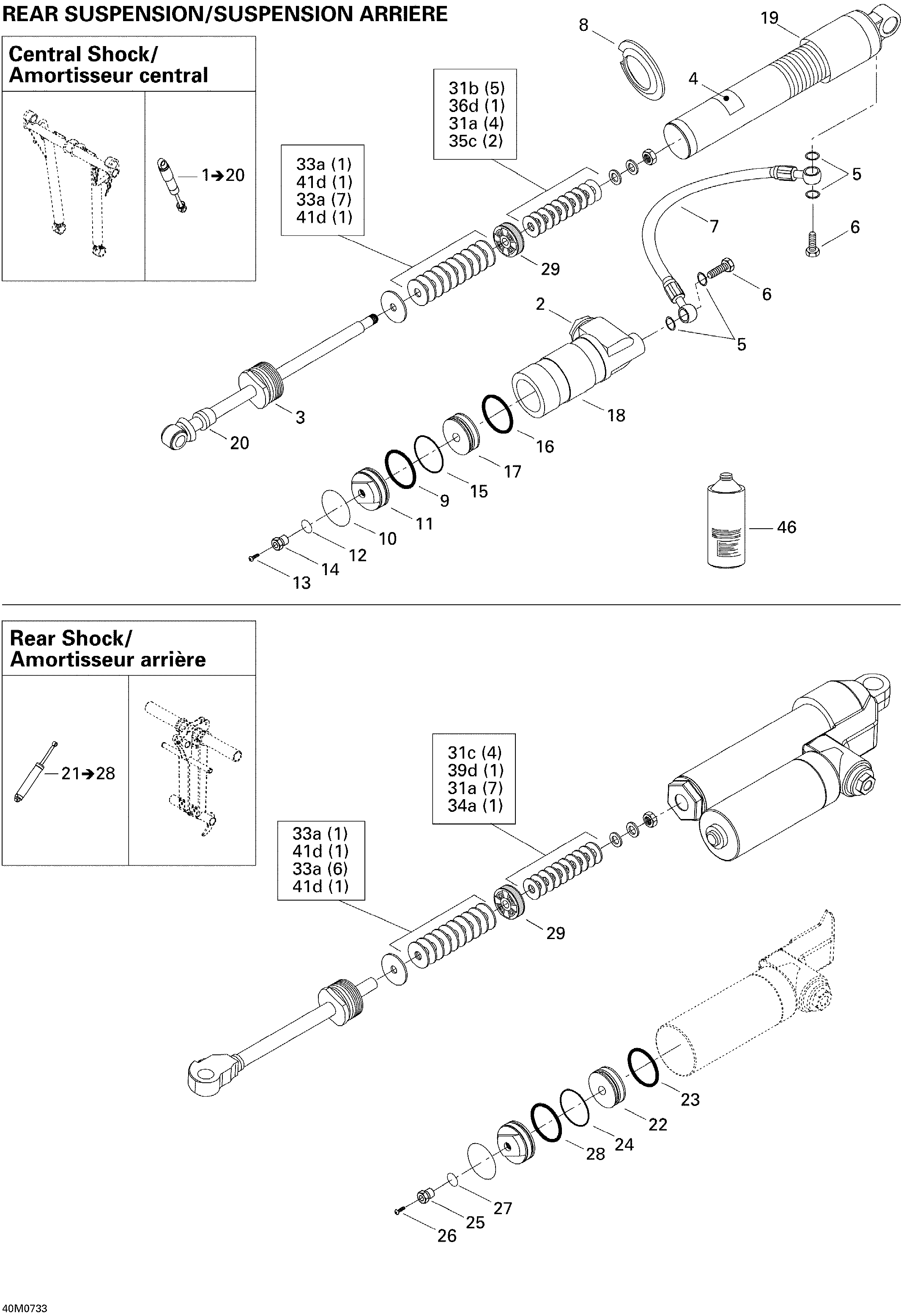

08- Take Apart Shock, Rear для BRP Ski-Doo MX Z 440X Racing - 2007
-
№АртикулНазвание
-
1503190582 Center Shock. Includes 1 to 20Center Shock. Includes 1 to 20
-
5415038700 O-RingO-Ring
-
6415093810 BoltBolt
-
7415128595 Hose Ass'yHose Ass'y
-
8415128598 Spring CollarSpring Collar
-
9415093804 O-RingO-Ring
-
12505070400 O-RingO-Ring
-
13505070399 ScrewScrew
-
14505070398 Air Valve RingAir Valve Ring
-
15415093806 Piston RingPiston Ring
-
16415093807 O-RingO-Ring
-
18415128596 ReservoirReservoir
-
21503190581 Rear Shock. Includes 21 to 28Rear Shock. Includes 21 to 28
-
23415093807 O-RingO-Ring
-
24415093806 Piston RingPiston Ring
-
25505070398 Air Valve RingAir Valve Ring
-
26505070399 ScrewScrew
-
27505070400 O-RingO-Ring
-
28415093804 O-RingO-Ring
-
30c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
30g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
31a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
31b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
31c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
33a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
33b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
36d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
37b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
37c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
39b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
39c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
41a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
41b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
41c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
41d415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
42b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
45a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
45b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
45d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
-
46293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
