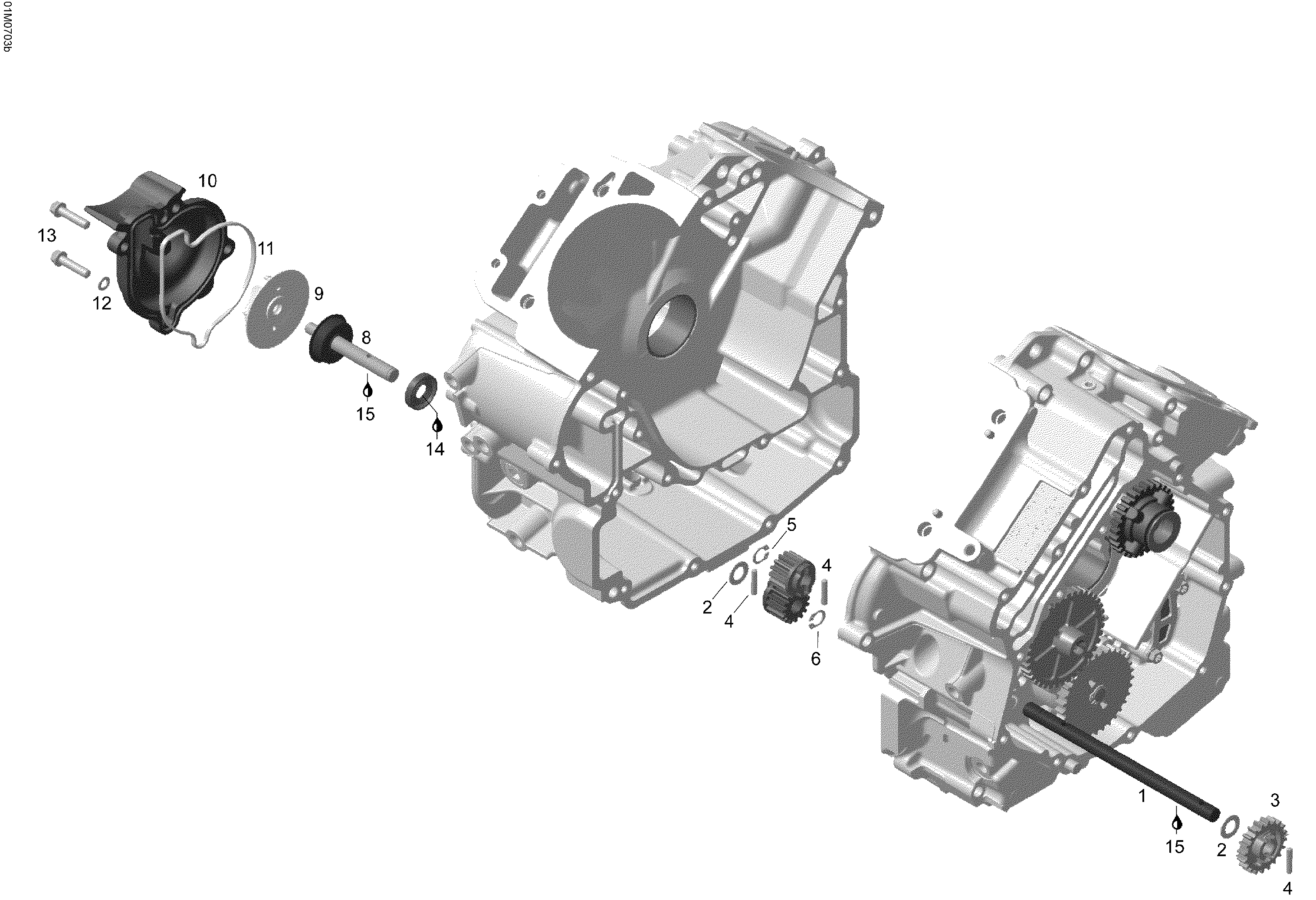

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo Skandic SWT V-800 - 2007
-
№АртикулНазвание
-
1420620500 Intermediate ShaftIntermediate Shaft
-
2420827590 Thrust WasherThrust Washer
-
3420434330 Water Pump GearWater Pump Gear
-
4420232420 Needle PinNeedle Pin
-
5420234627 Pump Gear, 15 TeethPump Gear, 15 Teeth
-
6420245330 Snap RingSnap Ring
-
8420620175 Water Pump ShaftWater Pump Shaft
-
9420222505 Water ImpellerWater Impeller
-
10420222780 Water Pump HousingWater Pump Housing
-
11420651190 GasketGasket
-
12420230415 Seal WasherSeal Washer
-
13420440237 Torx Flange Screw M6 X 25Torx Flange Screw M6 X 25
-
14293550030 Grease, Super LubeGrease, Super Lube
-
15293600054 Engine Oil 4 Strokes, 0w40, 12 X 1 LiterEngine Oil 4 Strokes, 0w40, 12 X 1 Liter
