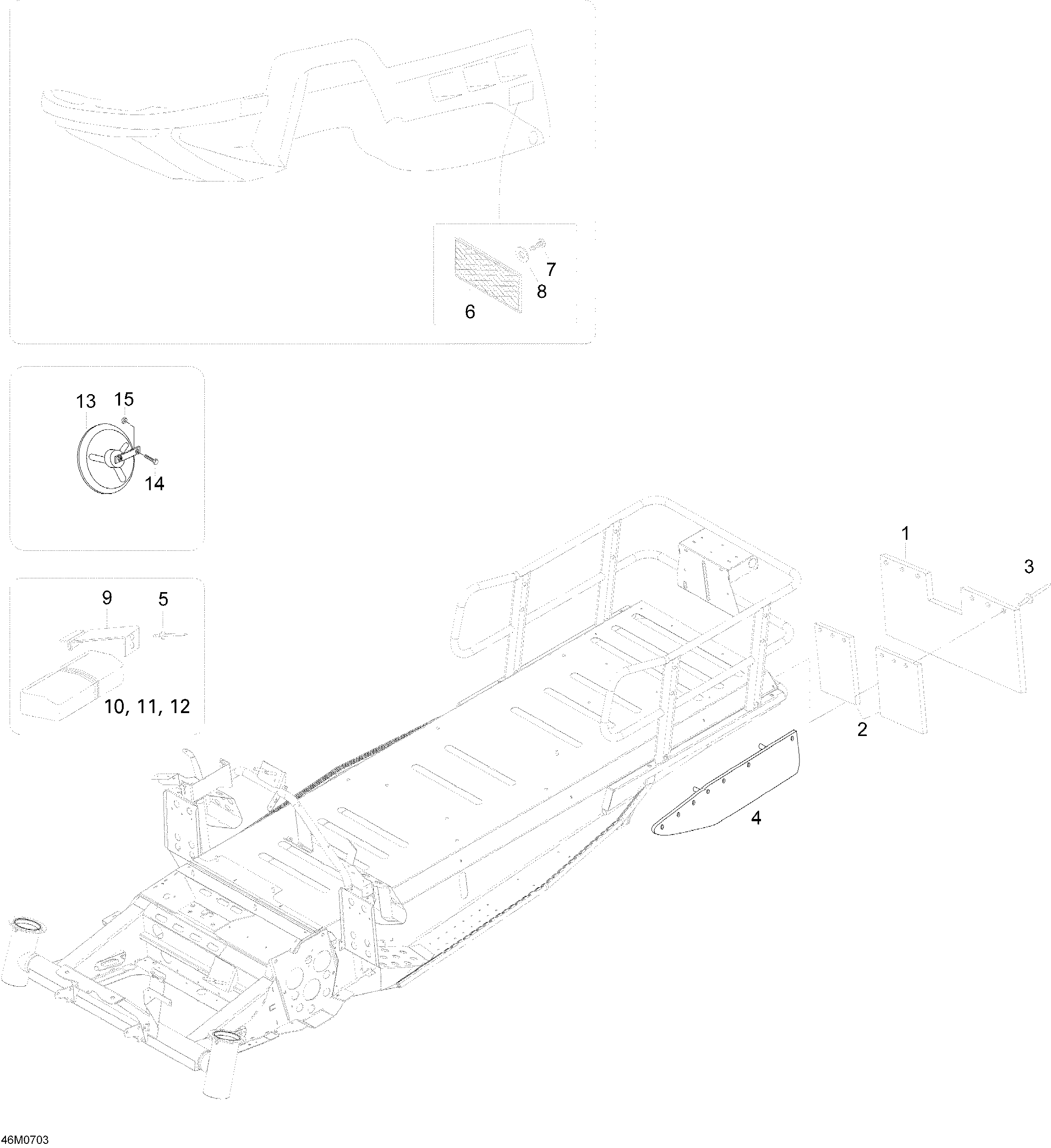

09- Utilities для BRP Ski-Doo Skandic SWT V-800 - 2007
-
№АртикулНазвание
-
1605354720 Snow GuardSnow Guard
-
2M5341770 SupportSupport
-
3M36037 RivetRivet
-
4605354746 LH Side Snow GuardLH Side Snow Guard
-
4605354747 RH Side Snow GuardRH Side Snow Guard
-
5M36108 RivetRivet
-
6414510200 Reflector, AmberReflector, Amber
-
7M40070 ScrewScrew
-
8234451418 Lock Serrated Washer 5 mmLock Serrated Washer 5 mm
-
9M5346728 Spring PlateSpring Plate
-
10605352219 Tool SetTool Set
-
11A50121179000 Tool BoxTool Box
-
13M42016 HornHorn
-
14207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
15M33200 Nut M6Nut M6
