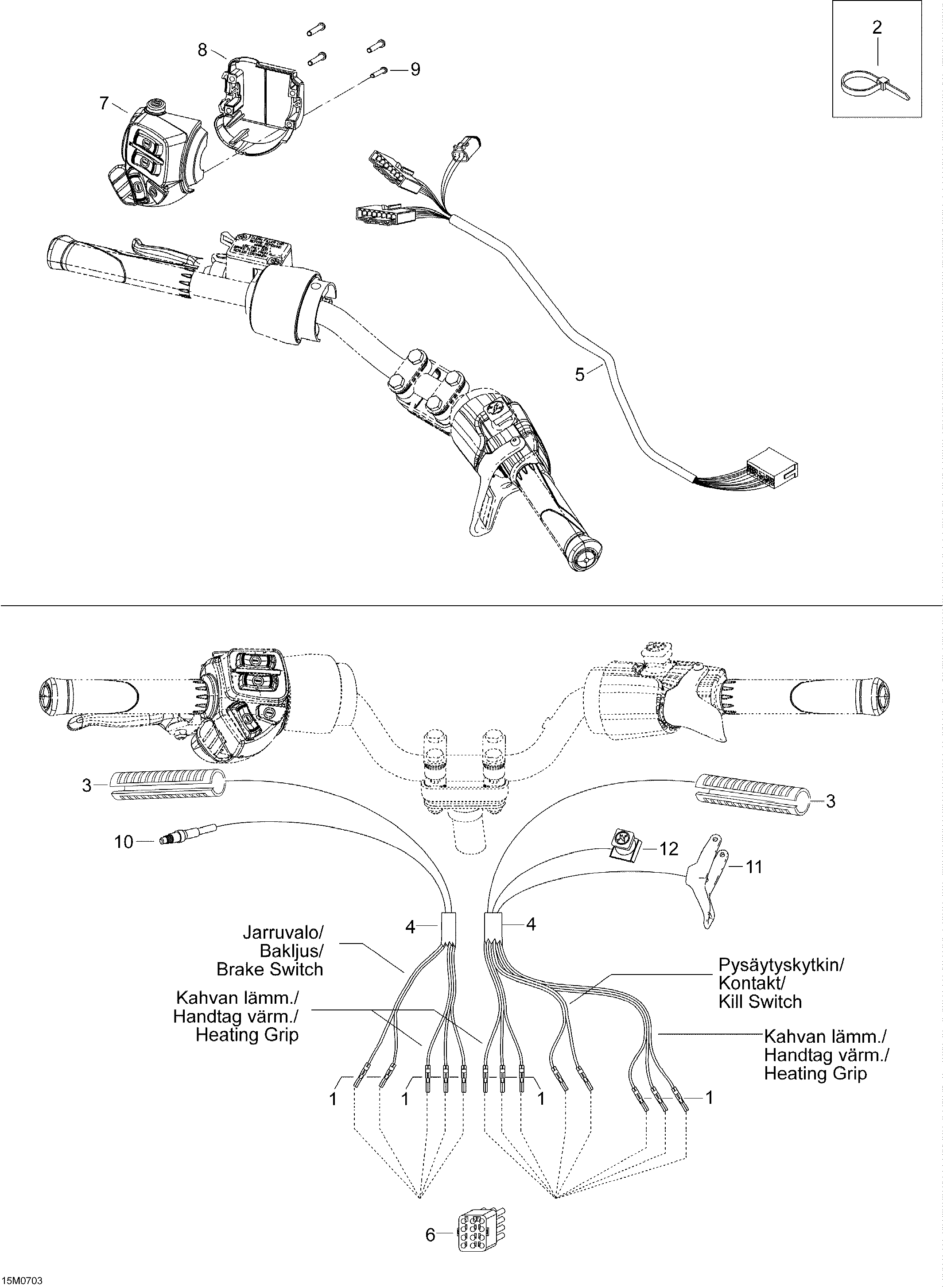

10- Steering Wiring Harness для BRP Ski-Doo Skandic SWT V-800 - 2007
-
№АртикулНазвание
-
1605642628 ConnectorConnector
-
2M27100 Tie Rap 290 mmTie Rap 290 mm
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175664 Heating GripHeating Grip
-
4M39023 HousingHousing
-
5605354616 Steering Harness Ass'ySteering Harness Ass'y
-
6M42617 Male Connector HousMale Connector Hous
-
7605354729 LH Switch HousingLH Switch Housing
-
9M40903 Screw 3.5X25Screw 3.5X25
-
10507032366 MicroswitchMicroswitch
-
11512059481 Throttle HandleThrottle Handle
-
12515175410 Kill SwitchKill Switch
-
605154615 Main Harness. Not ShownMain Harness. Not Shown
