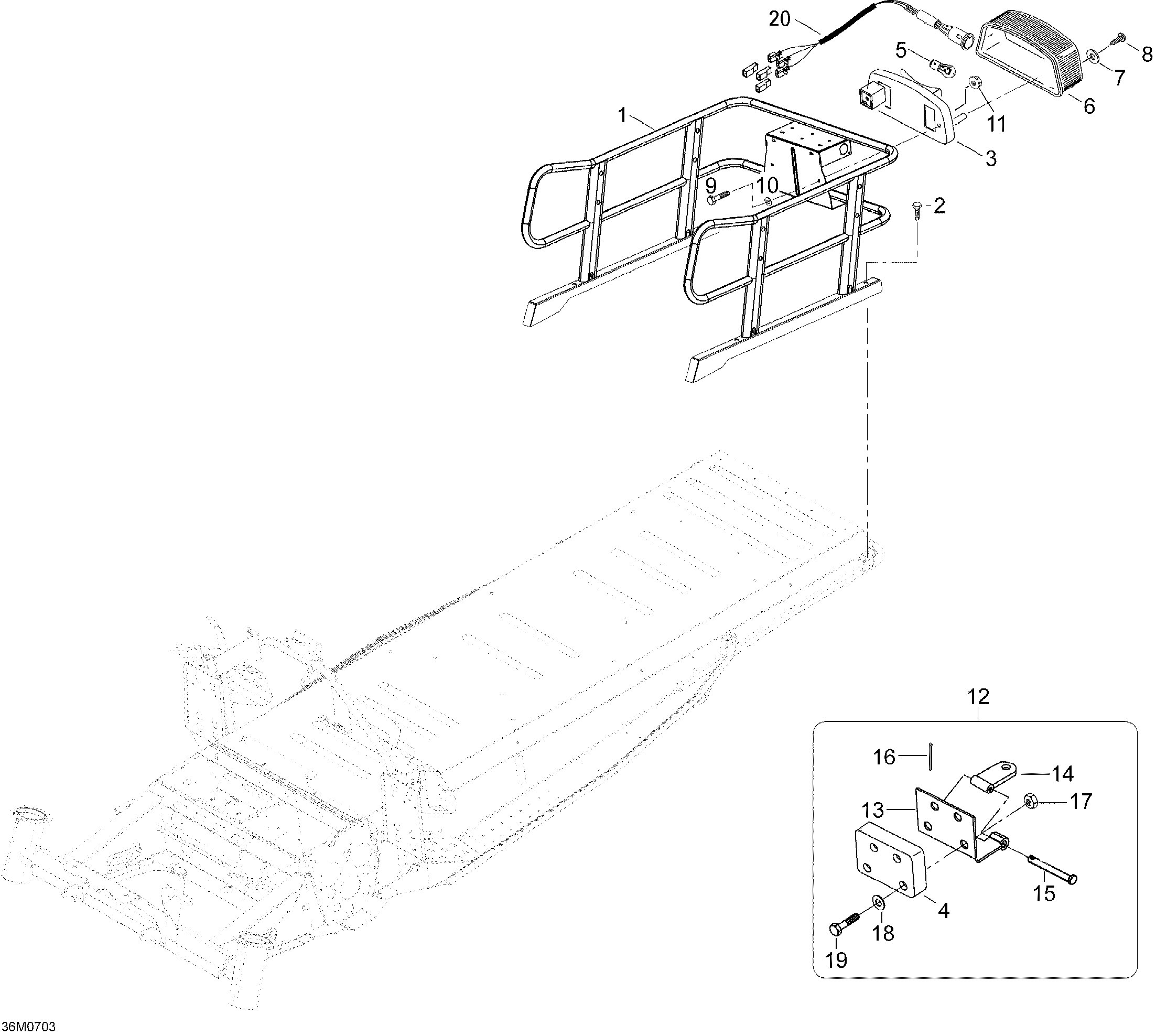

09- Luggage Rack для BRP Ski-Doo Skandic SWT V-800 - 2007
-
№АртикулНазвание
-
1605255117 Portable Rack Ass'yPortable Rack Ass'y
-
2M40336 Screw M8 X 20Screw M8 X 20
-
3515175397 Lamp HousingLamp Housing
-
4605351510 SpacerSpacer
-
5410504100 Tail Light BulbTail Light Bulb
-
6414513700 LensLens
-
7414516400 WasherWasher
-
8209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
9M40064 Hex ScrewHex Screw
-
10M20077 WasherWasher
-
11M33200 Nut M6Nut M6
-
13M5344151 PlatePlate
-
14M548745 Hitch PlateHitch Plate
-
15560309200 Pin-RetainerPin-Retainer
-
16M41031 PinPin
-
17232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
18234081410 Flat Washer 8 mmFlat Washer 8 mm
-
19207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
20605354685 Rear Lamp HarnessRear Lamp Harness
