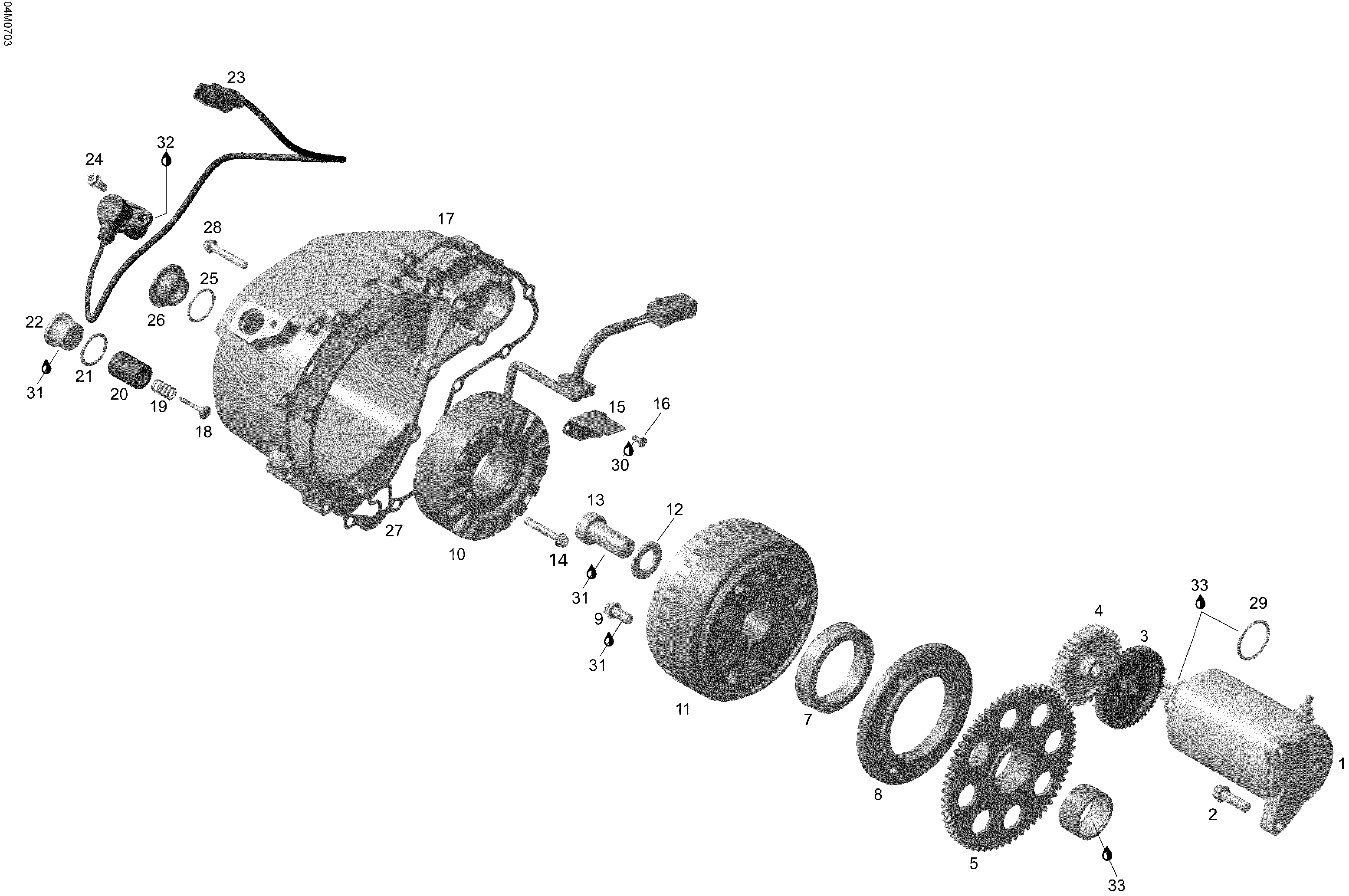

03- Magneto для BRP Ski-Doo Skandic SWT V-800 - 2007
-
№АртикулНазвание
-
1420684560 Starter Ass'yStarter Ass'y
-
2420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
3420634740 Double GearDouble Gear
-
4420634600 Intermediate GearIntermediate Gear
-
5420434235 Free Wheel Gear Ass'yFree Wheel Gear Ass'y
-
7420659112 Sprag ClutchSprag Clutch
-
8420659260 Sprag Clutch HousingSprag Clutch Housing
-
9420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
10420684852 Stator Ass'yStator Ass'y
-
11420684867 Magneto FlywheelMagneto Flywheel
-
12420627270 ShimShim
-
13420241545 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
14420440277 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
15420251880 Cable Inner CoverCable Inner Cover
-
16420240195 Tapping Screw M4 X 8Tapping Screw M4 X 8
-
17420611130 CoverCover
-
18420656370 Pressure Relief ValvePressure Relief Valve
-
19420939480 Compression SpringCompression Spring
-
20420256486 Housing ValveHousing Valve
-
21420650465 Gasket RingGasket Ring
-
22420640270 Screw PlugScrew Plug
-
23420966570 Crank Position TriggerCrank Position Trigger
-
24420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
25420430782 O-RingO-Ring
-
26420241630 Screw PlugScrew Plug
-
27420651200 GasketGasket
-
28420440277 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
29420250140 O-RingO-Ring
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
32293550030 Grease, Super LubeGrease, Super Lube
-
33293600054 Engine Oil 4 Strokes, 0w40, 12 X 1 LiterEngine Oil 4 Strokes, 0w40, 12 X 1 Liter
