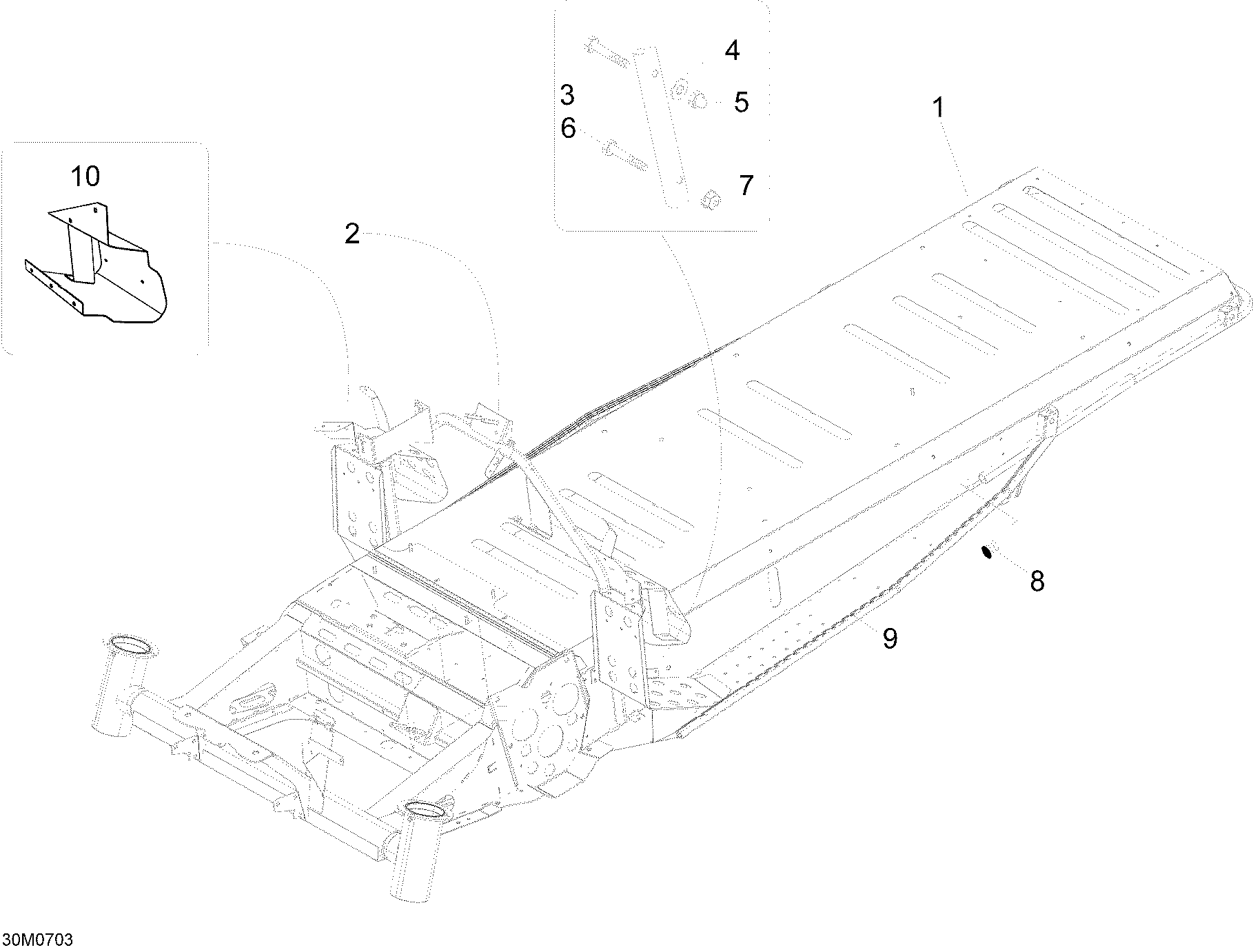

09- Frame для BRP Ski-Doo Skandic SWT V-800 - 2007
-
№АртикулНазвание
-
1605152547 FrameFrame
-
2605153465 Bar SupportBar Support
-
3M40003 Hex ScrewHex Screw
-
4234061410 Flat Washer 6 mmFlat Washer 6 mm
-
5232061414 Hex Nut M6Hex Nut M6
-
6207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
7M33200 Nut M6Nut M6
-
8M28210 PlugPlug
-
9605253506 RH ReinforcementRH Reinforcement
-
9605253507 LH ReinforcementLH Reinforcement
-
10605253504 RH Toe RestRH Toe Rest
-
10605253505 LH Toe RestLH Toe Rest
