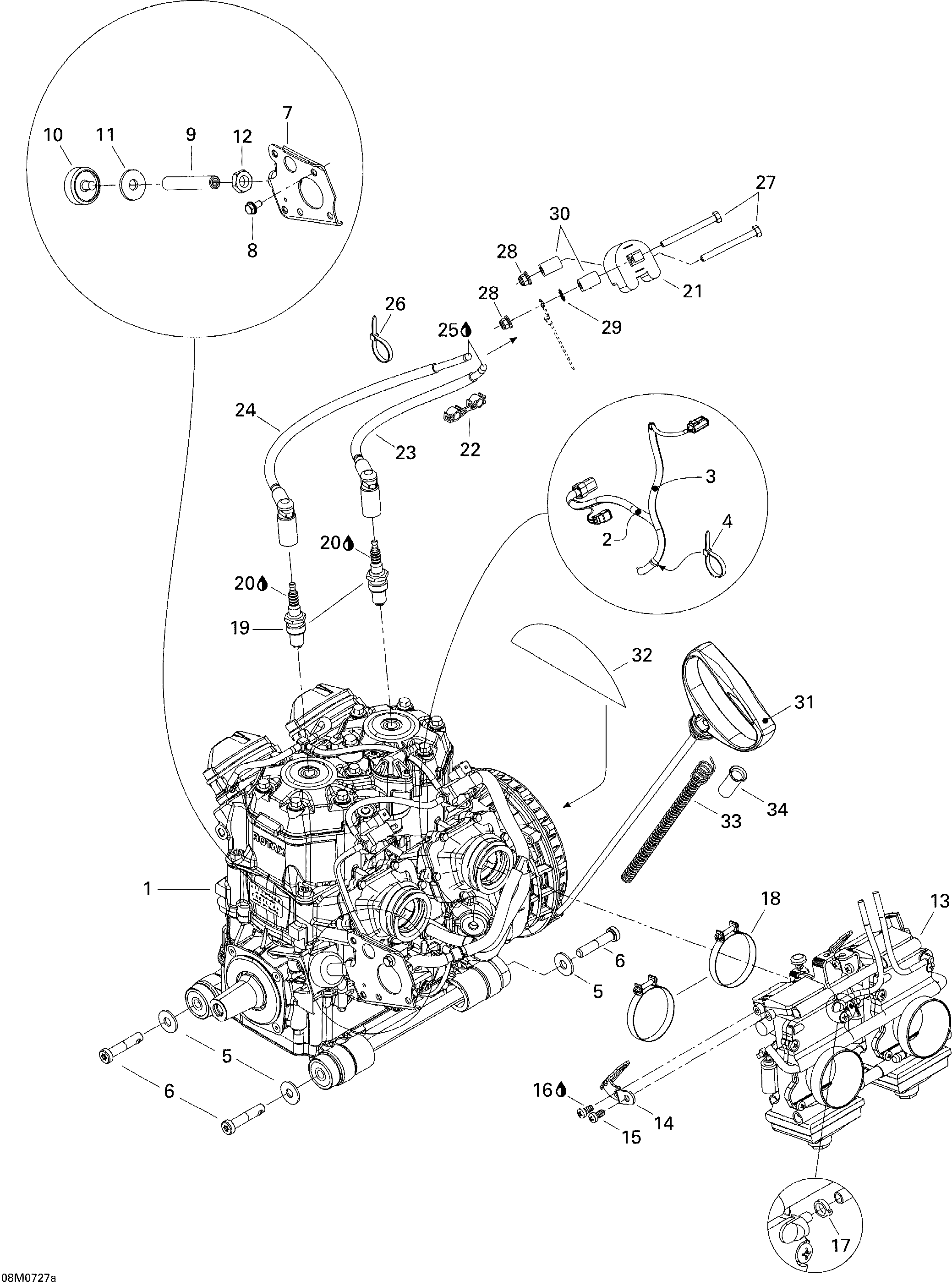

01- Engine 1, 800R для BRP Ski-Doo Summit Adrenaline 800R - 2007
-
№АртикулНазвание
-
1400702629 Engine 800R PTEK (797 REV)Engine 800R PTEK (797 REV)
-
2409901800 Tubing 13 mmTubing 13 mm
-
3415079900 Tubing 10 mmTubing 10 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
5506151251 WasherWasher
-
6250000252 Torx Screw M10 X 50Torx Screw M10 X 50
-
7512059840 PlatePlate
-
8207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
9250500007 Stopper ScrewStopper Screw
-
10512059610 StopperStopper
-
11512059057 WasherWasher
-
12232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
13403138797 Carburetor Kit TM40-B361Carburetor Kit TM40-B361
-
14512060290 Solenoid BracketSolenoid Bracket
-
15208650841 Phillips Head Screw M5 X 8Phillips Head Screw M5 X 8
-
16413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
17293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
18512059835 Gemi ClampGemi Clamp
-
19415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
20293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
21512059968 Ignition CoilIgnition Coil
-
22410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
23512059695 Cable Ass'y, 300 mmCable Ass'y, 300 mm
-
24512059696 Cable Ass'y, 375 mmCable Ass'y, 375 mm
-
25293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27207066044 Hex Screw M6 X 60Hex Screw M6 X 60
-
28233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
29394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
30517203200 SpacerSpacer
-
31572084400 Starter GripStarter Grip
-
32512059893 Reflective SheetReflective Sheet
-
33512059535 Rope GuideRope Guide
-
34512059536 TubeTube
