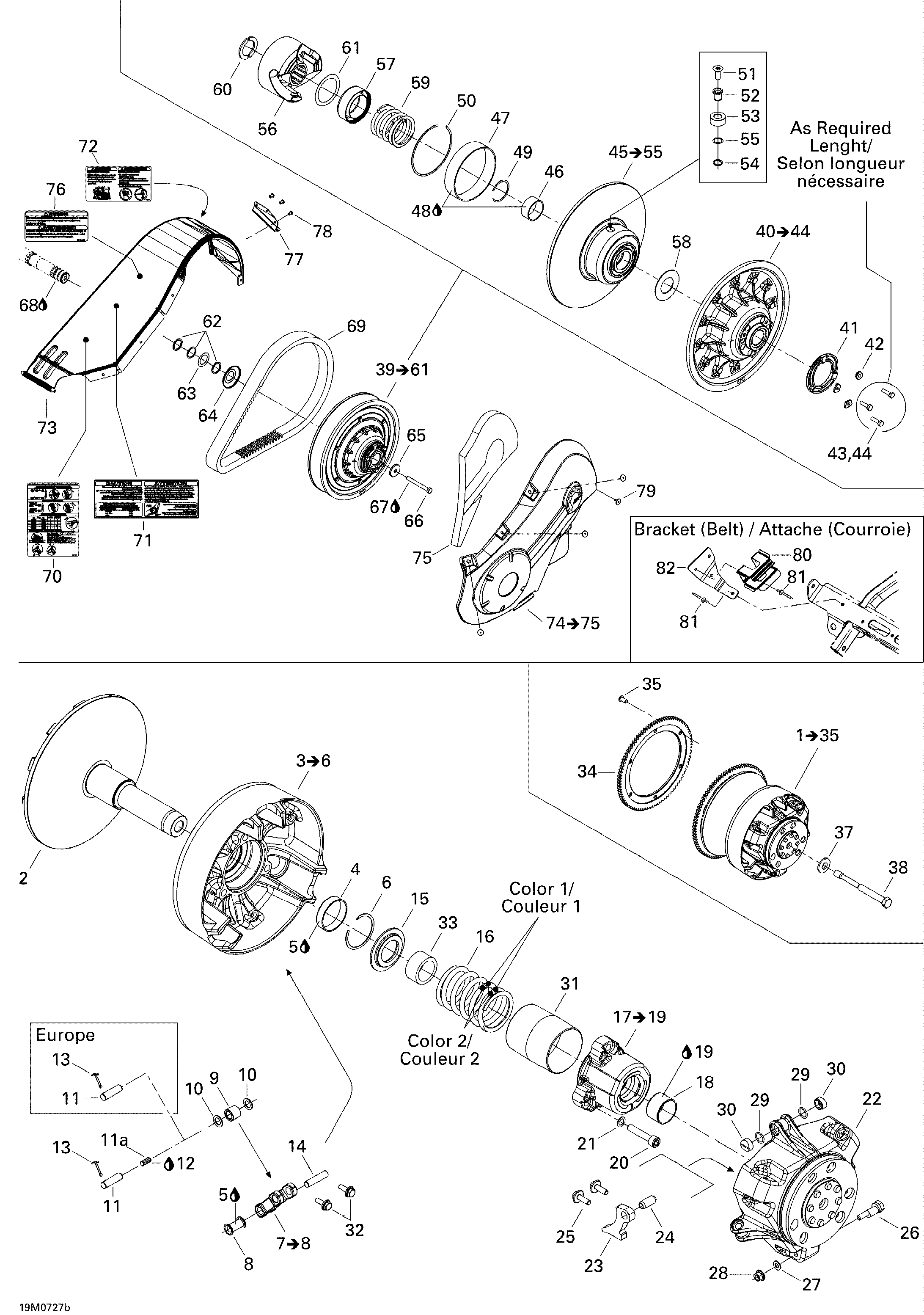

05- Pulley System 800R для BRP Ski-Doo Summit Adrenaline 800R - 2007
-
№АртикулНазвание
-
1417222905 Drive Pulley. Includes 1 to 35Drive Pulley. Includes 1 to 35
-
2417222966 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222646 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 8Lever Ass'y. Includes 7 to 8
-
8417222633 BushingBushing
-
9417223035 RollerRoller
-
10417004302 Stopper WasherStopper Washer
-
11417222595 Threaded Pin, M6. North AmericaThreaded Pin, M6. North America
-
11417222594 Pin. EuropePin. Europe
-
11a206262599 Socket Set Screw. North AmericaSocket Set Screw. North America
-
12293800060 Loctite 243, 10 ml. North AmericaLoctite 243, 10 ml. North America
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16415034900 Spring, Violet/green. North AmericaSpring, Violet/green. North America
-
16415015400 Spring, Violet/yellow. EuropeSpring, Violet/yellow. Europe
-
17417222759 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222634 Governor CupGovernor Cup
-
23417222548 Ramp 415Ramp 415
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex. Flanged Scew M6 X 18Hex. Flanged Scew M6 X 18
-
26417222955 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
29732401030 O-RingO-Ring
-
30417222362 Slider ShoeSlider Shoe
-
31417009205 GuardGuard
-
32250000182 Serrated Hex. Flanged Screw M6 X 16Serrated Hex. Flanged Screw M6 X 16
-
33417222826 BushingBushing
-
34417222952 Ring GearRing Gear
-
35250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
37250200006 Spring Washer 14 mmSpring Washer 14 mm
-
38417300296 Drive Pulley BoltDrive Pulley Bolt
-
40417126807 Fixed Flange Ass'y. Includes 40 to 44Fixed Flange Ass'y. Includes 40 to 44
-
41415005800 Adjustment RingAdjustment Ring
-
42415005900 Adjustment ShimAdjustment Shim
-
43207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
44207162244 Hex. Screw M6 X 22Hex. Screw M6 X 22
-
45417127040 Slidding Flange Ass'y. Includes 45 to 55Slidding Flange Ass'y. Includes 45 to 55
-
46417127042 BushingBushing
-
47417127043 BushingBushing
-
48413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
49371911200 CirclipCirclip
-
50417126878 CirclipCirclip
-
51250000279 Torx Screw M8, Scotch GripTorx Screw M8, Scotch Grip
-
52417127015 StudStud
-
53417126892 RollerRoller
-
54417126823 V-circlipV-circlip
-
55417126797 WasherWasher
-
56417126967 Cam Ass'yCam Ass'y
-
57417126381 GuardGuard
-
58504099600 Stopper WasherStopper Washer
-
59414978300 Release Spring, PurpleRelease Spring, Purple
-
60417126734 Half KeyHalf Key
-
61417126322 Swivel AbutmentSwivel Abutment
-
62417300252 SpacerSpacer
-
62417300265 SpacerSpacer
-
63504112000 ShimShim
-
64417300238 ProtectorProtector
-
65517302322 Strength WasherStrength Washer
-
66207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
67293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
68293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
69417300166 Drive BeltDrive Belt
-
70516001639 Decal, Suspension AdjustmentDecal, Suspension Adjustment
-
71516003278 Label. North AmericaLabel. North America
-
71516003279 Label. EuropeLabel. Europe
-
72516002674 Emergency Starting LabelEmergency Starting Label
-
73417300332 Belt GuardBelt Guard
-
74417300301 Side Protector Ass'y. Includes 74 to 75Side Protector Ass'y. Includes 74 to 75
-
75417300246 FoamFoam
-
76516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
77417300216 Belt Guard BracketBelt Guard Bracket
-
78390909200 Avex RivetAvex Rivet
-
79293150103 Pop RivetPop Rivet
-
80517281905 BracketBracket
-
81390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
82417300282 BracketBracket
