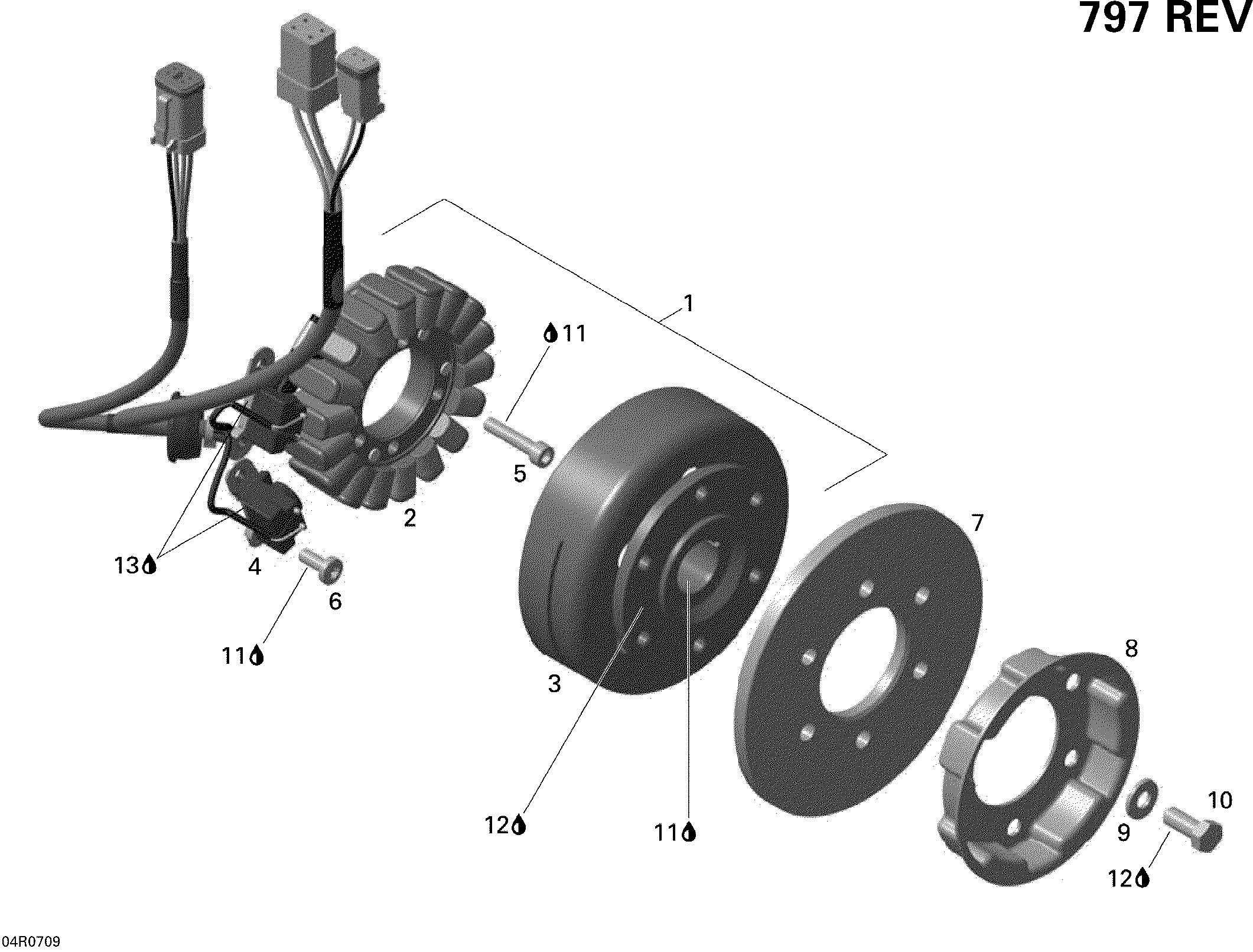

03- Magneto для BRP Ski-Doo Summit Adrenaline 800R - 2007
-
№АртикулНазвание
-
2420889905 Stator PlateStator Plate
-
3420665720 FlywheelFlywheel
-
4410922948 Pickup Ass'yPickup Ass'y
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640321 Taptite Screw M6 X 16Taptite Screw M6 X 16
-
7420866070 FlywheelFlywheel
-
8420852534 Starting PullerStarting Puller
-
9420827405 Flat WasherFlat Washer
-
10207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
13293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
