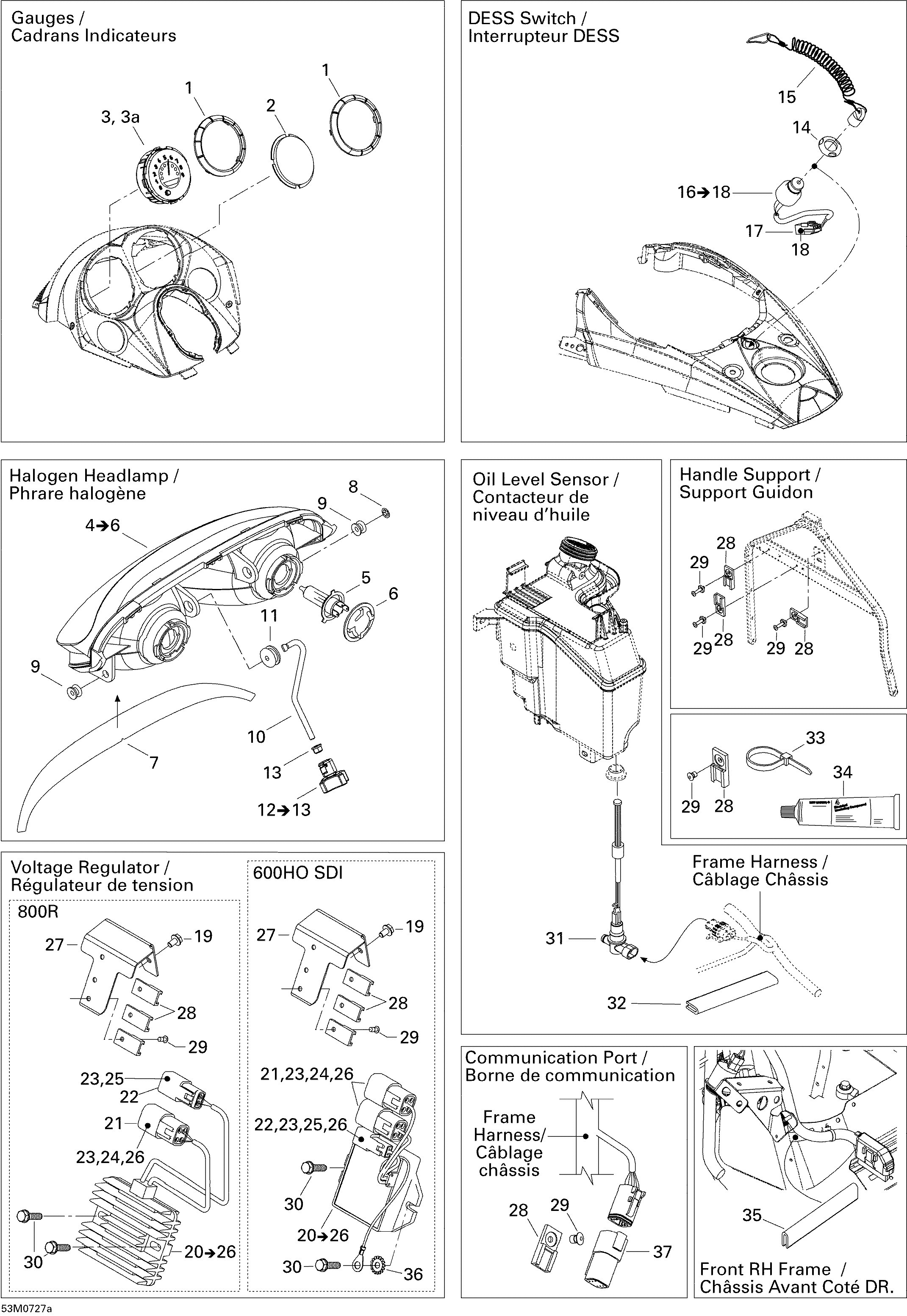

10- Electrical Accessories 1, 800R для BRP Ski-Doo Summit Adrenaline 800R - 2007
-
№АртикулНазвание
-
1515176242 Gauge RingGauge Ring
-
2515175901 Bottom RingBottom Ring
-
3515176479 Tachometer/Speedo GaugeTachometer/Speedo Gauge
-
3a415128938 Remplacement Lens, SpeedometerRemplacement Lens, Speedometer
-
4515176311 Halogen Headlamp Ass'y. Includes 4 to 6Halogen Headlamp Ass'y. Includes 4 to 6
-
5515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515176385 Bulb HolderBulb Holder
-
7516001328 Headlamp DecalHeadlamp Decal
-
8732610072 Push NutPush Nut
-
9515175760 Headlamp BushingHeadlamp Bushing
-
10515175521 Adjuster RodAdjuster Rod
-
11415100800 GrommetGrommet
-
12515175975 Handle. Includes 12 to 13Handle. Includes 12 to 13
-
13233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
14278000508 Safety Switch NutSafety Switch Nut
-
15515176461 DESS CapDESS Cap
-
16515175797 Dess Switch. Includes 16 to 18Dess Switch. Includes 16 to 18
-
17515175232 Male TerminalMale Terminal
-
18515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
19210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
20515175968 Voltage Regulator. 800R, Includes 20 to 26Voltage Regulator. 800R, Includes 20 to 26
-
21278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
22278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
23515175568 Male TerminalMale Terminal
-
24278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
25278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
26293000052 Sealing CapSealing Cap
-
27515176191 Housing SupportHousing Support
-
28515175917 ClipClip
-
29293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
30210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
31515176327 Oil Level SensorOil Level Sensor
-
32509000263 TrimTrim
-
33293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35271000110 Protection TrimProtection Trim
-
37515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
