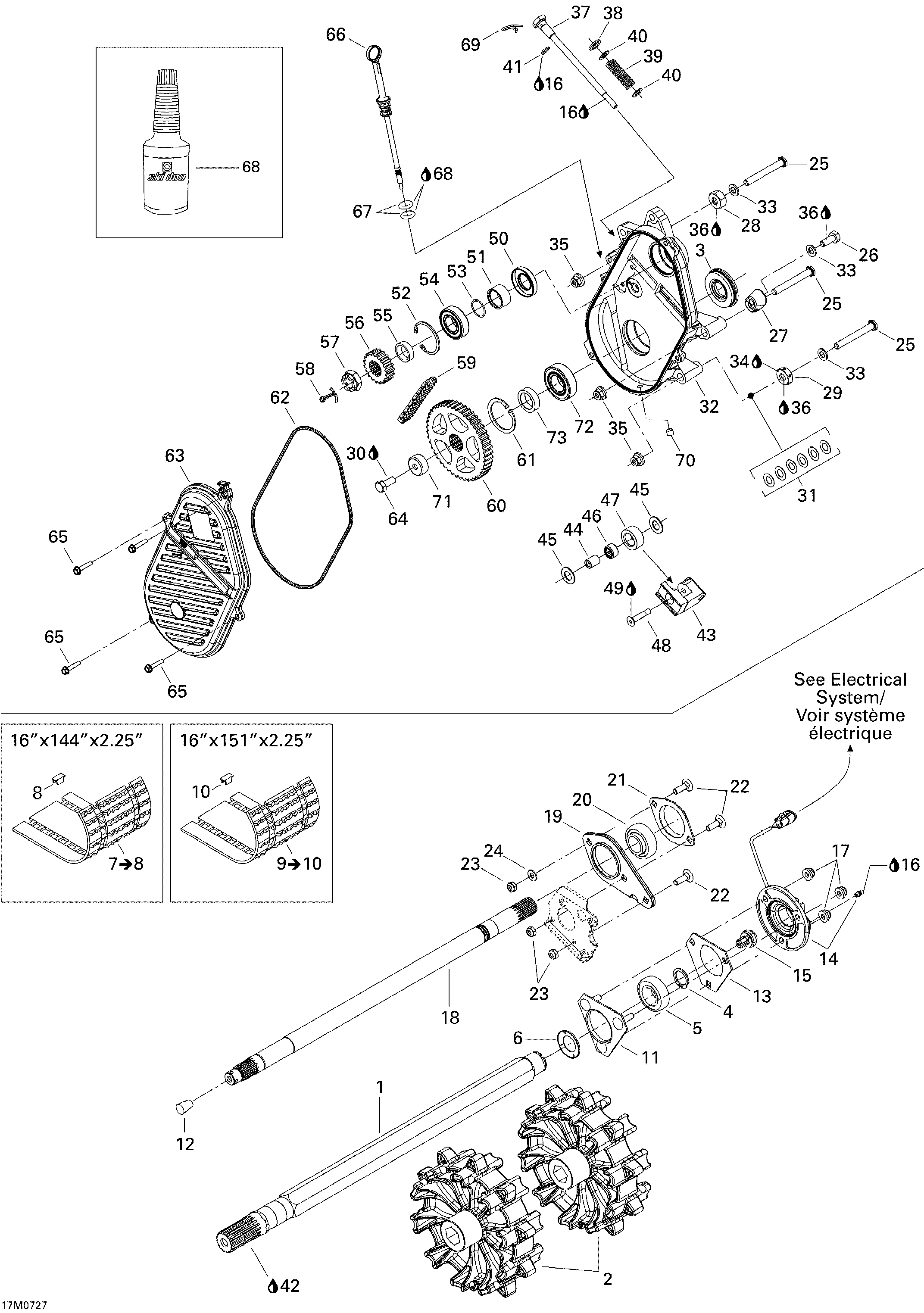

05- Drive System 800R для BRP Ski-Doo Summit Adrenaline 800R - 2007
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504152503 Double Sprocket, 9 TeethDouble Sprocket, 9 Teeth
-
3504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152730 Track 16'' X 144'' X 2.25'' Ass'y. Includes 7 to 8Track 16'' X 144'' X 2.25'' Ass'y. Includes 7 to 8
-
8504152410 GuideGuide
-
9504152731 Track 16'' X 151'' X 2.25. Ass'y. Includes 9 to 10Track 16'' X 151'' X 2.25. Ass'y. Includes 9 to 10
-
10504152410 GuideGuide
-
11504151860 Bearing HousingBearing Housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152345 Rotation SensorRotation Sensor
-
15504152040 Magnetic AdaptorMagnetic Adaptor
-
16219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
17233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
18504152018 Counter ShaftCounter Shaft
-
19504151968 SpacerSpacer
-
20504152535 Ball BearingBall Bearing
-
21501026900 FlangeFlange
-
22207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
23232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
24234081410 Flat Washer 8 mmFlat Washer 8 mm
-
25250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
26207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
27504152252 SpacerSpacer
-
28504083800 SpacerSpacer
-
29504152237 SpacerSpacer
-
30293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
31504073700 WasherWasher
-
32504152482 ChaincaseChaincase
-
33503175800 WasherWasher
-
34293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
35233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
36293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
37504151946 Adjustment ScrewAdjustment Screw
-
38503189148 WasherWasher
-
39504151945 SpringSpring
-
40503189564 WasherWasher
-
41504151954 O-RingO-Ring
-
42219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
43504151940 Chain TensionerChain Tensioner
-
44504080200 SpacerSpacer
-
45504080300 WasherWasher
-
46405403000 Needle BearingNeedle Bearing
-
47414531300 RollerRoller
-
48732601144 ScrewScrew
-
49293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
50415049300 SealSeal
-
51507031500 SpacerSpacer
-
52371901700 CirclipCirclip
-
53414876700 O-RingO-Ring
-
54504152006 Ball BearingBall Bearing
-
55504152587 ShimShim
-
56504152505 Sprocket 21 Teeth. 800RSprocket 21 Teeth. 800R
-
57250000012 Hex Castle Nut M20 X 1.5Hex Castle Nut M20 X 1.5
-
58371006300 Pin CotterPin Cotter
-
59504151932 Drive Chain Large, 74 Links. 800RDrive Chain Large, 74 Links. 800R
-
60504152238 45 Tooth Sprocket45 Tooth Sprocket
-
61415064300 Circlip, InteriorCirclip, Interior
-
62415046400 O-RingO-Ring
-
63504152471 Chaincase CoverChaincase Cover
-
64207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
65210263080 Hex Screw M6 X 30Hex Screw M6 X 30
-
66504151703 Filler Cap Ass'yFiller Cap Ass'y
-
67414969400 O-RingO-Ring
-
68413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
69414575600 Hair PinHair Pin
-
70504151921 Plug 1/8''-27Plug 1/8''-27
-
71504152460 CapCap
-
72504152005 Ball BearingBall Bearing
-
73504152649 ShimShim
