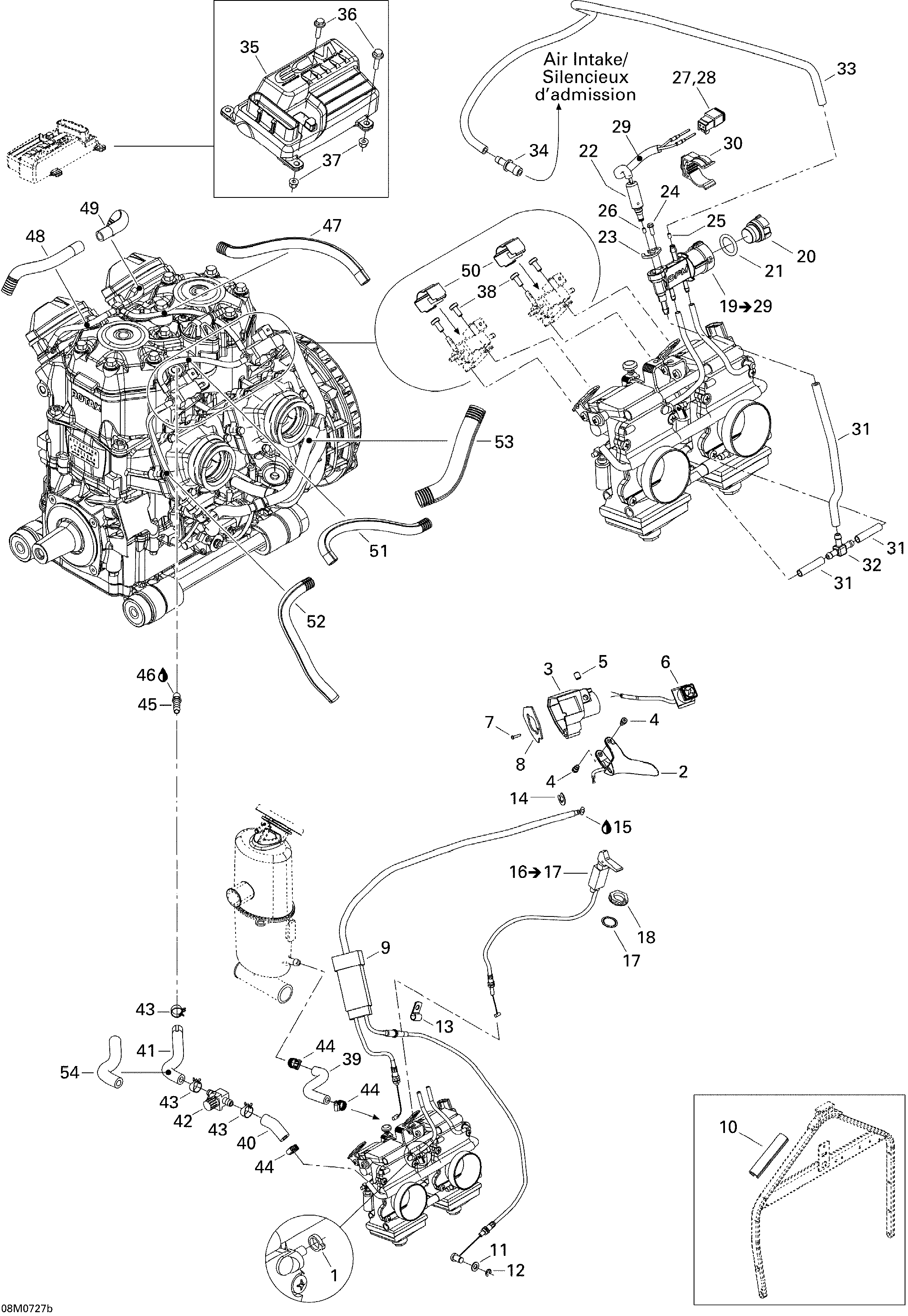

01- Engine 2, 800R для BRP Ski-Doo Summit Adrenaline 800R - 2007
-
№АртикулНазвание
-
1293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
2512060202 Throttle Handle Ass'yThrottle Handle Ass'y
-
3512060200 Throttle Handle HousingThrottle Handle Housing
-
4732601143 Flanged ScrewFlanged Screw
-
5414440800 Set Screw M8 X 10Set Screw M8 X 10
-
6515176091 Kill SwitchKill Switch
-
7250000265 Tapping Torx Head Screw M2.9X12Tapping Torx Head Screw M2.9X12
-
8512059507 PlatePlate
-
9512060088 Throttle CableThrottle Cable
-
10512059750 ProtectorProtector
-
11234081100 Flat Washer 8 mmFlat Washer 8 mm
-
12414753500 CirclipCirclip
-
13293750042 Tie ClampTie Clamp
-
14414274500 CirclipCirclip
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16512059266 Choke Cable. Includes 16 to 17Choke Cable. Includes 16 to 17
-
17394103300 Lock Washer, Interior TeethLock Washer, Interior Teeth
-
18512059094 Plastic NutPlastic Nut
-
19512060002 Pressure Manifold Ass'y. Includes 19 to 29Pressure Manifold Ass'y. Includes 19 to 29
-
20270600009 CapCap
-
21293300042 O-RingO-Ring
-
22515175701 Solenoid ValveSolenoid Valve
-
23415061600 Solenoid LockSolenoid Lock
-
24241140060 Screw K40 X 10Screw K40 X 10
-
26404161825 Starter JetStarter Jet
-
27515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
28515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
29515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
30512058919 SupportSupport
-
31415080200 Polyurethane HosePolyurethane Hose
-
32414729300 T-FittingT-Fitting
-
33415080200 Polyurethane HosePolyurethane Hose
-
34293710035 Straight FittingStraight Fitting
-
35512060226 Calibrated ModuleCalibrated Module
-
36207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
37233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
38208651241 Pan Head Phillips Screw M5 X 12Pan Head Phillips Screw M5 X 12
-
39509000171 Formed HoseFormed Hose
-
40509000407 Hose 8 mmHose 8 mm
-
41512060185 Formed HoseFormed Hose
-
42512059324 Valve 5/16''Valve 5/16''
-
43414655700 Spring ClampSpring Clamp
-
44293650170 Hose ClampHose Clamp
-
45512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
46293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
47409901700 Tubing 9 mmTubing 9 mm
-
48409901700 Tubing 9 mmTubing 9 mm
-
49409901700 Tubing 9 mmTubing 9 mm
-
50512059809 Heating Element BracketHeating Element Bracket
-
51409901700 Tubing 9 mmTubing 9 mm
-
52409901700 Tubing 9 mmTubing 9 mm
-
53409901800 Tubing 13 mmTubing 13 mm
-
54415080000 Tubing 16 mmTubing 16 mm
