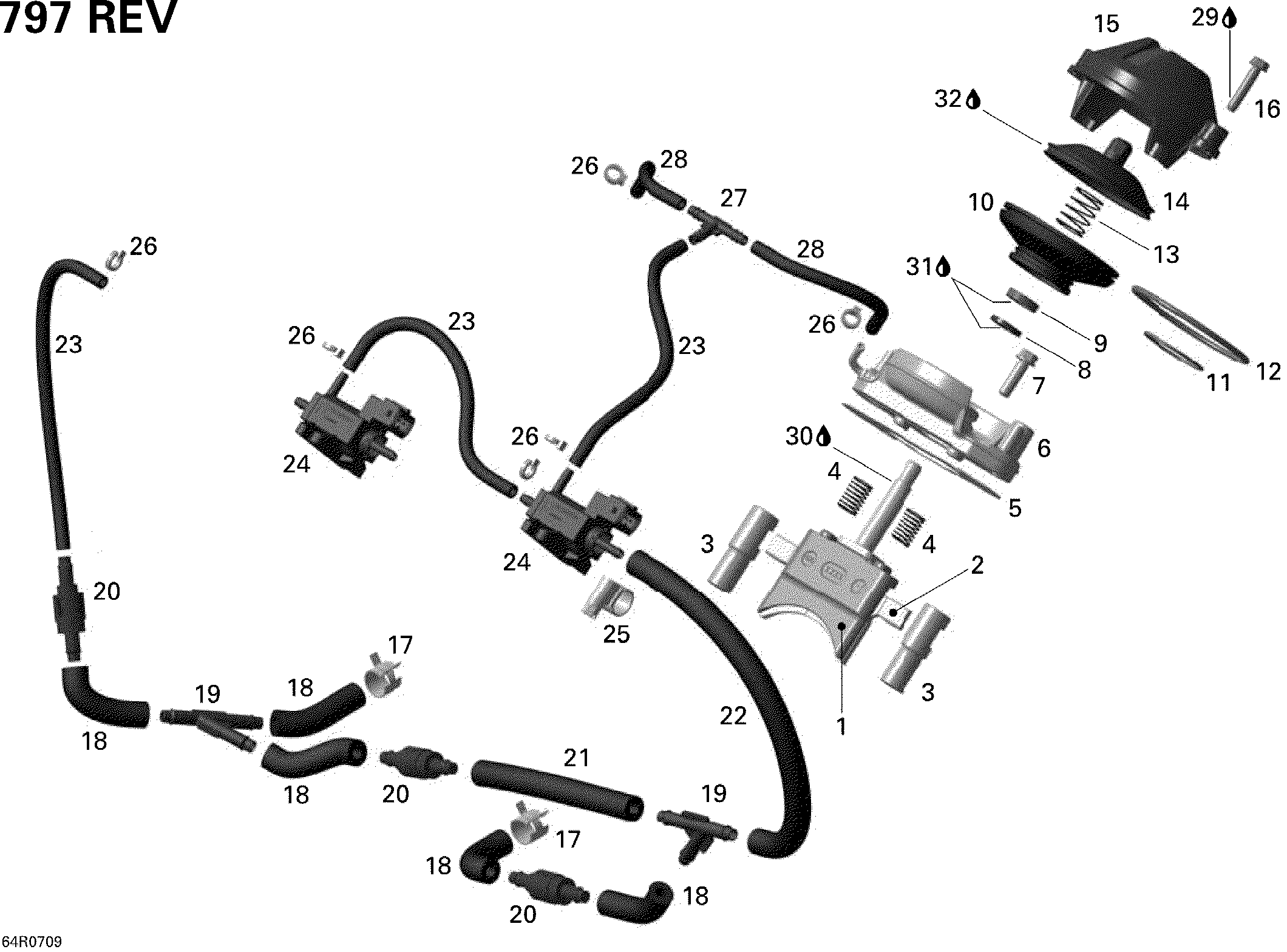

01- 3D Rave для BRP Ski-Doo Summit X - 2007
-
№АртикулНазвание
-
1420854900 Upper Exhaust ValveUpper Exhaust Valve
-
2420854905 Lower Exhaust ValveLower Exhaust Valve
-
3420854890 Exhaust ValveExhaust Valve
-
4420238554 SpringSpring
-
5420430030 GasketGasket
-
6420854887 Valve HousingValve Housing
-
7420440202 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420431380 Gasket RingGasket Ring
-
9420950730 Oil SealOil Seal
-
10420260724 BellowBellow
-
11420838255 Hose SpringHose Spring
-
12420939285 Hose SpringHose Spring
-
13420238555 SpringSpring
-
14420854444 Exhaust Valve PistonExhaust Valve Piston
-
15420812710 Rave CoverRave Cover
-
16420241270 Taptite Screw M5 X 25Taptite Screw M5 X 25
-
17420853510 ClampClamp
-
18420660561 High Pressure Air Hose 50 mmHigh Pressure Air Hose 50 mm
-
19420460635 Y-NippleY-Nipple
-
20420660545 Check ValveCheck Valve
-
21420660564 High Pressure Air Hose 100 mmHigh Pressure Air Hose 100 mm
-
22420660565 High Pressure Air Hose 220 mmHigh Pressure Air Hose 220 mm
-
23420660571 High Pressure Air Hose 180 mmHigh Pressure Air Hose 180 mm
-
24270600005 Solenoid ValveSolenoid Valve
-
25420851970 ClampClamp
-
26293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
27293710068 T-FittingT-Fitting
-
28420660576 High Pressure Air Hose 110 mmHigh Pressure Air Hose 110 mm
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
30420297433 Molykote G-N, 50 GMolykote G-N, 50 G
-
31413707000 Molykote 111, 150 GMolykote 111, 150 G
-
32420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
