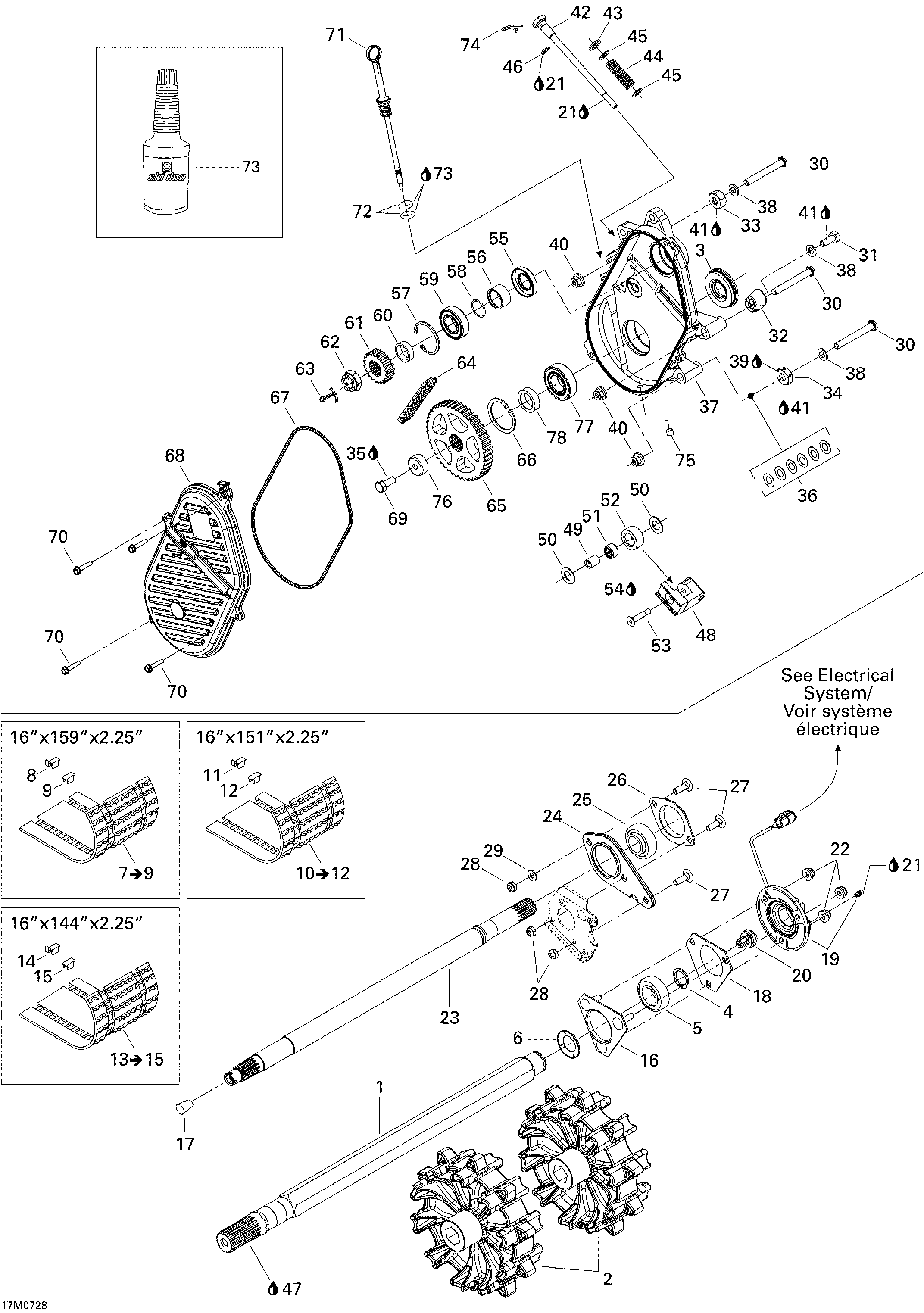

05- Drive System X для BRP Ski-Doo Summit X - 2007
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504152503 Double Sprocket, 9 TeethDouble Sprocket, 9 Teeth
-
3504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152640 Track 16'' X 159'' X 2.25'' Ass'y. Includes 7 to 9Track 16'' X 159'' X 2.25'' Ass'y. Includes 7 to 9
-
8415129222 GuideGuide
-
9504152652 CleatCleat
-
10504152641 Track 16'' X 151'' X 2.25'' Ass'y. Includes 10 to 12Track 16'' X 151'' X 2.25'' Ass'y. Includes 10 to 12
-
11415129222 GuideGuide
-
12504152652 CleatCleat
-
13504152642 Track 16'' X 144'' X 2.25'' Ass'y. Includes 13 to 15Track 16'' X 144'' X 2.25'' Ass'y. Includes 13 to 15
-
14415129222 GuideGuide
-
15504152652 CleatCleat
-
16504151860 Bearing HousingBearing Housing
-
17414784800 CorkCork
-
18501025000 FlangeFlange
-
19504152345 Rotation SensorRotation Sensor
-
20504152040 Magnetic AdaptorMagnetic Adaptor
-
21219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
22233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
23504152020 Counter ShaftCounter Shaft
-
24504151968 SpacerSpacer
-
25504152535 Ball BearingBall Bearing
-
26501026900 FlangeFlange
-
27207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
28232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
29234081410 Flat Washer 8 mmFlat Washer 8 mm
-
30250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
31207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
32504152252 SpacerSpacer
-
33504083800 SpacerSpacer
-
34504152237 SpacerSpacer
-
35293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
36504073700 WasherWasher
-
37504152482 ChaincaseChaincase
-
38503175800 WasherWasher
-
39293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
40233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
41293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
42504151946 Adjustment ScrewAdjustment Screw
-
43503189148 WasherWasher
-
44504151945 SpringSpring
-
45503189564 WasherWasher
-
46504151954 O-RingO-Ring
-
47219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
48504151940 Chain TensionerChain Tensioner
-
49504080200 SpacerSpacer
-
50504080300 WasherWasher
-
51405403000 Needle BearingNeedle Bearing
-
52414531300 RollerRoller
-
53732601144 ScrewScrew
-
54293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
55415049300 SealSeal
-
56507031500 SpacerSpacer
-
57371901700 CirclipCirclip
-
58414876700 O-RingO-Ring
-
59504152006 Ball BearingBall Bearing
-
60504152587 ShimShim
-
61504152752 Sprocket 19 Teeth. X (Track 159'')Sprocket 19 Teeth. X (Track 159'')
-
61504152505 Sprocket 21 Teeth. X (Track 151'')Sprocket 21 Teeth. X (Track 151'')
-
61504152505 Sprocket 21 Teeth. X (Track 144'')Sprocket 21 Teeth. X (Track 144'')
-
62250000012 Hex Castle Nut M20 X 1.5Hex Castle Nut M20 X 1.5
-
63371006300 Pin CotterPin Cotter
-
64504151932 Drive Chain Large, 74 Links. X & XRSDrive Chain Large, 74 Links. X & XRS
-
65504152238 45 Tooth Sprocket45 Tooth Sprocket
-
66415064300 Circlip, InteriorCirclip, Interior
-
67415046400 O-RingO-Ring
-
68504152471 Chaincase CoverChaincase Cover
-
69207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
70210263080 Hex Screw M6 X 30Hex Screw M6 X 30
-
71504151703 Filler Cap Ass'yFiller Cap Ass'y
-
72414969400 O-RingO-Ring
-
73413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
74414575600 Hair PinHair Pin
-
75504151921 Plug 1/8''-27Plug 1/8''-27
-
76504152460 CapCap
-
77504152005 Ball BearingBall Bearing
-
78504152649 ShimShim
