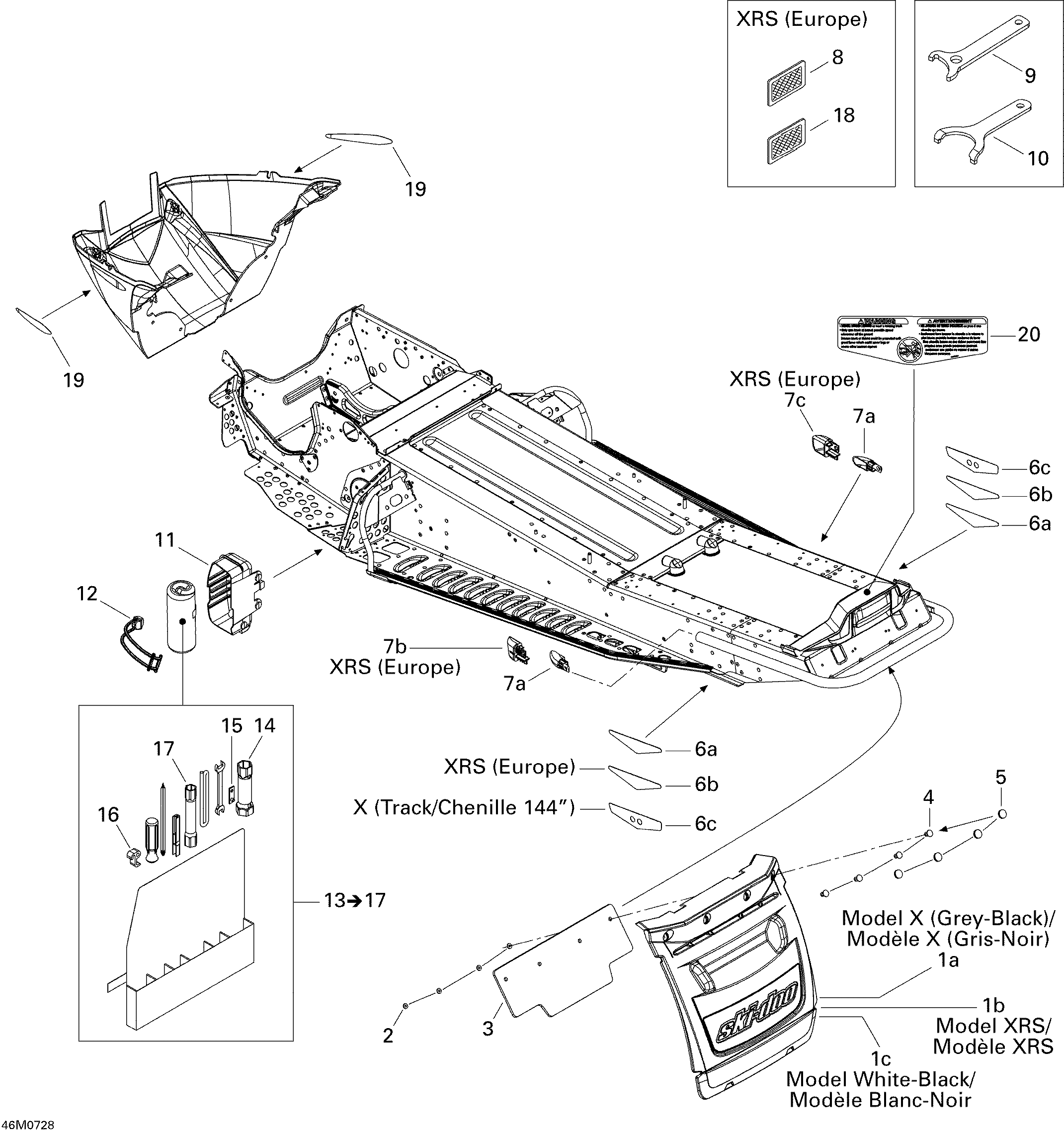

09- Utilities X для BRP Ski-Doo Summit X - 2007
-
№АртикулНазвание
-
1a520000495 Snow Guard. X (Grey-Black)Snow Guard. X (Grey-Black)
-
1c520000598 Snow Guard. X (White-Black)Snow Guard. X (White-Black)
-
2517225900 Flat WasherFlat Washer
-
3520000488 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6a520000237 Rear Reflector, RedRear Reflector, Red
-
6c520000382 Rear Reflector. X (Track 144'')Rear Reflector. X (Track 144'')
-
7A520000272 CapCap
-
9529032900 Adjustment WrenchAdjustment Wrench
-
10529035582 Adjustment WrenchAdjustment Wrench
-
11520000322 TrunkTrunk
-
12520000528 LatchLatch
-
13529000025 Tool Kit. Includes 13 to 17Tool Kit. Includes 13 to 17
-
14529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
15529024400 Rope AdaptorRope Adaptor
-
16529019400 Starter GripStarter Grip
-
17295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
19516001336 Front ReflectorFront Reflector
-
20516003034 Warning Label, Track SecurityWarning Label, Track Security
