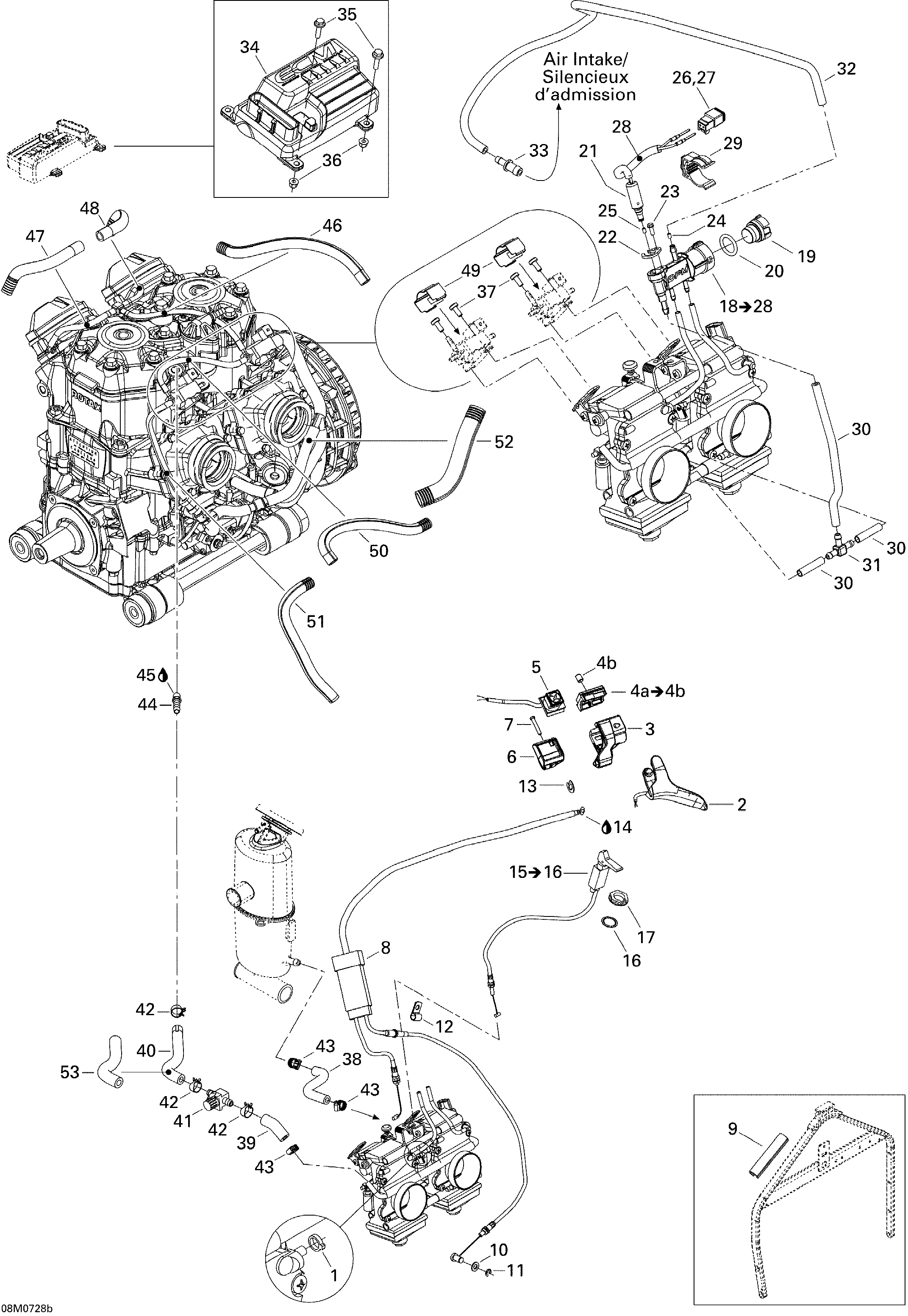

01- Engine 2 для BRP Ski-Doo Summit X - 2007
-
№АртикулНазвание
-
1293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
2512060219 Throttle Handle Ass'yThrottle Handle Ass'y
-
3512060197 Lower HousingLower Housing
-
4a512060198 Upper Housing. Includes 4a to 4bUpper Housing. Includes 4a to 4b
-
4b414440800 Set screw M8 X10Set screw M8 X10
-
5515176091 Kill SwitchKill Switch
-
6515176418 Kill Switch SupportKill Switch Support
-
7250000263 Torx Screw #8-18Torx Screw #8-18
-
8512060088 Throttle CableThrottle Cable
-
9512059750 ProtectorProtector
-
10234081100 Flat Washer 8 mmFlat Washer 8 mm
-
11414753500 CirclipCirclip
-
12293750042 Tie ClampTie Clamp
-
13414274500 CirclipCirclip
-
14293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
15512059266 Choke Cable. Includes 15 to 16Choke Cable. Includes 15 to 16
-
16394103300 Lock Washer, Interior TeethLock Washer, Interior Teeth
-
17512059094 Plastic NutPlastic Nut
-
18512060002 Pressure Manifold Ass'y. Includes 18 to 28Pressure Manifold Ass'y. Includes 18 to 28
-
19270600009 CapCap
-
20293300042 O-RingO-Ring
-
21515175701 Solenoid ValveSolenoid Valve
-
22415061600 Solenoid LockSolenoid Lock
-
23241140060 Screw K40 X 10Screw K40 X 10
-
25404161825 Starter JetStarter Jet
-
26515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
27515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
28515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
29512058919 SupportSupport
-
30415080200 Polyurethane HosePolyurethane Hose
-
31414729300 T-FittingT-Fitting
-
32415080200 Polyurethane HosePolyurethane Hose
-
33293710035 Straight FittingStraight Fitting
-
34512060226 Calibrated ModuleCalibrated Module
-
35207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
36233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
37208651241 Pan Head Phillips Screw M5 X 12Pan Head Phillips Screw M5 X 12
-
38509000171 Formed HoseFormed Hose
-
39509000407 Hose 8 mmHose 8 mm
-
40512060185 Formed HoseFormed Hose
-
41512059324 Valve 5/16''Valve 5/16''
-
42414655700 Spring ClampSpring Clamp
-
43293650170 Hose ClampHose Clamp
-
44512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
45293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
46409901700 Tubing 9 mmTubing 9 mm
-
47409901700 Tubing 9 mmTubing 9 mm
-
48409901700 Tubing 9 mmTubing 9 mm
-
49512059809 Heating Element BracketHeating Element Bracket
-
50409901700 Tubing 9 mmTubing 9 mm
-
51409901700 Tubing 9 mmTubing 9 mm
-
52409901800 Tubing 13 mmTubing 13 mm
-
53415080000 Tubing 16 mmTubing 16 mm
