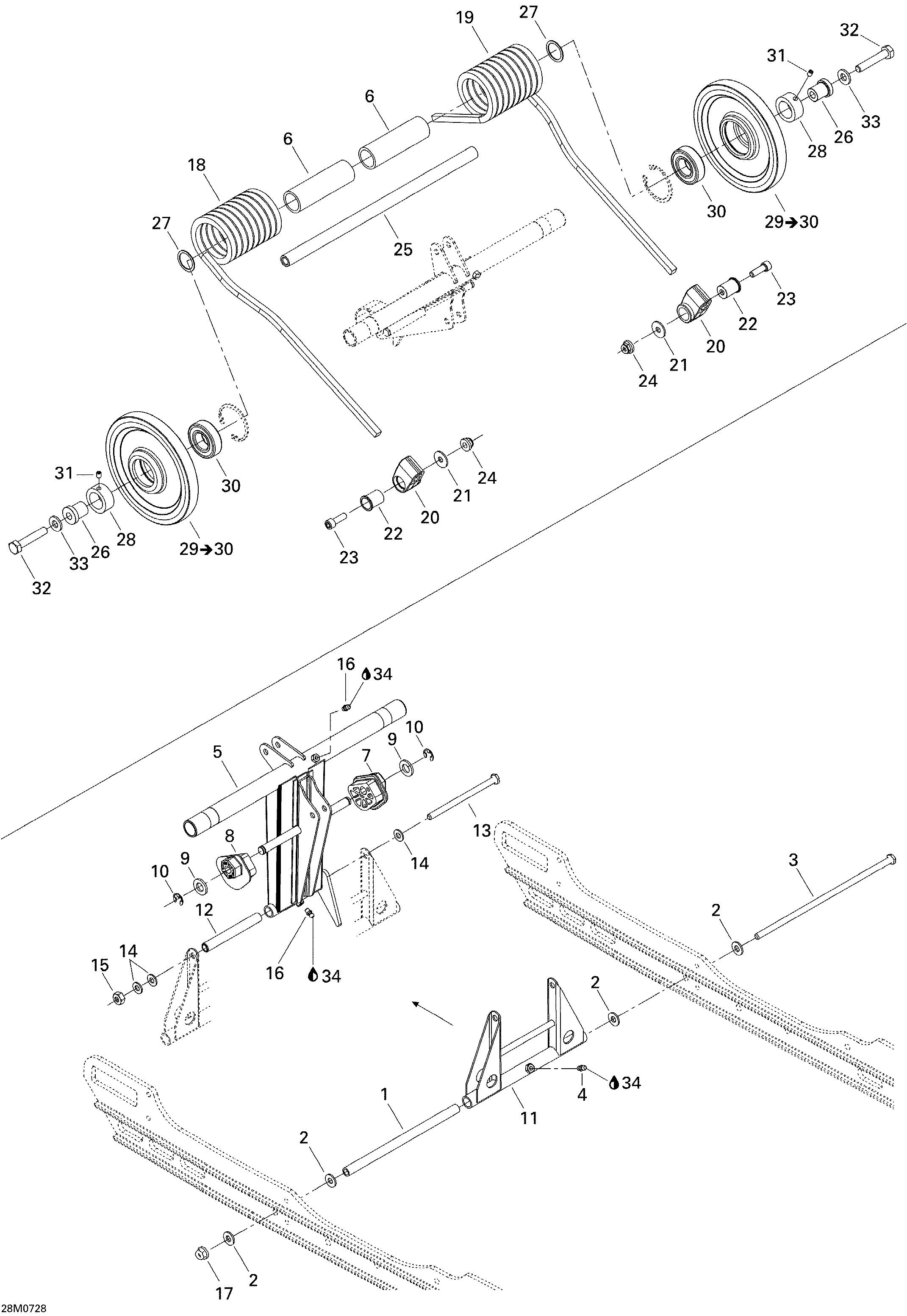

08- Rear Arm для BRP Ski-Doo Summit X - 2007
-
№АртикулНазвание
-
1503189156 Pivot Arm AxlePivot Arm Axle
-
2503189157 WasherWasher
-
3732601198 Long Bolt M8Long Bolt M8
-
4408200700 Grease FittingGrease Fitting
-
5503191057 Rear ArmRear Arm
-
6503190333 BushingBushing
-
7503190023 LH Cam AdjusterLH Cam Adjuster
-
8503190022 RH Cam AdjusterRH Cam Adjuster
-
9503189148 WasherWasher
-
10293370013 E-CirclipE-Circlip
-
11503191372 Pivot ArmPivot Arm
-
12503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
13732601197 Short Bolt M8Short Bolt M8
-
14234081410 Flat Washer 8 mmFlat Washer 8 mm
-
15232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
16408200700 Grease FittingGrease Fitting
-
17233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
18503190773 RH Spring, SquareRH Spring, Square
-
19503190775 LH Spring, SquareLH Spring, Square
-
20503191539 Spring SupportSpring Support
-
21234082410 Flat Washer 8 mmFlat Washer 8 mm
-
22503190754 Retainer CushionRetainer Cushion
-
23205082544 Socket Screw M8 X 25Socket Screw M8 X 25
-
24233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
25503190387 ShaftShaft
-
26503190422 BushingBushing
-
27503190328 WasherWasher
-
28503168800 Retaining RingRetaining Ring
-
29503191359 Wheel 165. Includes 29 to 30Wheel 165. Includes 29 to 30
-
30503191149 Ball BearingBall Bearing
-
31206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
32207205544 Hex Screw M10 X 55, Scotch GripHex Screw M10 X 55, Scotch Grip
-
33732900049 WasherWasher
-
34219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
