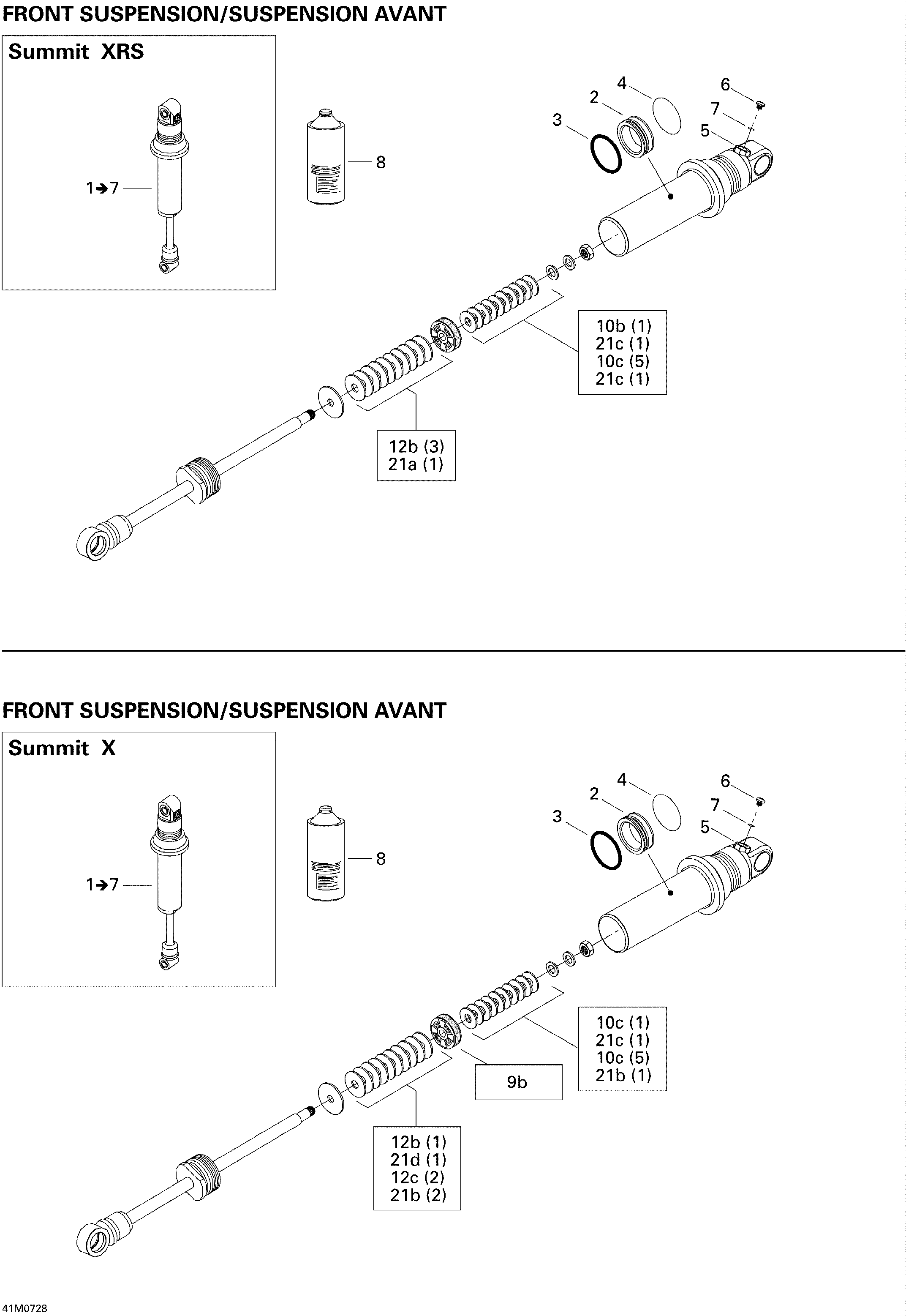

07- Take Apart Shock, Front X для BRP Ski-Doo Summit X - 2007
-
№АртикулНазвание
-
1505071457 Front Shock. Includes 1 to 7, XFront Shock. Includes 1 to 7, X
-
2503189309 Free PistonFree Piston
-
3414888312 O-RingO-Ring
-
4503189308 Piston RingPiston Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7505070400 O-RingO-Ring
-
8293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
9a414888304 Piston, C36Piston, C36
-
9c414888305 Piston, 2 X 0.3-2, C36Piston, 2 X 0.3-2, C36
-
9e414888306 Piston, 2 X 0.3-4, C36Piston, 2 X 0.3-4, C36
-
9g414888307 Piston, 2 X 0.3-6, C36Piston, 2 X 0.3-6, C36
-
10a415039100 Leaf Valve O30 X 0.254, C36Leaf Valve O30 X 0.254, C36
-
10b414888318 Leaf Valve O30 X 0.203, C36Leaf Valve O30 X 0.203, C36
-
10c414888319 Leaf Valve O30 X 0.152, C36Leaf Valve O30 X 0.152, C36
-
11b414888320 Leaf Valve O28 X 0.203, C36Leaf Valve O28 X 0.203, C36
-
11c414888321 Leaf Valve O28 X 0.152, C36Leaf Valve O28 X 0.152, C36
-
12a415039000 Leaf Valve O26 X 0.254, C36Leaf Valve O26 X 0.254, C36
-
12b414888322 Leaf Valve O26 X 0.203, C36Leaf Valve O26 X 0.203, C36
-
12c414888323 Leaf Valve O26 X 0.152, C36Leaf Valve O26 X 0.152, C36
-
14b414888324 Leaf Valve O22 X 0.203, C36Leaf Valve O22 X 0.203, C36
-
14c414888325 Leaf Valve O22 X 0.152, C36Leaf Valve O22 X 0.152, C36
-
15d414888340 Leaf Valve O21 X 0.114, C36Leaf Valve O21 X 0.114, C36
-
16b414888326 Leaf Valve O20 X 0.203, C36Leaf Valve O20 X 0.203, C36
-
16c414888327 Leaf Valve O20 X 0.152, C36Leaf Valve O20 X 0.152, C36
-
16d414888328 Leaf Valve O20 X 0.114, C36Leaf Valve O20 X 0.114, C36
-
18b414888329 Leaf Valve O18 X 0.203, C36Leaf Valve O18 X 0.203, C36
-
18c414888330 Leaf Valve O18 X 0.152, C36Leaf Valve O18 X 0.152, C36
-
20a414888331 Leaf Valve O16 X 0.254, C36Leaf Valve O16 X 0.254, C36
-
20b414888332 Leaf Valve O16 X 0.203, C36Leaf Valve O16 X 0.203, C36
-
20c414888333 Leaf Valve O16 X 0.152, C36Leaf Valve O16 X 0.152, C36
-
20d415038900 Leaf Valve O16 X 0.114, C36Leaf Valve O16 X 0.114, C36
-
21a414888334 Leaf Valve O15 X 0.254, C36Leaf Valve O15 X 0.254, C36
-
21b414888335 Leaf Valve O15 X 0.203, C36Leaf Valve O15 X 0.203, C36
-
21c414888336 Leaf Valve O15 X 0.152, C36Leaf Valve O15 X 0.152, C36
-
21d414888337 Leaf Valve O15 X 0.114, C36Leaf Valve O15 X 0.114, C36
-
24a503189538 Leaf Valve O12 X 0.254, C36Leaf Valve O12 X 0.254, C36
-
24b414888338 Leaf Valve O12 X 0.203, C36Leaf Valve O12 X 0.203, C36
-
24c414888339 Leaf Valve O12 X 0.152, C36Leaf Valve O12 X 0.152, C36
-
24d415038800 Leaf Valve O12 X 0.114, C36Leaf Valve O12 X 0.114, C36
