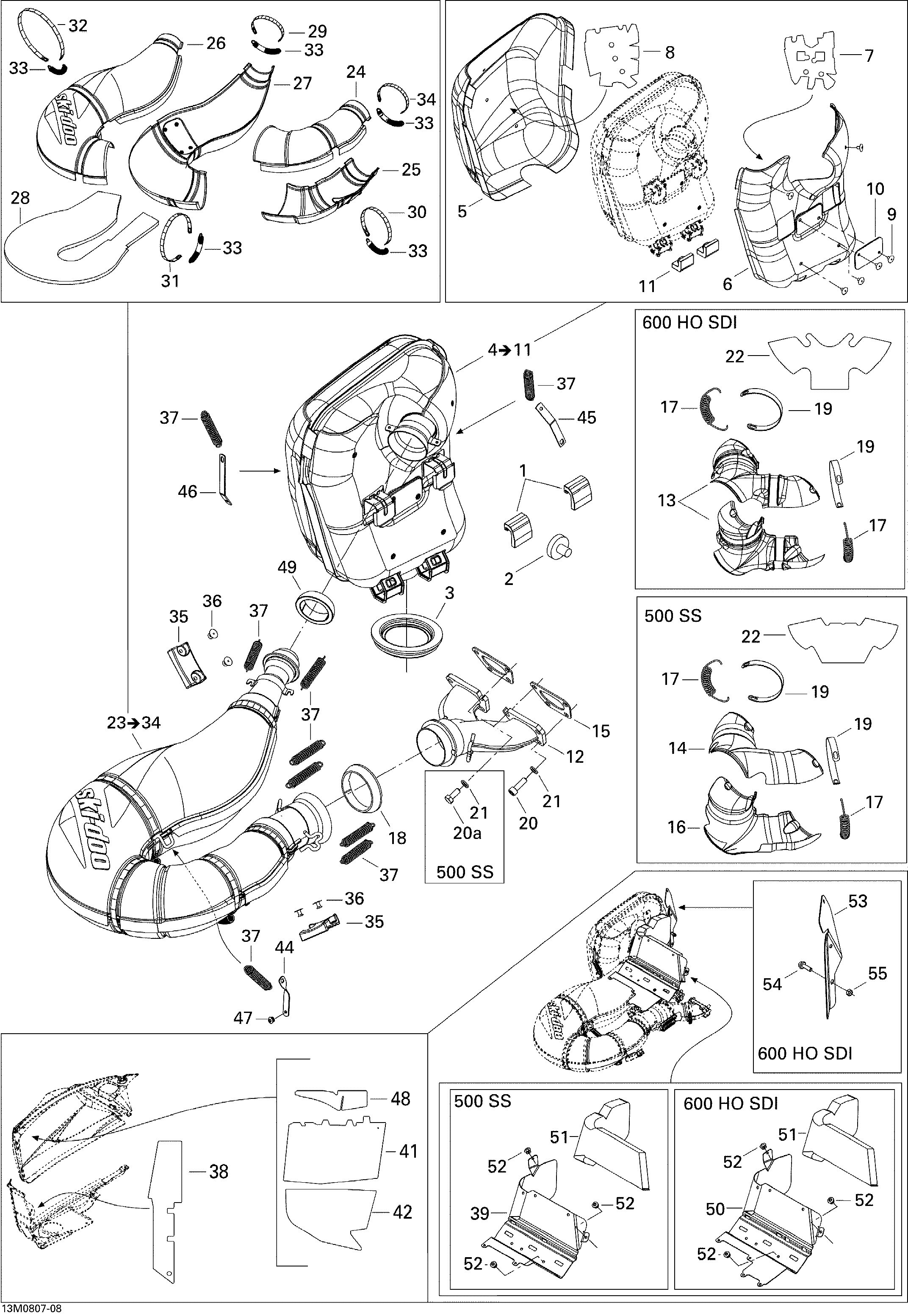

01- Exhaust System для BRP Ski-Doo GTX SPORT 500SS - 2008
-
№АртикулНазвание
-
1514053372 Upper StopperUpper Stopper
-
2514053654 Rubber BumperRubber Bumper
-
3514054240 Exhaust GrommetExhaust Grommet
-
4514054121 Muffler Ass'y. Includes 4 to 11Muffler Ass'y. Includes 4 to 11
-
5514054122 RH Heat ShieldRH Heat Shield
-
6514053585 LH Heat ShieldLH Heat Shield
-
7514053590 LH Insulating WoolLH Insulating Wool
-
8514053589 RH Insulating WoolRH Insulating Wool
-
9390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
10514053429 ReinforcementReinforcement
-
11514054223 Lower StopperLower Stopper
-
12420673131 Exhaust ManifoldExhaust Manifold
-
14514053831 Upper Enveloppe, exhaust ManifoldUpper Enveloppe, exhaust Manifold
-
15420931610 GasketGasket
-
16514053830 Lower Enveloppe, exhaust ManifoldLower Enveloppe, exhaust Manifold
-
17514053643 SpringSpring
-
18514053487 Exhaust GasketExhaust Gasket
-
19514053603 Retaining StrapRetaining Strap
-
20205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
20a207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
21514053837 WasherWasher
-
22514053284 Insulating WoolInsulating Wool
-
23514053732 Tuned Pipe Ass'y. Includes 23 to 34Tuned Pipe Ass'y. Includes 23 to 34
-
24514053609 Upper Front Half EnvelopeUpper Front Half Envelope
-
25514053610 Lower Front Half EnvelopeLower Front Half Envelope
-
26514053612 Upper Rear Half EnvelopeUpper Rear Half Envelope
-
27514053613 Lower Rear Half EnvelopeLower Rear Half Envelope
-
28514053584 Insulating WoolInsulating Wool
-
29514053437 Retaining StrapRetaining Strap
-
30514053500 Retaining StrapRetaining Strap
-
31514053534 Retaining StrapRetaining Strap
-
32514053535 Retaining StrapRetaining Strap
-
33514053643 SpringSpring
-
34514053536 Retaining StrapRetaining Strap
-
35514053352 BumperBumper
-
36293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
37415107100 SpringSpring
-
38514053560 Reflective SheetReflective Sheet
-
39514053956 Acoustic PlateAcoustic Plate
-
41514054350 Reflective SheetReflective Sheet
-
42514053562 Reflective SheetReflective Sheet
-
44514053955 Spring BracketSpring Bracket
-
45514053725 Spring BracketSpring Bracket
-
46514053393 Spring BracketSpring Bracket
-
47293150103 Pop RivetPop Rivet
-
48514053673 Reflective SheetReflective Sheet
-
49514053812 Exhaust GasketExhaust Gasket
-
51514053967 Acoustic FoamAcoustic Foam
-
52390402200 Pop Rivet 3/16''Pop Rivet 3/16''
