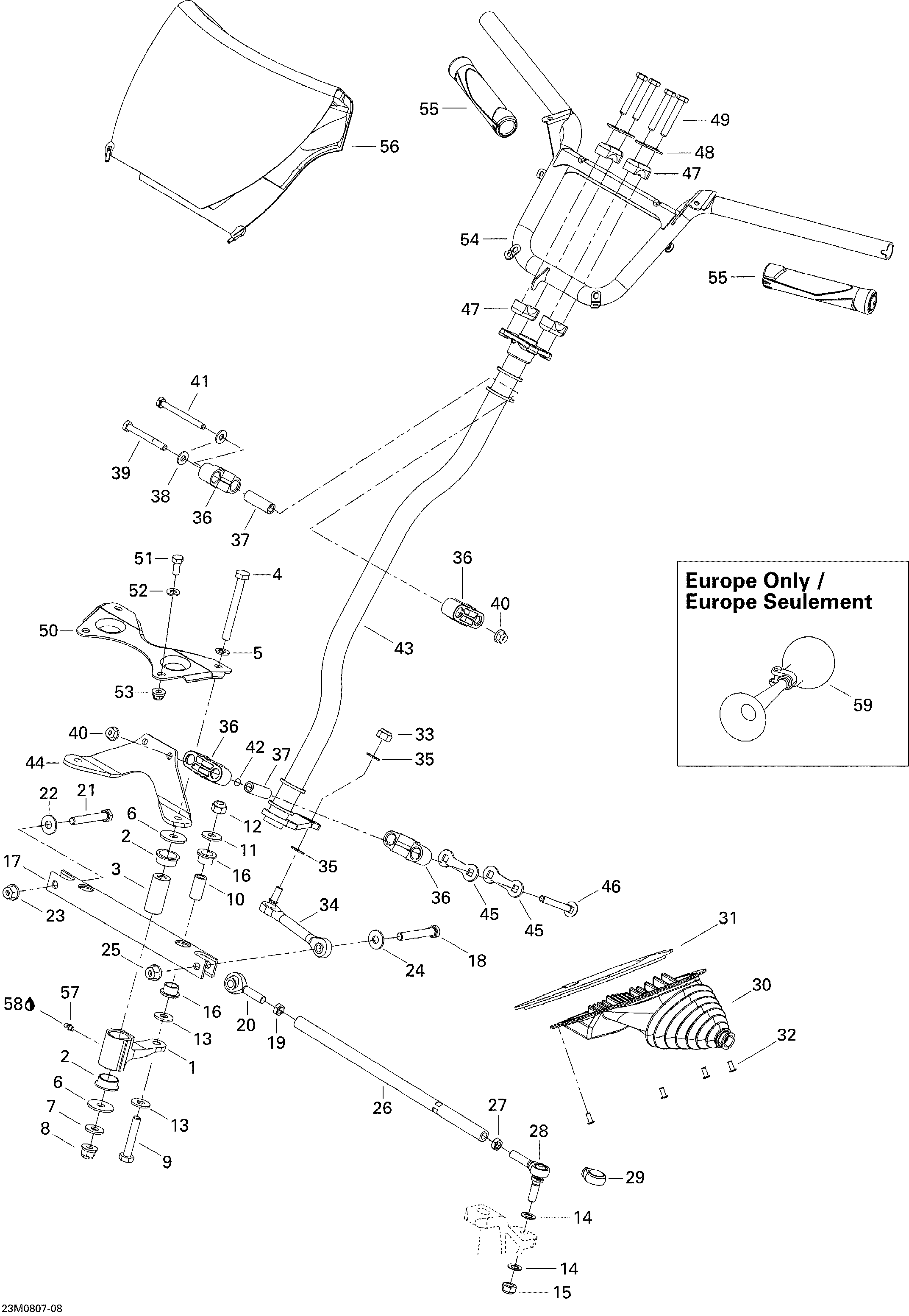

07- Steering для BRP Ski-Doo GTX SPORT 500SS - 2008
-
№АртикулНазвание
-
1506152124 RH Swivel ArmRH Swivel Arm
-
1506152123 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex. Screw M10 X 90Hex. Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Flanged Nut M10Flanged Nut M10
-
9207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13250200032 WasherWasher
-
14503175800 WasherWasher
-
15250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
16503191555 Swivel BushingSwivel Bushing
-
17506151328 Swivel BarSwivel Bar
-
18207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
19250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
20506151810 LH Ball JointLH Ball Joint
-
21207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
22224002251 Flat WasherFlat Washer
-
23233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
24224002251 Flat WasherFlat Washer
-
25233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
26506151340 Tie-RodTie-Rod
-
27732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
28506152212 Ball JointBall Joint
-
29506151650 Protection CapProtection Cap
-
30506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
30506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
31506151356 RH Retainer RingRH Retainer Ring
-
31506151357 LH Retainer RingLH Retainer Ring
-
32390909100 Avex RivetAvex Rivet
-
33250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
34506151621 Ball Joint, DoubleBall Joint, Double
-
35503175800 WasherWasher
-
36506150400 Housing HalfHousing Half
-
37506150500 Housing BushingHousing Bushing
-
38503189157 WasherWasher
-
39207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
40233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
41207088044 Hex. Screw M8 X 80Hex. Screw M8 X 80
-
42506151140 O-RingO-Ring
-
43506152135 Main TubeMain Tube
-
44506151330 Steering Shaft SupportSteering Shaft Support
-
45506150600 Stopper PlateStopper Plate
-
46207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
47506151622 Steering SupportSteering Support
-
48506151196 ReinforcementReinforcement
-
49250000082 Hex. Screw With Nylon M8 X 50Hex. Screw With Nylon M8 X 50
-
50506151536 Pivot SupportPivot Support
-
51207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
52234081410 Flat Washer 8 mmFlat Washer 8 mm
-
53233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
54506152067 Handle BarHandle Bar
-
55506152238 Handle GripHandle Grip
-
56506152144 Steering PadSteering Pad
-
57408200700 Grease FittingGrease Fitting
-
58219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
