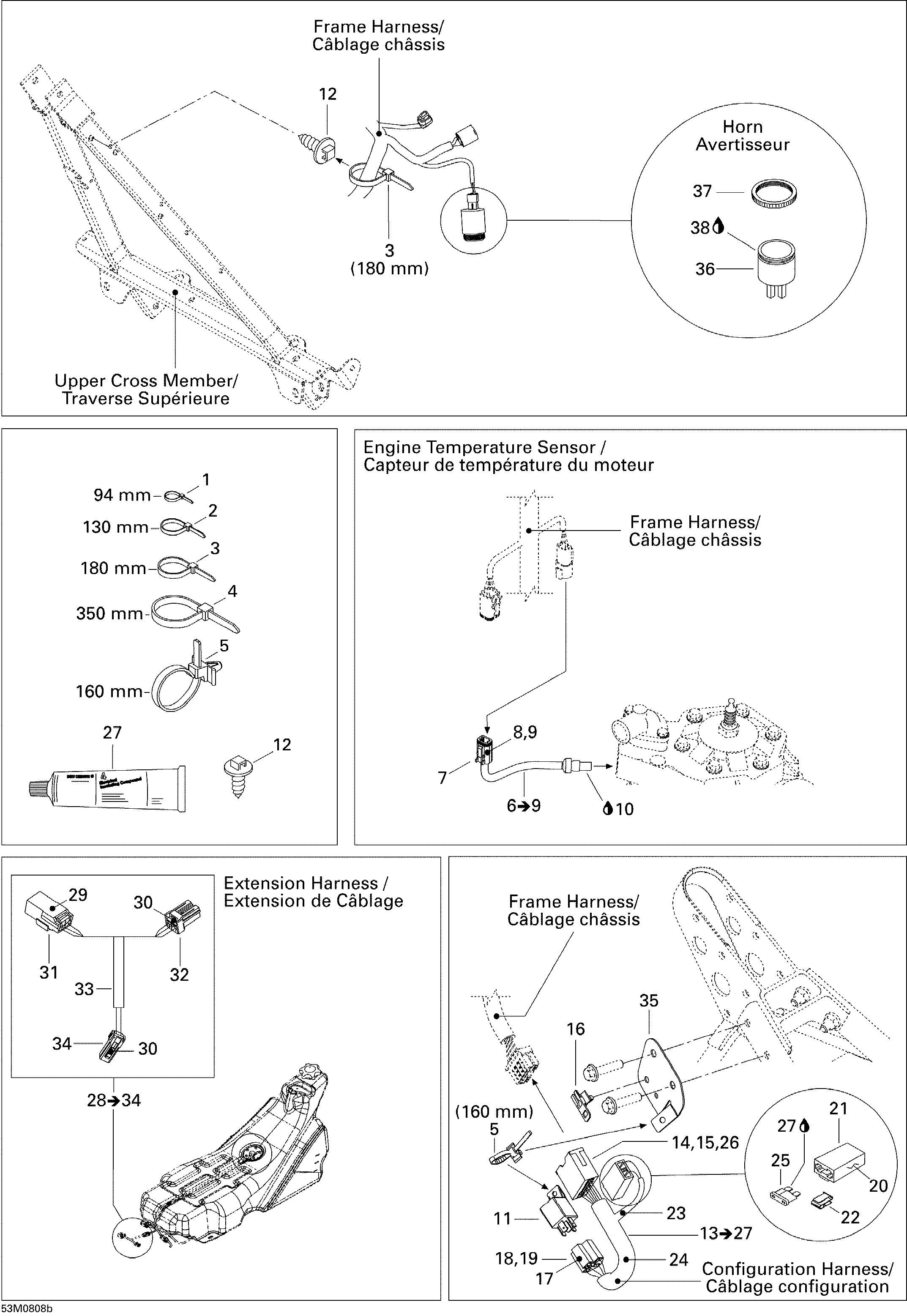

10- Electrical Accessories 2 для BRP Ski-Doo GTX SPORT 500SS - 2008
-
№АртикулНазвание
-
1293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
2293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
5293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
6515176043 Temperature Sensor. Includes 6 to 9Temperature Sensor. Includes 6 to 9
-
7278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
8278000632 Female TerminalFemale Terminal
-
9515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
10293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
11410113200 RelayRelay
-
12293730018 Mount DartMount Dart
-
13515175721 Configuration Harness Ass'y. Includes 13 to 27Configuration Harness Ass'y. Includes 13 to 27
-
14515175232 Male TerminalMale Terminal
-
15515175273 Male TerminalMale Terminal
-
16515175283 Housing SupportHousing Support
-
17409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
18561503100 Female TerminalFemale Terminal
-
19561503100 Female TerminalFemale Terminal
-
20409011600 Female TerminalFemale Terminal
-
21409004000 Fuse HolderFuse Holder
-
22409014200 ClipClip
-
23515175442 Tubing 6 mmTubing 6 mm
-
24409901800 Tubing 13 mmTubing 13 mm
-
25278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
26515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
27293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
28515176171 Extension Harness. Includes 28 to 34Extension Harness. Includes 28 to 34
-
29515175232 Male TerminalMale Terminal
-
30515175231 Female TerminalFemale Terminal
-
31515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
32515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
33515175442 Tubing 6 mmTubing 6 mm
-
34515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
35515176020 Harness SupportHarness Support
-
36515176035 HornHorn
-
37414805101 Plastic NutPlastic Nut
-
38296000309 Sealant Silicone, ClearSealant Silicone, Clear
