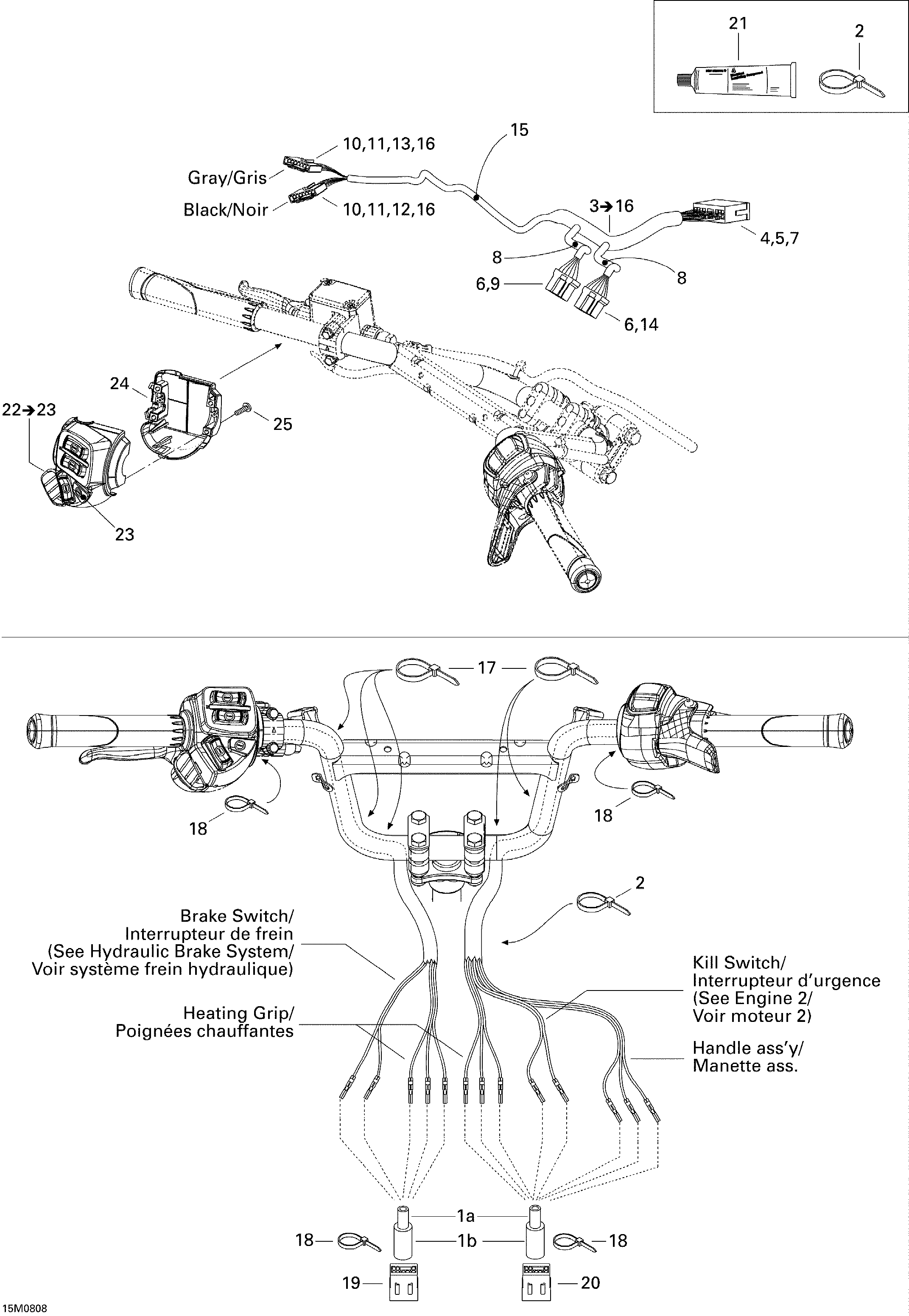

10- Steering Wiring Harness для BRP Ski-Doo GTX SPORT 500SS - 2008
-
№АртикулНазвание
-
1a409902000 Tubing, 12 mmTubing, 12 mm
-
1b515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3515176309 Steering Wiring Harness. Includes 3 to 16Steering Wiring Harness. Includes 3 to 16
-
4515175232 Male TerminalMale Terminal
-
5515175273 Male TerminalMale Terminal
-
6515175231 Female TerminalFemale Terminal
-
7515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
8415079900 Tubing 10 mmTubing 10 mm
-
9515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
10515175808 Female TerminalFemale Terminal
-
11515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
12515175807 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
13515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
14515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
15515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
16515175941 Female TerminalFemale Terminal
-
17414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
18293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
19515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
20515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
21293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
22515176062 LH Switch Housing. Includes 22 to 23LH Switch Housing. Includes 22 to 23
-
23515176088 Start/RER ButtonStart/RER Button
-
24515175926 Housing Switch PlateHousing Switch Plate
-
25250000263 Torx Screw #8-18Torx Screw #8-18
