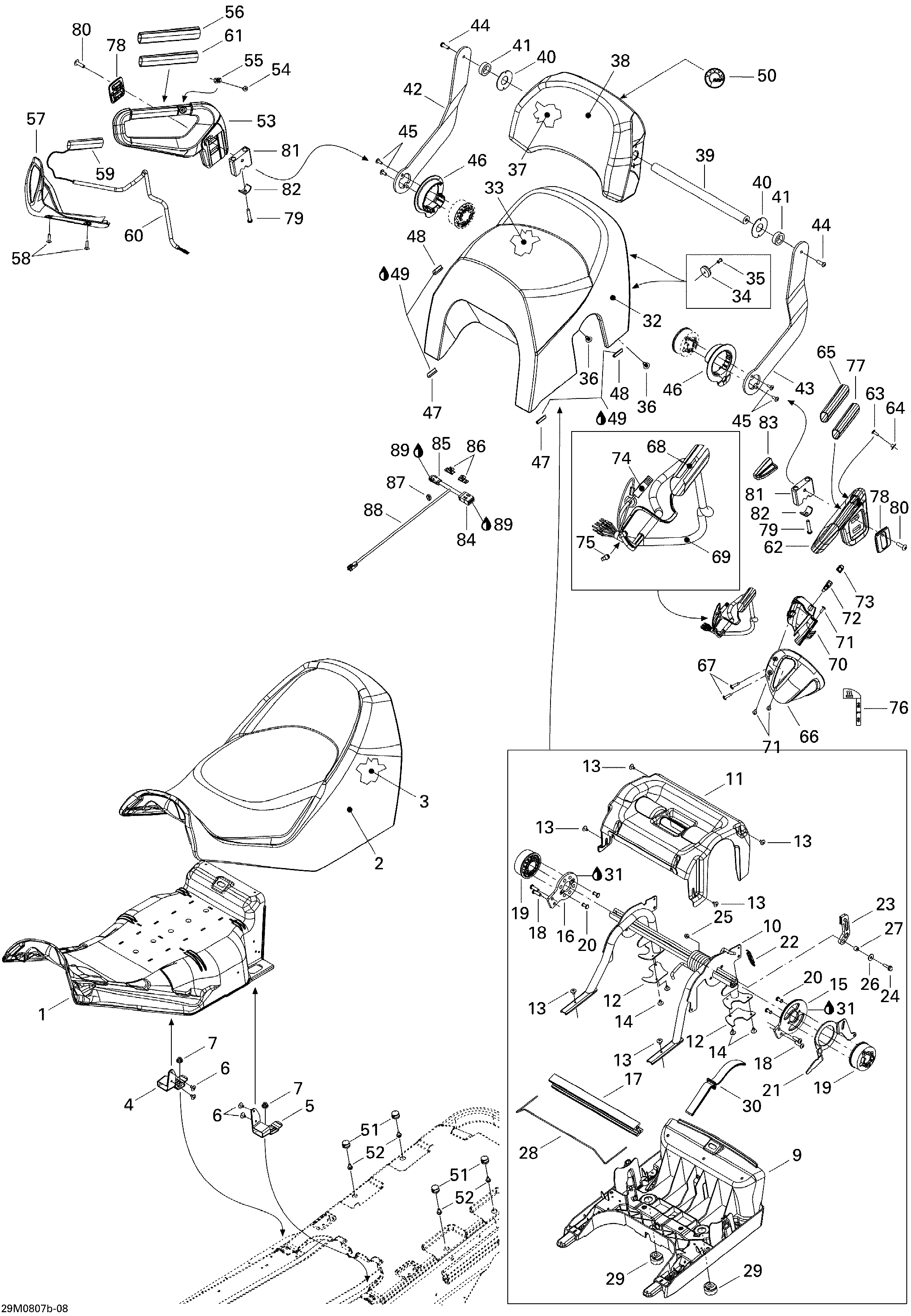

09- Seat для BRP Ski-Doo GTX SPORT 500SS - 2008
-
№АртикулНазвание
-
1510004353 Front Seat BaseFront Seat Base
-
2510004637 Seat Cover, BlackSeat Cover, Black
-
3510004355 Front Seat FoamFront Seat Foam
-
4510004463 RH Fixation Plate, BlackRH Fixation Plate, Black
-
5510004464 LH Fixation Plate, BlackLH Fixation Plate, Black
-
6293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9510004433 Seat BaseSeat Base
-
10510004381 SupportSupport
-
11510004423 Foam SupportFoam Support
-
12510004500 Wear PlateWear Plate
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
15510004391 SprocketSprocket
-
16510004393 Link PlateLink Plate
-
17510004394 Link TubeLink Tube
-
18205982586 Socket Head Screw S.grip, M8x1.25x25Socket Head Screw S.grip, M8x1.25x25
-
19510004390 SpacerSpacer
-
20293150129 Steel RivetSteel Rivet
-
21510004385 Handle, BlackHandle, Black
-
22510004395 Handle SpringHandle Spring
-
23510004392 Adjustement PivotAdjustement Pivot
-
24207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26224061201 Flat WasherFlat Washer
-
27510004425 BushingBushing
-
28510004421 Anchor SpringAnchor Spring
-
29708000323 Rubber BumperRubber Bumper
-
30510004495 BeltBelt
-
31293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
32510004555 Rear Seat Cover, Black B-160Rear Seat Cover, Black B-160
-
33510004358 Rear Seat FoamRear Seat Foam
-
34415018100 Rubber StopperRubber Stopper
-
35390400700 Pop Rivet 1/8'', BlackPop Rivet 1/8'', Black
-
36293730010 Dart, BlackDart, Black
-
37510004365 Backrest FoamBackrest Foam
-
38510004645 Backrest Cover, BlackBackrest Cover, Black
-
39510004377 Upper Backrest AxleUpper Backrest Axle
-
40510004379 WasherWasher
-
41510004378 Rubber ShimRubber Shim
-
42510004373 RH Arm, BlackRH Arm, Black
-
43510004375 LH Arm, BlackLH Arm, Black
-
44205982586 Socket Head Screw S.grip, M8x1.25x25Socket Head Screw S.grip, M8x1.25x25
-
45250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
46510004384 SpacerSpacer
-
47510004610 Front Seat CornerFront Seat Corner
-
48510004611 Rear Seat CornerRear Seat Corner
-
49413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
50219902477 Brp Logo, VinylBrp Logo, Vinyl
-
51510004676 Seat StudSeat Stud
-
52207561044 Hex. Flanged Screw S.grip M6 X 10Hex. Flanged Screw S.grip M6 X 10
-
53510004948 RH HandleRH Handle
-
54250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
55293100003 Nut M6Nut M6
-
56510004449 Handle GripHandle Grip
-
57510004415 RH DeflectorRH Deflector
-
58250000199 Screw 25mmScrew 25mm
-
59515176393 HeaterHeater
-
60515175506 TubingTubing
-
61510004709 Handle ReinforforcementHandle Reinforforcement
-
62510004947 LH HandleLH Handle
-
63250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
64293100003 Nut M6Nut M6
-
65510004449 Handle GripHandle Grip
-
66510004416 LH DeflectorLH Deflector
-
67250000199 Screw 25mmScrew 25mm
-
68515176393 HeaterHeater
-
69515175506 TubingTubing
-
70510004566 Switch HousingSwitch Housing
-
71250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
72510004413 Rocker SwitchRocker Switch
-
73510004414 Protector SwitchProtector Switch
-
74515176241 LH Handle HarnessLH Handle Harness
-
75414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
76516002835 Handle Heater DecalHandle Heater Decal
-
77510004709 Handle ReinforforcementHandle Reinforforcement
-
78510004405 MouldingMoulding
-
79250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
80250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
81510004530 Handle LinkHandle Link
-
82510004565 Handle ClampHandle Clamp
-
83510004419 GripGrip
-
84515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
85515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
86515175283 Housing SupportHousing Support
-
87414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
88515176170 Seat HarnessSeat Harness
-
89293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
