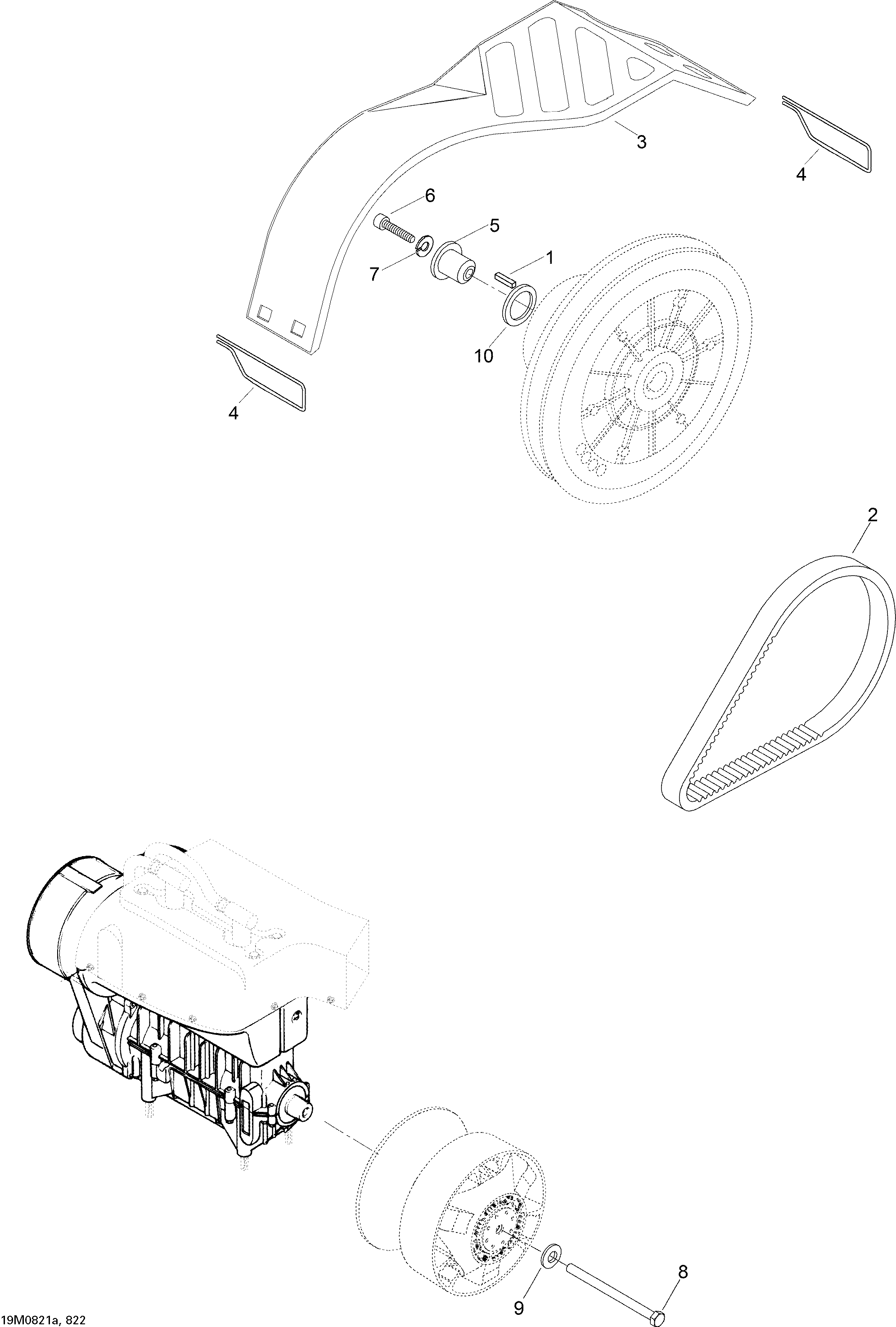

05- Pulley System WT 550F для BRP Ski-Doo Skandic WT 550F - 2008
-
№АртикулНазвание
-
1M418763 KeyKey
-
2605348425 Drive BeltDrive Belt
-
3M5142660 Belt GuardBelt Guard
-
4M5442726 PinPin
-
5M5443201 Shaft ExtensionShaft Extension
-
6M40286 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
7234181401 Lock Washer 8 mmLock Washer 8 mm
-
8417113800 BoltBolt
-
9M20090 Conical Spring WasherConical Spring Washer
-
10M3125351 ShimShim
