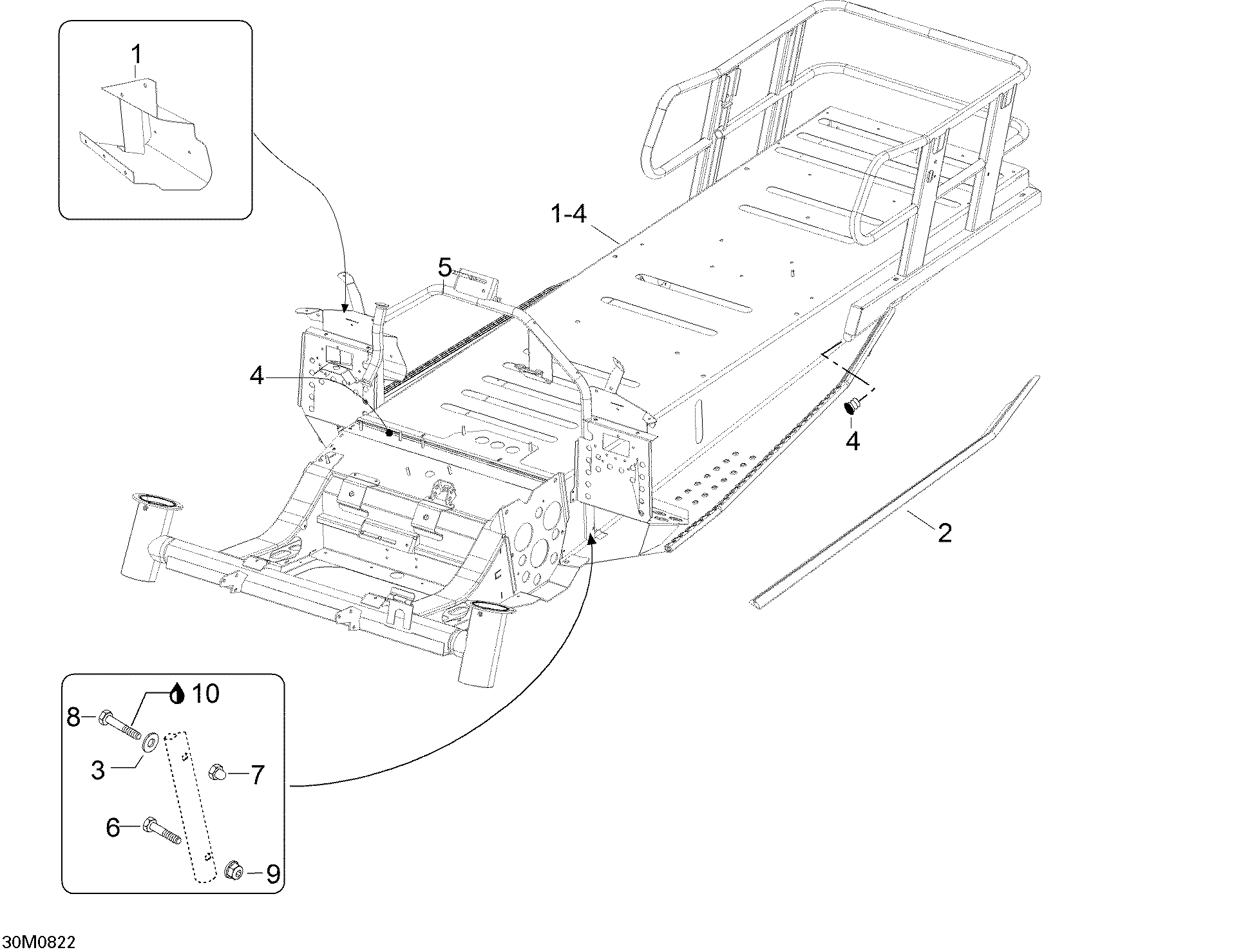

09- Frame WT 550F для BRP Ski-Doo Skandic WT 550F - 2008
-
№АртикулНазвание
-
—605154831 Frame Ass'y. Includes 1 to 4Frame Ass'y. Includes 1 to 4
-
1605350839 RH Toe RestRH Toe Rest
-
1605350840 LH Toe RestLH Toe Rest
-
2605255625 LH ReinforcementLH Reinforcement
-
2605255626 RH ReinforcementRH Reinforcement
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4M28210 PlugPlug
-
5605155568 Welded Steering SupportWelded Steering Support
-
6M40003 Hex. ScrewHex. Screw
-
7232061414 Hex. Nut M6Hex. Nut M6
-
8207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
9M33200 Nut M6Nut M6
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
