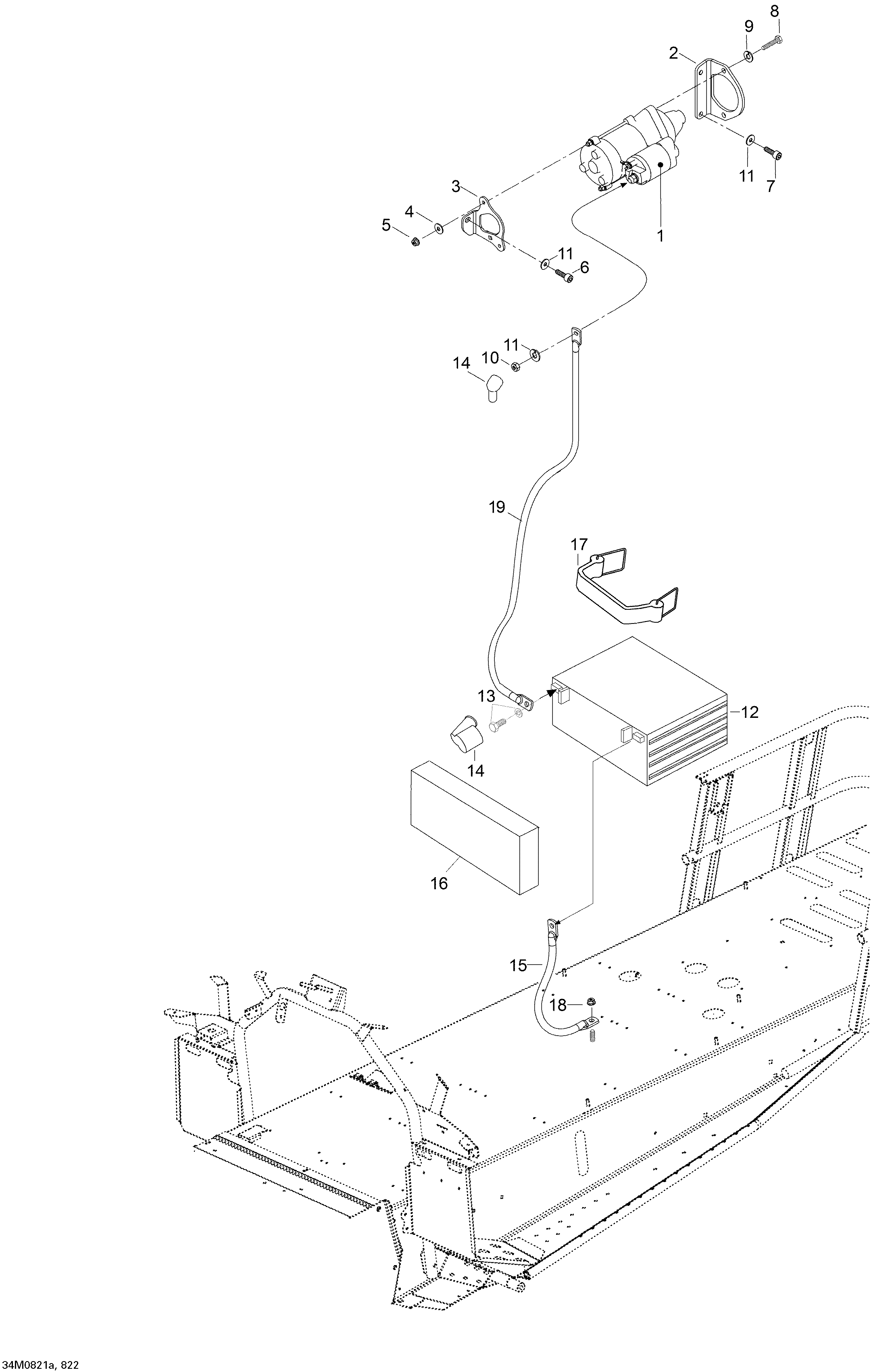

10- Battery And Starter 550F для BRP Ski-Doo Skandic WT 550F - 2008
-
№АртикулНазвание
-
1410212400 Electric Starter Ass'YElectric Starter Ass'Y
-
2420951415 Starter Bracket, P.T.O.Starter Bracket, P.T.O.
-
3420951426 Starter Bracket, M.A.G.Starter Bracket, M.A.G.
-
4M20008 Washer 5 mmWasher 5 mm
-
5232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
6M40066 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
7205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
8207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
9234181401 Lock Washer 8 mmLock Washer 8 mm
-
10M33003 NutNut
-
11234181401 Lock Washer 8 mmLock Washer 8 mm
-
12410301203 Battery, 18 Amperes. Includes 12 to 13Battery, 18 Amperes. Includes 12 to 13
-
13295500849 Battery Fastener KitBattery Fastener Kit
-
14570151000 Protection CapProtection Cap
-
15515175483 Ground WireGround Wire
-
16605352572 CoverCover
-
17515175955 Battery StrapBattery Strap
-
18M33200 Nut M6Nut M6
