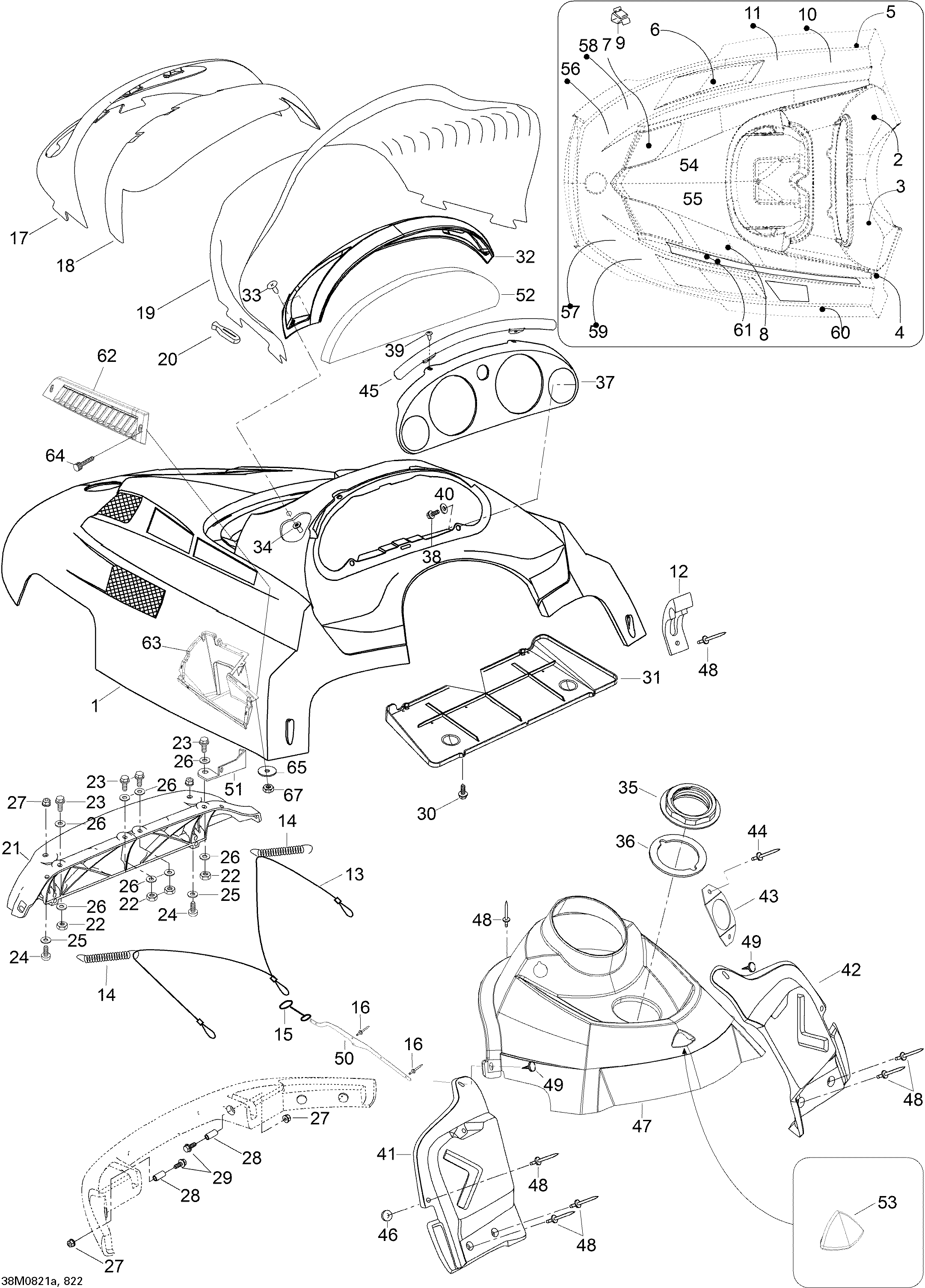

09- Hood WT 550F для BRP Ski-Doo Skandic WT 550F - 2008
-
№АртикулНазвание
-
1605354829 Hood Pre Ass'y, YETI YellowHood Pre Ass'y, YETI Yellow
-
2605350906 Isolation Rear LHIsolation Rear LH
-
3605350907 Isolation Rear RHIsolation Rear RH
-
4605350908 Isolation Rear RHIsolation Rear RH
-
5605350909 Lower Isolation Rear LHLower Isolation Rear LH
-
6605350923 LH Upper GrillLH Upper Grill
-
6605350924 RH Upper GrillRH Upper Grill
-
7605350925 LH Lower GrillLH Lower Grill
-
7605350926 RH Lower GrillRH Lower Grill
-
8605350927 LH GrillLH Grill
-
9414227300 ClipClip
-
10605350910 Upper Isolation Rear RHUpper Isolation Rear RH
-
11605350911 Isolation Rear Center LHIsolation Rear Center LH
-
12517302152 Hood LatchHood Latch
-
13605351372 Retainer CableRetainer Cable
-
14M5442675 SpringSpring
-
15M5442870 Cable KeeperCable Keeper
-
16M36002 RivetRivet
-
17517302158 Headlamp Moulding, Deep BlackHeadlamp Moulding, Deep Black
-
18517302003 Windshield SupportWindshield Support
-
19605152073 WindshieldWindshield
-
20570023800 Windshield LatchWindshield Latch
-
21517302631 HingeHinge
-
22232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
23207162044 Hex. Cap Screw M6 X 20Hex. Cap Screw M6 X 20
-
24M40381 Screw M6X20Screw M6X20
-
25M20117 WasherWasher
-
26M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
27M33200 Nut M6Nut M6
-
28605454780 BushingBushing
-
29M40003 Hex. ScrewHex. Screw
-
30243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
31605354612 Intake PlateIntake Plate
-
32605151832 CoverCover
-
33M40061 Screw M4 X 18Screw M4 X 18
-
34M28051 Well-nutWell-nut
-
35517302043 Console NutConsole Nut
-
36M5447116 GasketGasket
-
37605354134 Indicator SupportIndicator Support
-
38M40611 ScrewScrew
-
39M40888 ScrewScrew
-
40M20039 WasherWasher
-
41605251384 LH ConsoleLH Console
-
42605251922 LH ConsoleLH Console
-
43605352405 Support, LH ConsoleSupport, LH Console
-
44M36005 RivetRivet
-
45605352586 Support PlateSupport Plate
-
46M20008 Washer 5 mmWasher 5 mm
-
47605252075 Central ConsoleCentral Console
-
48M36037 RivetRivet
-
49414644300 DartDart
-
50605452657 BracketBracket
-
51605351464 RH Hood SupportRH Hood Support
-
51605351463 LH Hood SupportLH Hood Support
-
52605352583 FilterFilter
-
53605453896 PlugPlug
-
54605350912 Isolation center LHIsolation center LH
-
55605350913 Isolation center RHIsolation center RH
-
61M44001 Reflective SheetReflective Sheet
-
62605354586 Air Duct CoolingAir Duct Cooling
-
63605354585 Air Duct CoolingAir Duct Cooling
-
64250000222 Slotted Indented Hex. Screw #10 X 5/8Slotted Indented Hex. Screw #10 X 5/8
-
65391301600 WasherWasher
-
66250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
67232551414 Elastic Stop Nut M5Elastic Stop Nut M5
