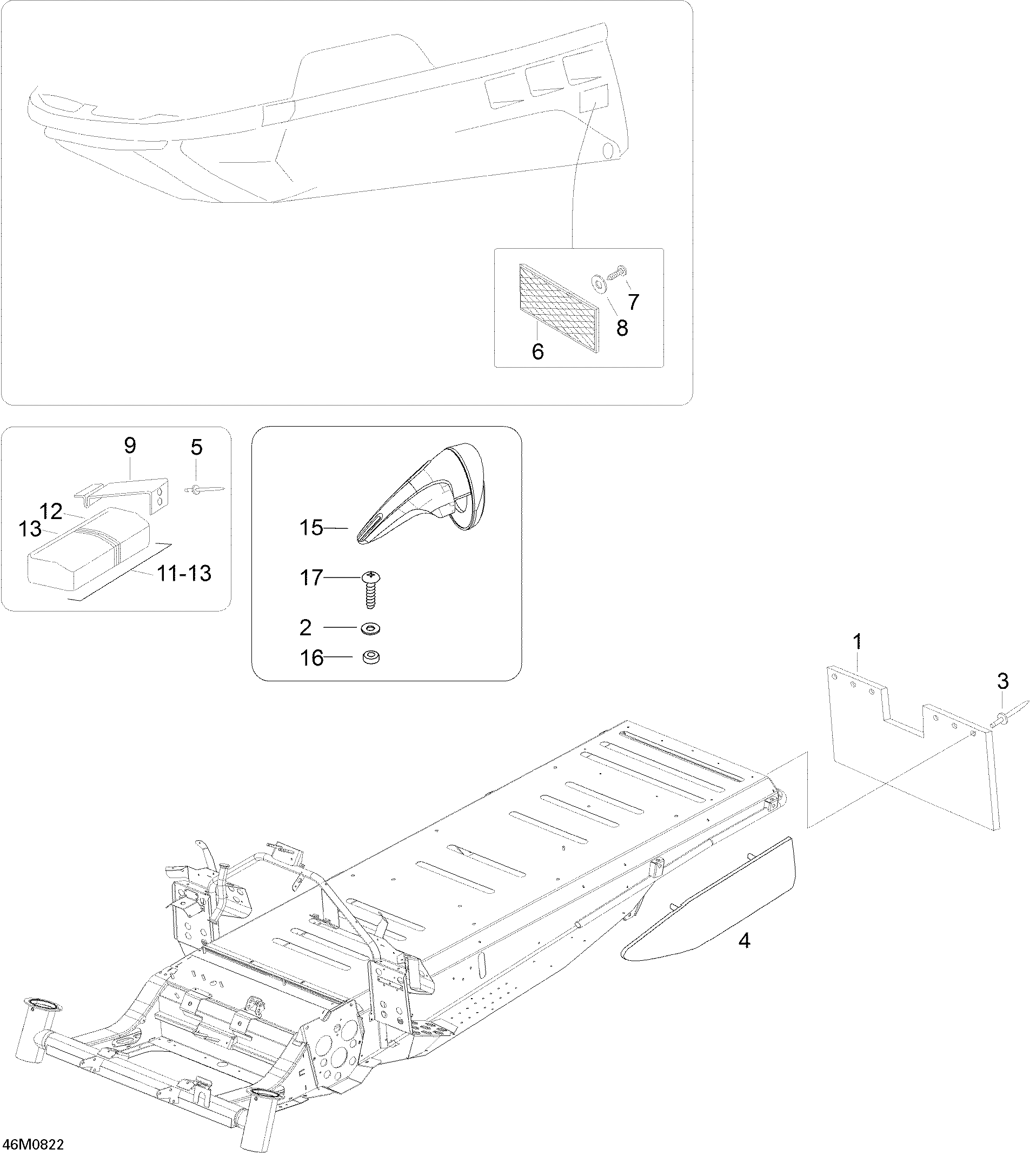

09- Utilities WT 550F для BRP Ski-Doo Skandic WT 550F - 2008
-
№АртикулНазвание
-
1M538629 Snow GuardSnow Guard
-
2250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
3M36036 Rivet-BlackRivet-Black
-
4605354746 LH Side Snow GuardLH Side Snow Guard
-
4605354747 RH Side Snow GuardRH Side Snow Guard
-
5M36108 RivetRivet
-
6M21121 Reflector, AmberReflector, Amber
-
7M40070 ScrewScrew
-
8234451418 Lock Serrated Washer 5 mmLock Serrated Washer 5 mm
-
9M5346728 Spring PlateSpring Plate
-
11605350525 Tool KitTool Kit
-
12572036310 Box CoverBox Cover
-
13A50121179000 Tool BoxTool Box
-
15517303955 Mirror KitMirror Kit
-
16250200025 Washer M5Washer M5
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
