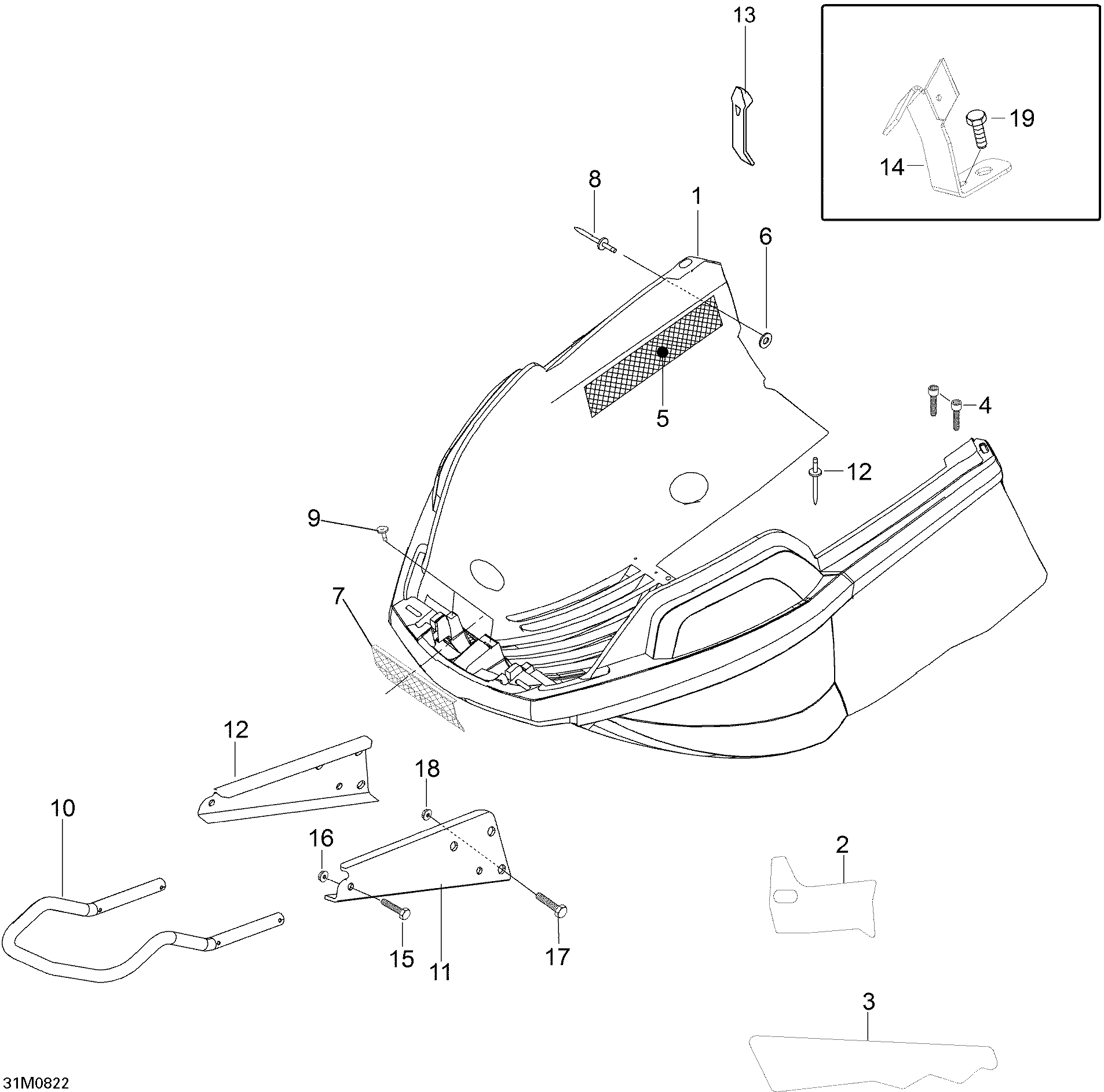

09- Bottom Pan WT 550F для BRP Ski-Doo Skandic WT 550F - 2008
-
№АртикулНазвание
-
1605255777 Bottom Pan Ass'yBottom Pan Ass'y
-
2605255744 Bottom Pan Isolation RHBottom Pan Isolation RH
-
2605255746 Bottom Pan Isolation LHBottom Pan Isolation LH
-
3605255745 Bottom Pan Isolation RHBottom Pan Isolation RH
-
4M40332 ScrewScrew
-
5605354969 LH Side GrillLH Side Grill
-
6M20008 Washer 5 mmWasher 5 mm
-
7605255513 Front GrillFront Grill
-
8M36009 RivetRivet
-
9M40847 Screw 4,2 X 13Screw 4,2 X 13
-
10605255112 BumperBumper
-
11605355113 LH Bumper PlateLH Bumper Plate
-
12605355114 RH Bumper PlateRH Bumper Plate
-
13517302152 Hood LatchHood Latch
-
14605354709 LH BracketLH Bracket
-
14605354710 RH BracketRH Bracket
-
15207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
16M33200 Nut M6Nut M6
-
17207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
18M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
19M40401 Screw-hex.cap M6x10Screw-hex.cap M6x10
