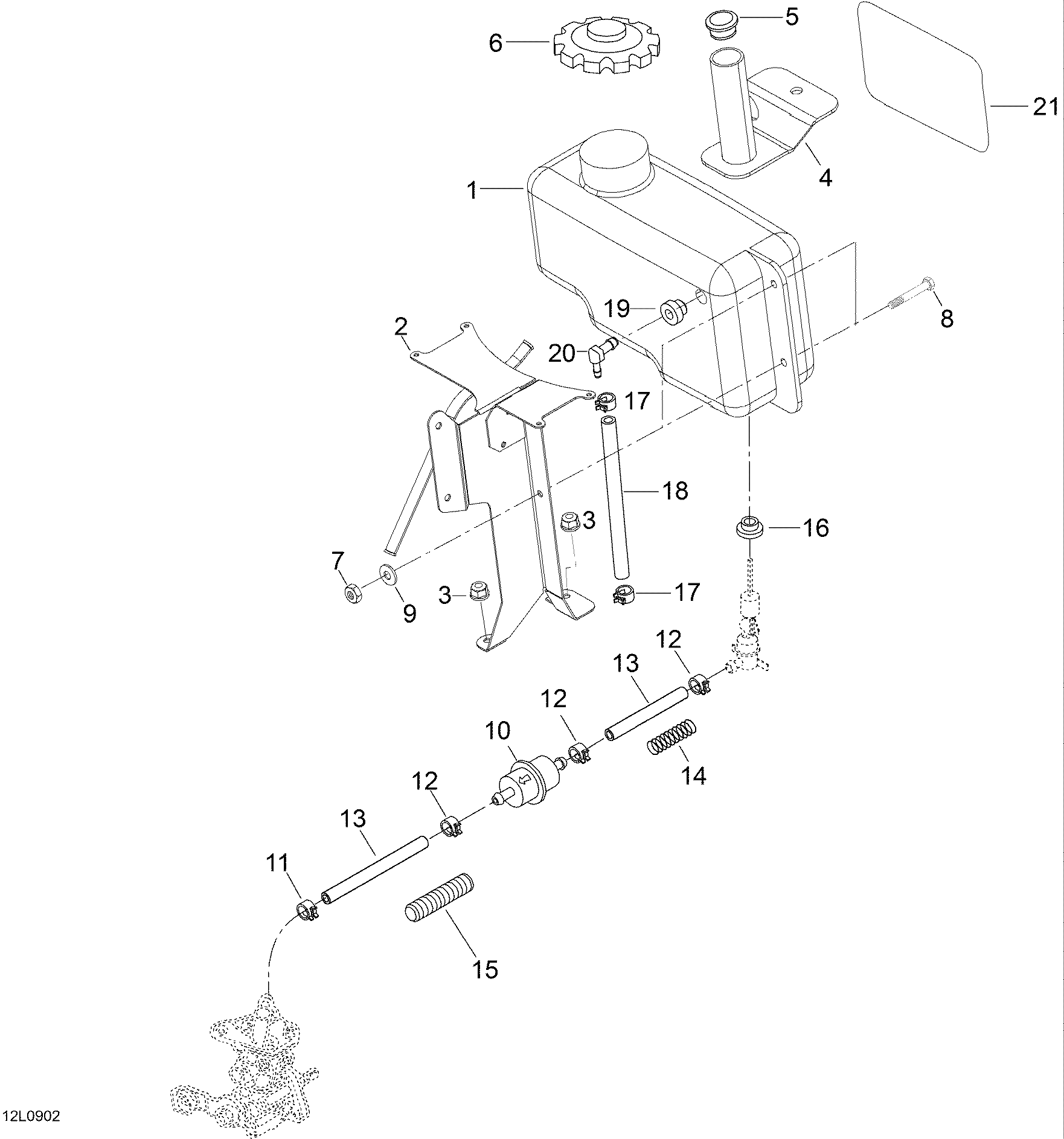

02- Oil System для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2009
-
№АртикулНазвание
-
1605351449 Oil TankOil Tank
-
2605352356 BracketBracket
-
3M33200 Nut M6Nut M6
-
4605351804 BracketBracket
-
5M28136 PlugPlug
-
6519000042 CapCap
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
9M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
10414536500 FilterFilter
-
11414420700 Spring ClipSpring Clip
-
12414415200 Universal Spring ClampUniversal Spring Clamp
-
13415080700 LineLine
-
14519000065 SpringSpring
-
15M28015 HousingHousing
-
16570023000 Insulating RingInsulating Ring
-
17414554800 Spring ClampSpring Clamp
-
18415080200 Polyurethane HosePolyurethane Hose
-
19570135100 GrommetGrommet
-
20414580700 Elbow Male ConnectorElbow Male Connector
-
21M5443578 Reflecting SheetReflecting Sheet
