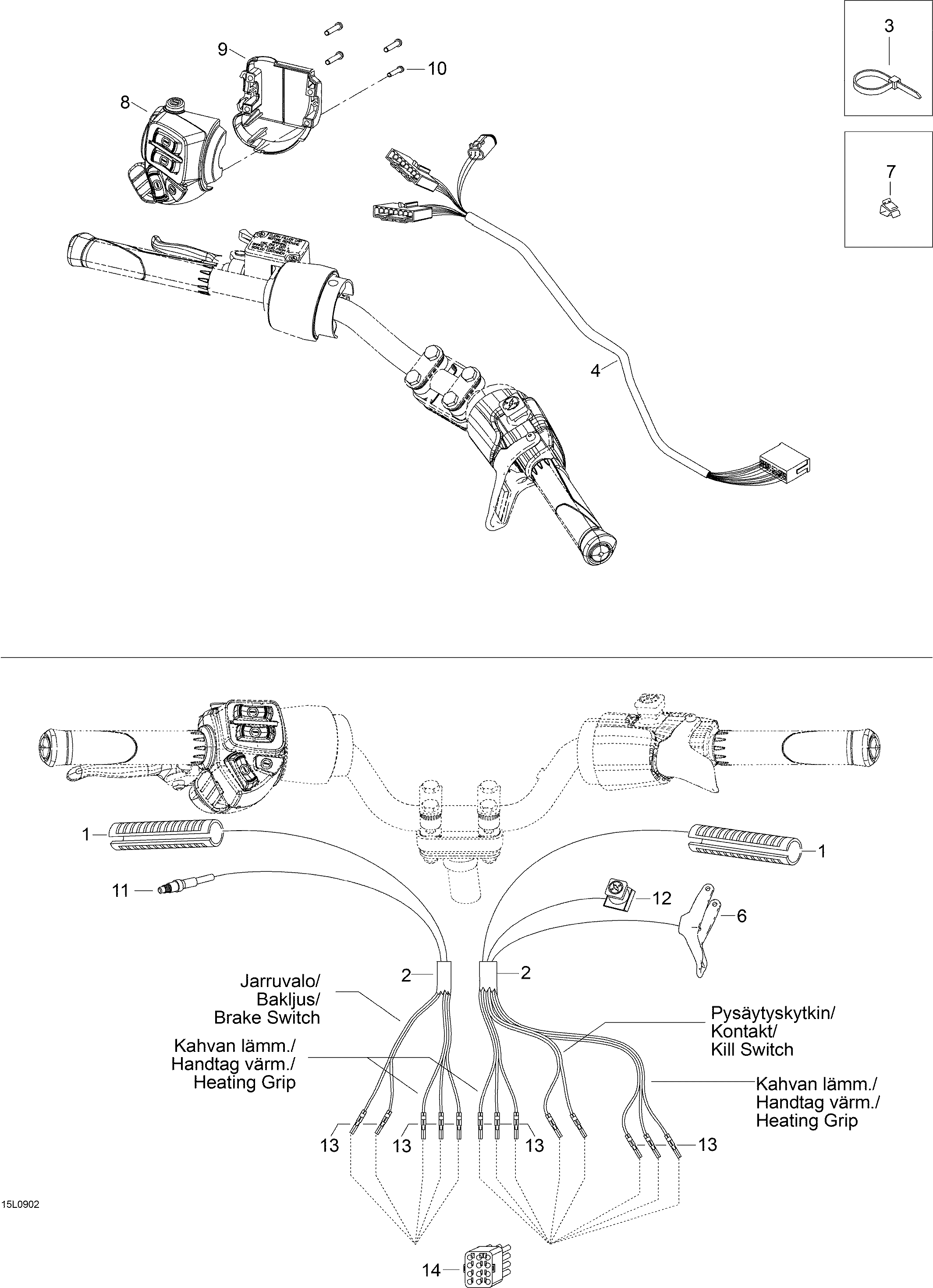

10- Steering Wiring Harness для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2009
-
№АртикулНазвание
-
1515176139 Heater ElementHeater Element
-
2M39023 HousingHousing
-
3M27010 Tie Rap 98mmTie Rap 98mm
-
3M27100 Tie Rap 290 mmTie Rap 290 mm
-
4605353265 Steering HarnessSteering Harness
-
5605355336 Main Harness. Not ShownMain Harness. Not Shown
-
6512059481 Throttle HandleThrottle Handle
-
7414227300 ClipClip
-
8515176015 LH Switch HousingLH Switch Housing
-
9515175926 Housing Switch PlateHousing Switch Plate
-
11507032366 MicroswitchMicroswitch
-
12548872536 Kill SwitchKill Switch
-
13M42603 Male TerminalMale Terminal
-
14M42617 Male Connector HousingMale Connector Housing
