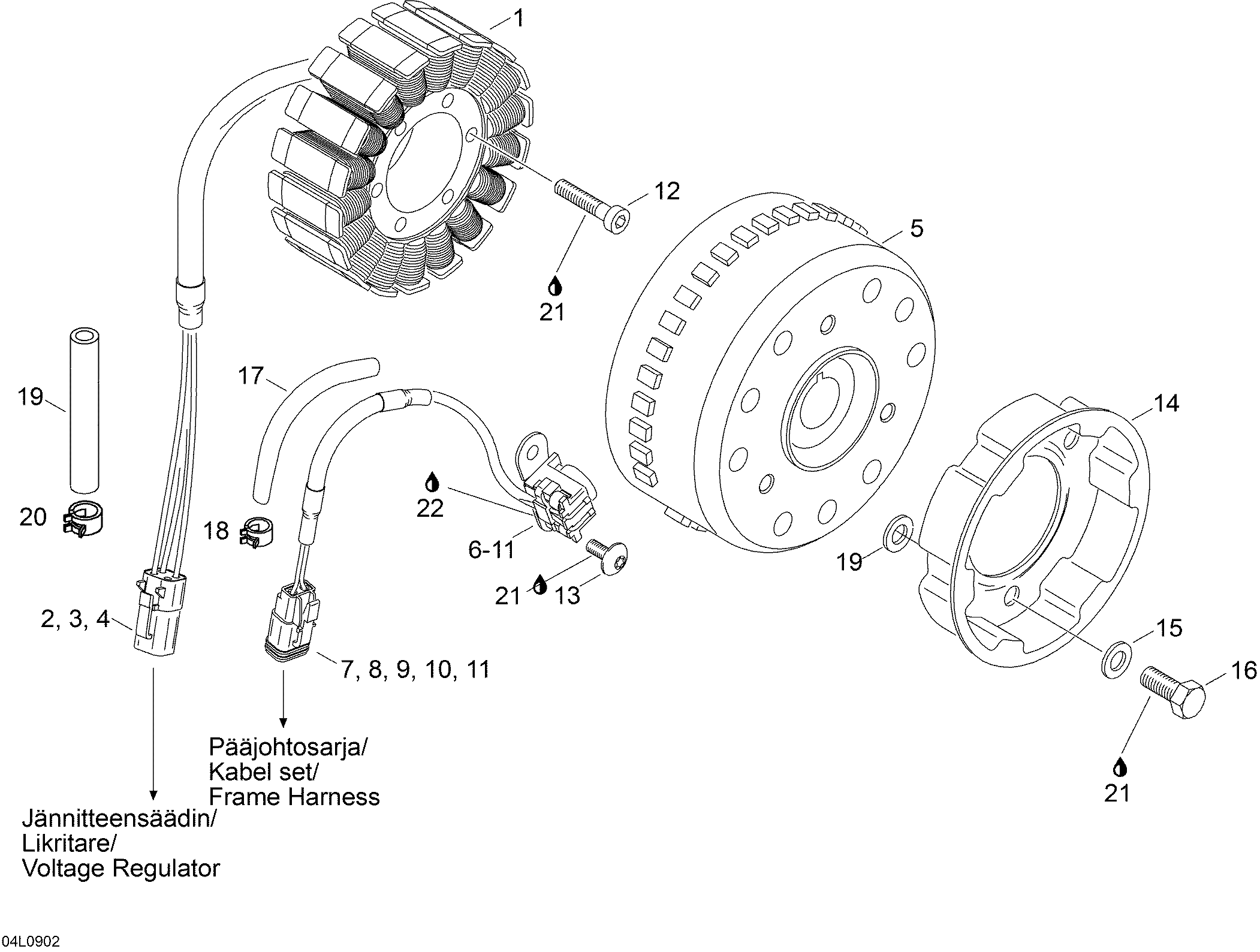

03- Magneto для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2009
-
№АртикулНазвание
-
1420866068 Stator Ass'y. Includes1 to 4Stator Ass'y. Includes1 to 4
-
2278001473 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
3515175568 Male TerminalMale Terminal
-
4278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
5420866041 FlywheelFlywheel
-
6410922963 Pick-up Ass'y. Includes 6 to 11Pick-up Ass'y. Includes 6 to 11
-
7515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
8278000632 Female TerminalFemale Terminal
-
9278001661 Female TerminalFemale Terminal
-
10515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
11293000052 Sealing CapSealing Cap
-
12420241816 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
13420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
14420852532 Starting PulleyStarting Pulley
-
15420827405 Flat WasherFlat Washer
-
16207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
17420460012 TubeTube
-
18420960890 ClipClip
-
19420660911 TubeTube
-
20420960892 ClipClip
-
21293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
22293530011 Sealant, Sikaflex Black # 221Sealant, Sikaflex Black # 221
