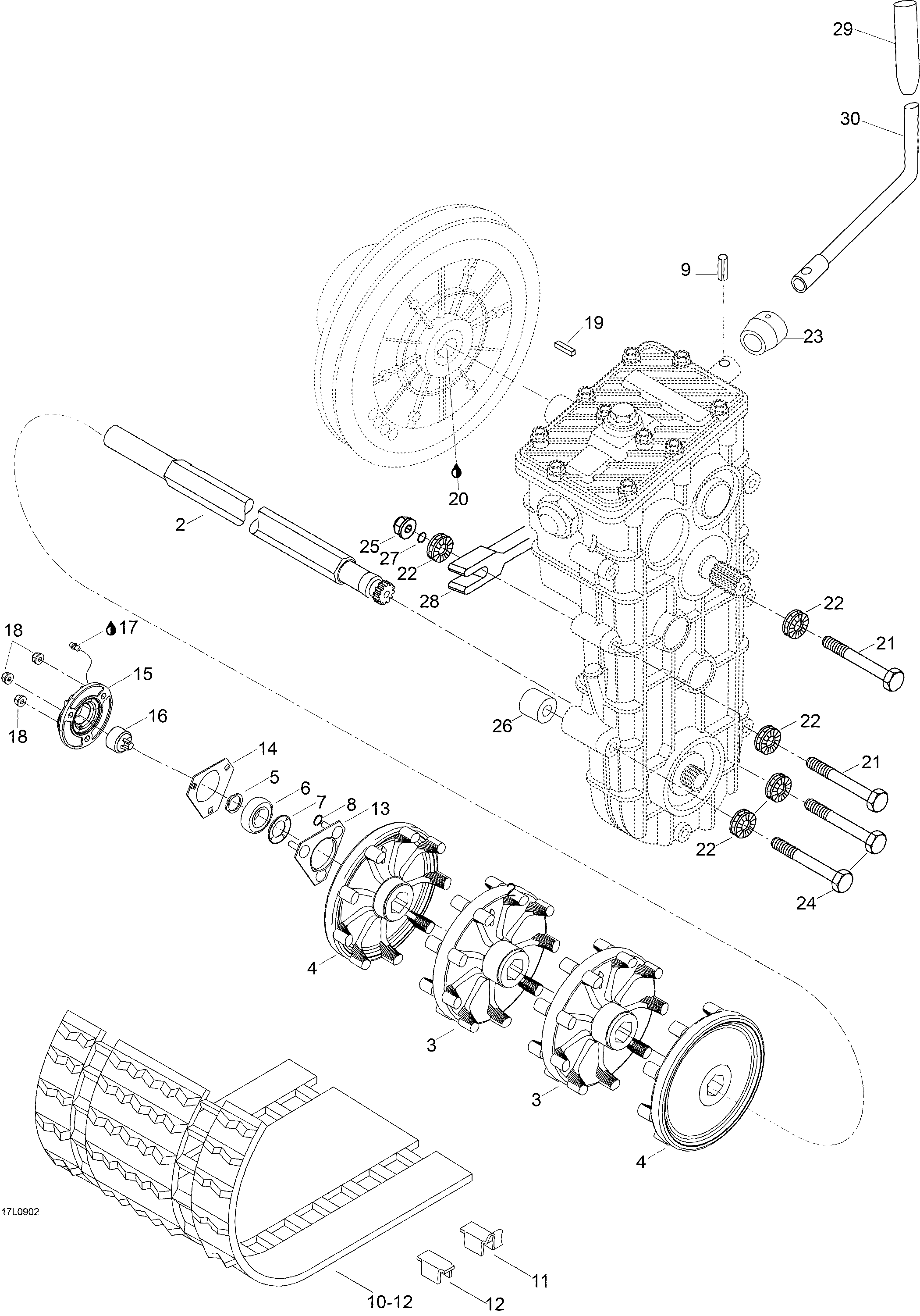

05- Drive System для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2009
-
№АртикулНазвание
-
2605249455 Drive AxleDrive Axle
-
3414931800 SprocketSprocket
-
4415067400 Half SprocketHalf Sprocket
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
8414484400 O-RingO-Ring
-
9M41008 Pin SpringPin Spring
-
10M13070 Track Ass'y. Includes 10 to 12Track Ass'y. Includes 10 to 12
-
11M5318323 Guide CleatGuide Cleat
-
12M5318322 CleatCleat
-
13504151860 Bearing HousingBearing Housing
-
14501025000 FlangeFlange
-
15504152173 Flange, SpeedoFlange, Speedo
-
16504152040 Magnetic AdaptorMagnetic Adaptor
-
18M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
19M418763 KeyKey
-
20293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
21M40291 Hex. Screw M8 X 110Hex. Screw M8 X 110
-
23M5446699 SleeveSleeve
-
24M40299 Screw M8 X 100Screw M8 X 100
-
25M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
26605452406 SleeveSleeve
-
27506151140 O-RingO-Ring
-
28605352407 Support ShaftSupport Shaft
-
29M28247 Arm Shifter BallArm Shifter Ball
-
30605350153 Shift HandleShift Handle
