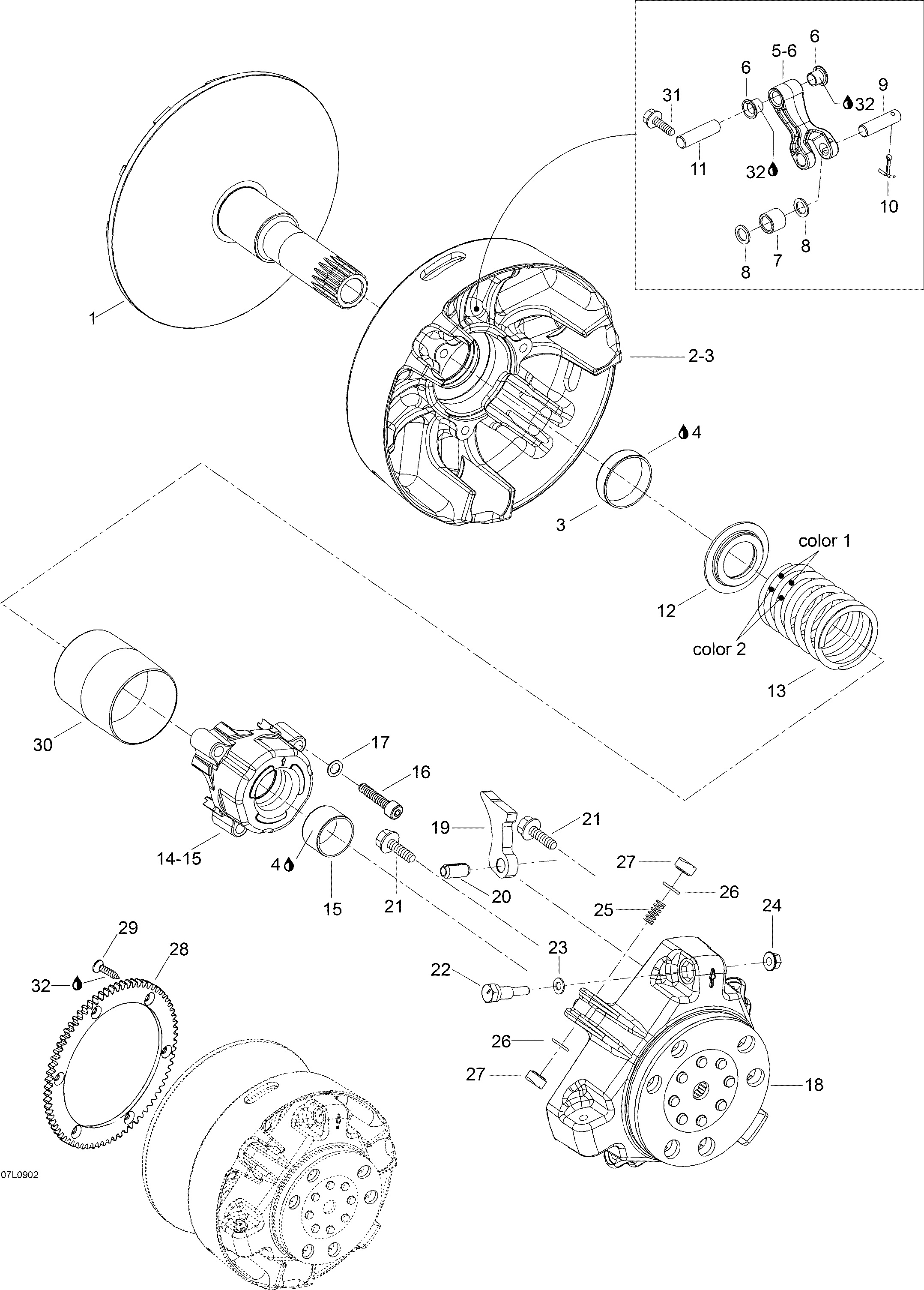

05- Drive Pulley для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2009
-
№АртикулНазвание
-
1417222777 Fixe FlangeFixe Flange
-
2417222181 Sliding Flange Ass'ySliding Flange Ass'y
-
3417004201 BushingBushing
-
4413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
5417222671 Lever Ass'y. Includes 5 to 6Lever Ass'y. Includes 5 to 6
-
6417004305 BushingBushing
-
7417222947 RollerRoller
-
8417004302 Stopper WasherStopper Washer
-
9417004308 PinPin
-
9417222594 Pin. EUROPEPin. EUROPE
-
10732958001 Cotter PinCotter Pin
-
11417009202 Lever AxleLever Axle
-
12417222312 Spring SeatSpring Seat
-
13414742100 Spring Yellow/GreenSpring Yellow/Green
-
13414742100 Spring Yellow/Green. EUROPESpring Yellow/Green. EUROPE
-
14417007500 Spring Cover Ass'y. Includes 14 to 15Spring Cover Ass'y. Includes 14 to 15
-
15417009204 BushingBushing
-
16205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
17250200009 Lock Washer 8 mmLock Washer 8 mm
-
18417222213 Governor CupGovernor Cup
-
19417222596 Ramp 410Ramp 410
-
19417222444 Ramp 600. EUROPERamp 600. EUROPE
-
20250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
21250000059 Hex. Flanged Scew M6 X 18Hex. Flanged Scew M6 X 18
-
22417222955 Calibration ScrewCalibration Screw
-
23417005600 WasherWasher
-
24233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
25417005700 SpringSpring
-
26732401030 O-RingO-Ring
-
27417005800 Slider ShoeSlider Shoe
-
28417223043 Ring GearRing Gear
-
29250000049 Hex. Torx Screw M8 X 14.5Hex. Torx Screw M8 X 14.5
-
30417009205 GuardGuard
-
31210361296 Hex. Forming Screw M6 X 12Hex. Forming Screw M6 X 12
-
32293800005 Loctite 271, 10 mlLoctite 271, 10 ml
