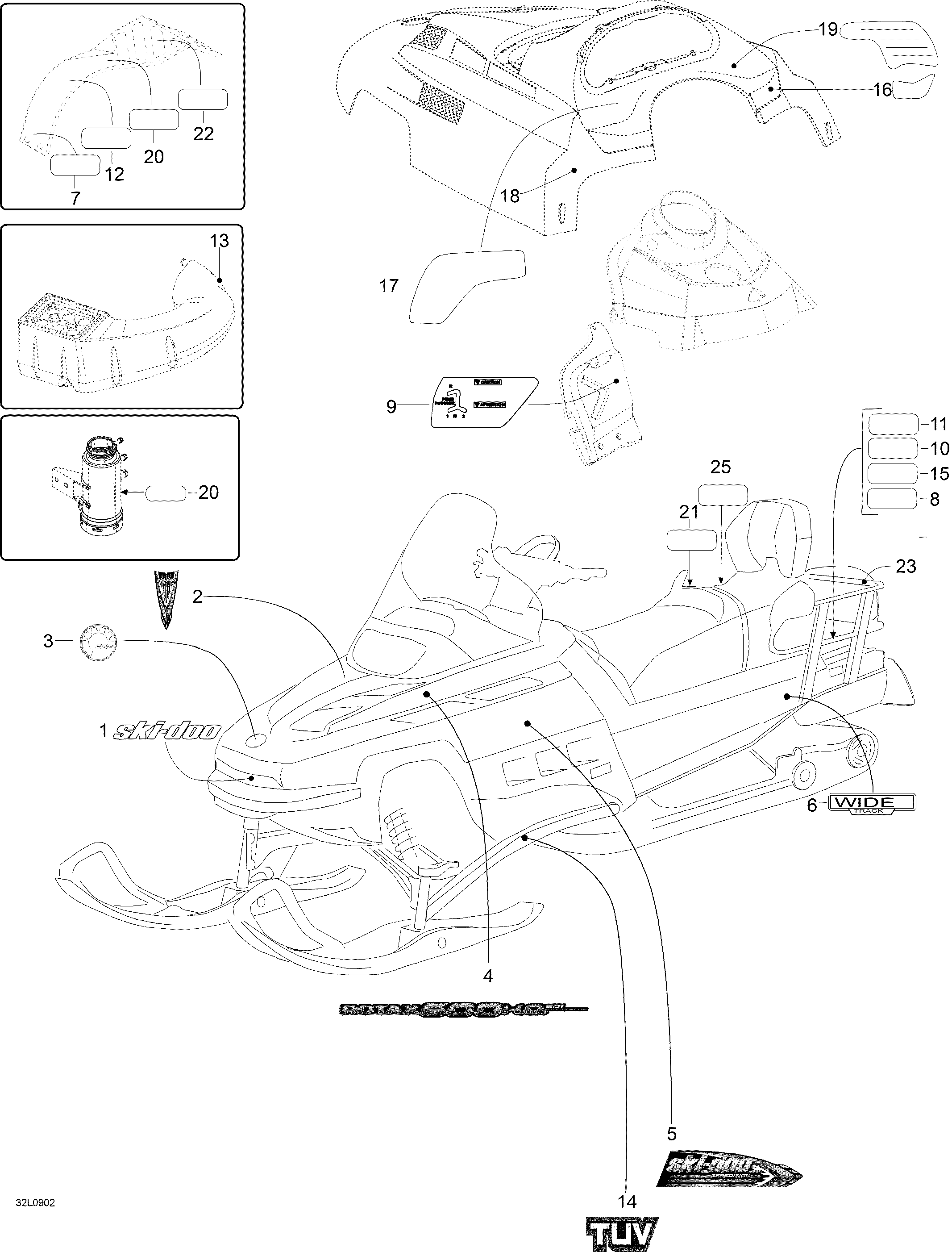

09- Decals для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2009
-
№АртикулНазвание
-
1516000338 Decal - «Ski-Doo»Decal - «Ski-Doo»
-
2516003467 Hood DecalHood Decal
-
2516003195 Hood Decal. EuropeHood Decal. Europe
-
3219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
4516003580 Hood Decal, 600HO SDIHood Decal, 600HO SDI
-
5516003469 RH Side DecalRH Side Decal
-
5516003241 RH Side Decal. EuropeRH Side Decal. Europe
-
5516003468 LH Side DecalLH Side Decal
-
5516003242 LH Side Decal. EuropeLH Side Decal. Europe
-
6516003466 Frame Decal, WidetrackFrame Decal, Widetrack
-
6516002712 Frame Decal. EuropeFrame Decal. Europe
-
8516002673 Warning DecalWarning Decal
-
9516001201 Reverse DecalReverse Decal
-
10516002667 Warning Label, Security, HitchWarning Label, Security, Hitch
-
11516003037 Warning Decal-Security-EnglishWarning Decal-Security-English
-
12516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
13516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
14516003200 DecalDecal
-
14516003201 DecalDecal
-
15516003039 Maximum Cargo Load LabelMaximum Cargo Load Label
-
16516003470 Instruction DecalInstruction Decal
-
16516002692 Instruction Label. EuropeInstruction Label. Europe
-
17516003471 Instruction DecalInstruction Decal
-
17516002693 Instruction Label. EuropeInstruction Label. Europe
-
18516003472 Instruction DecalInstruction Decal
-
18516002694 Instruction Label. EuropeInstruction Label. Europe
-
19516003473 Instruction DecalInstruction Decal
-
20516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
21516003474 Security LabelSecurity Label
-
22605452660 Instruction LabelInstruction Label
-
23605448799 Pulling Bar DecalPulling Bar Decal
-
24219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
25418001800 Heat Grip DecalHeat Grip Decal
