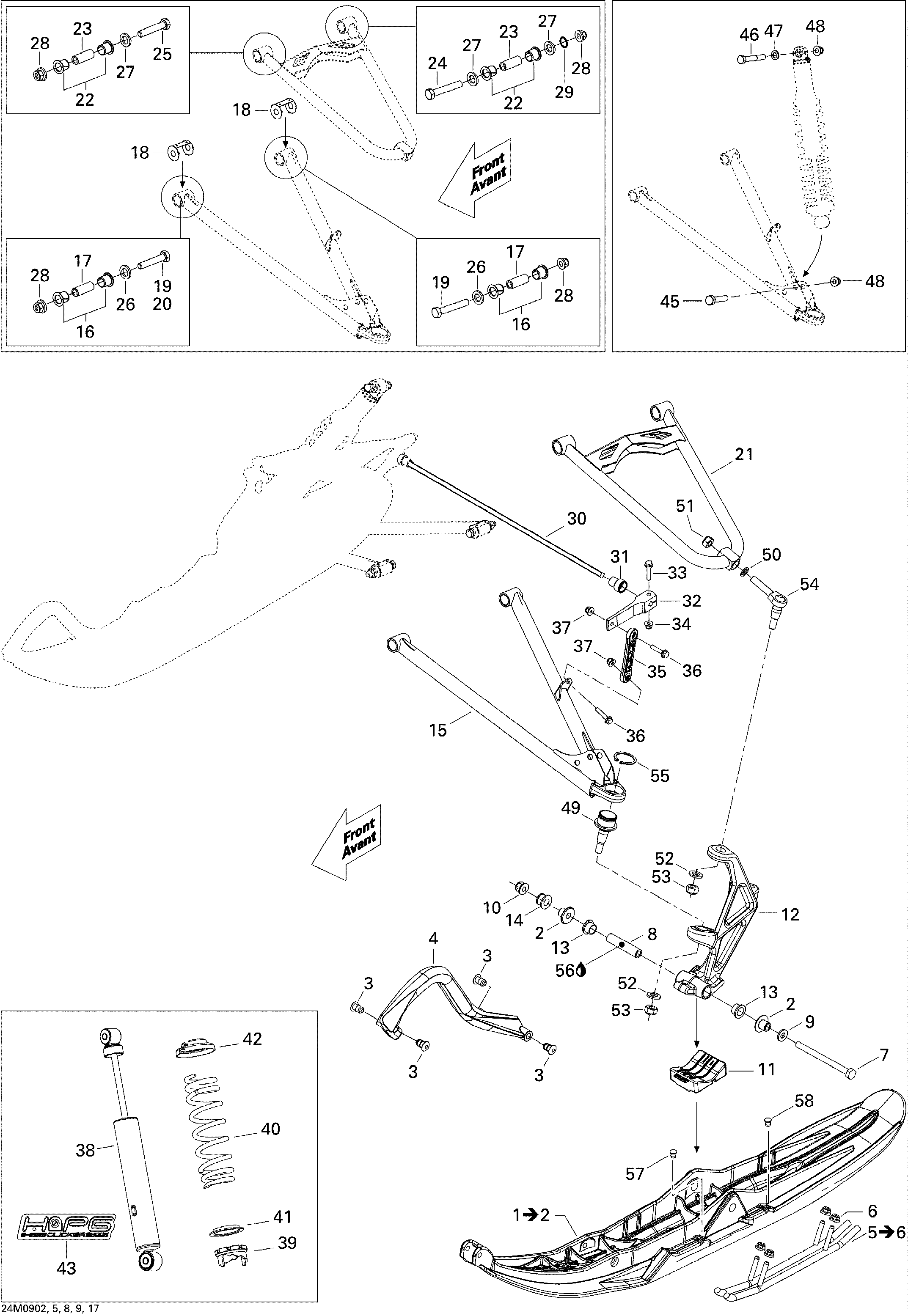

07- Front Suspension And Ski для BRP Ski-Doo GSX Limited 1200 4-TEC - 2009
-
№АртикулНазвание
-
1505072478 RH Pilot Ski 5.7, BlackRH Pilot Ski 5.7, Black
-
1505072479 LH Pilot Ski 5.7, BlackLH Pilot Ski 5.7, Black
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505071556 Handle, Full MoonHandle, Full Moon
-
5860200141 Expedition Carbide Kit. Includes 5 to 6Expedition Carbide Kit. Includes 5 to 6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
8505072101 Ski AxleSki Axle
-
9732900049 WasherWasher
-
10233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
11505071779 Ski StopperSki Stopper
-
12505071827 LH Ski LegLH Ski Leg
-
12505071829 RH Ski LegRH Ski Leg
-
13505072690 Leg CushionLeg Cushion
-
15505072522 RH Lower ArmRH Lower Arm
-
15505072523 LH Lower ArmLH Lower Arm
-
16505072208 BushingBushing
-
17505072393 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20250000218 Hex. Screw M10 X 75Hex. Screw M10 X 75
-
21505072389 Upper ArmUpper Arm
-
22505072250 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
25250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29505072448 O-RingO-Ring
-
30505072602 StabilisatorStabilisator
-
31505072064 BushingBushing
-
32505072394 Stabilisator LeverStabilisator Lever
-
33207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
34233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35505072204 Double Ball Joint LinkDouble Ball Joint Link
-
36207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072489 Front ShockFront Shock
-
39505070150 Adjustment CamAdjustment Cam
-
40505072518 Painted SpringPainted Spring
-
41503191872 Spring GuideSpring Guide
-
42706200881 Spring StopperSpring Stopper
-
44503191610 CapCap
-
45207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
46207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
47503189564 WasherWasher
-
48233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49505072251 Lower Ball JointLower Ball Joint
-
50503189276 WasherWasher
-
51250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
52234021410 Flat Washer 12 mmFlat Washer 12 mm
-
53250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
54505072257 Upper Ball JointUpper Ball Joint
-
55293370035 CirclipCirclip
-
56219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
57505072708 Front PlugFront Plug
-
58505072709 Rear PlugRear Plug
