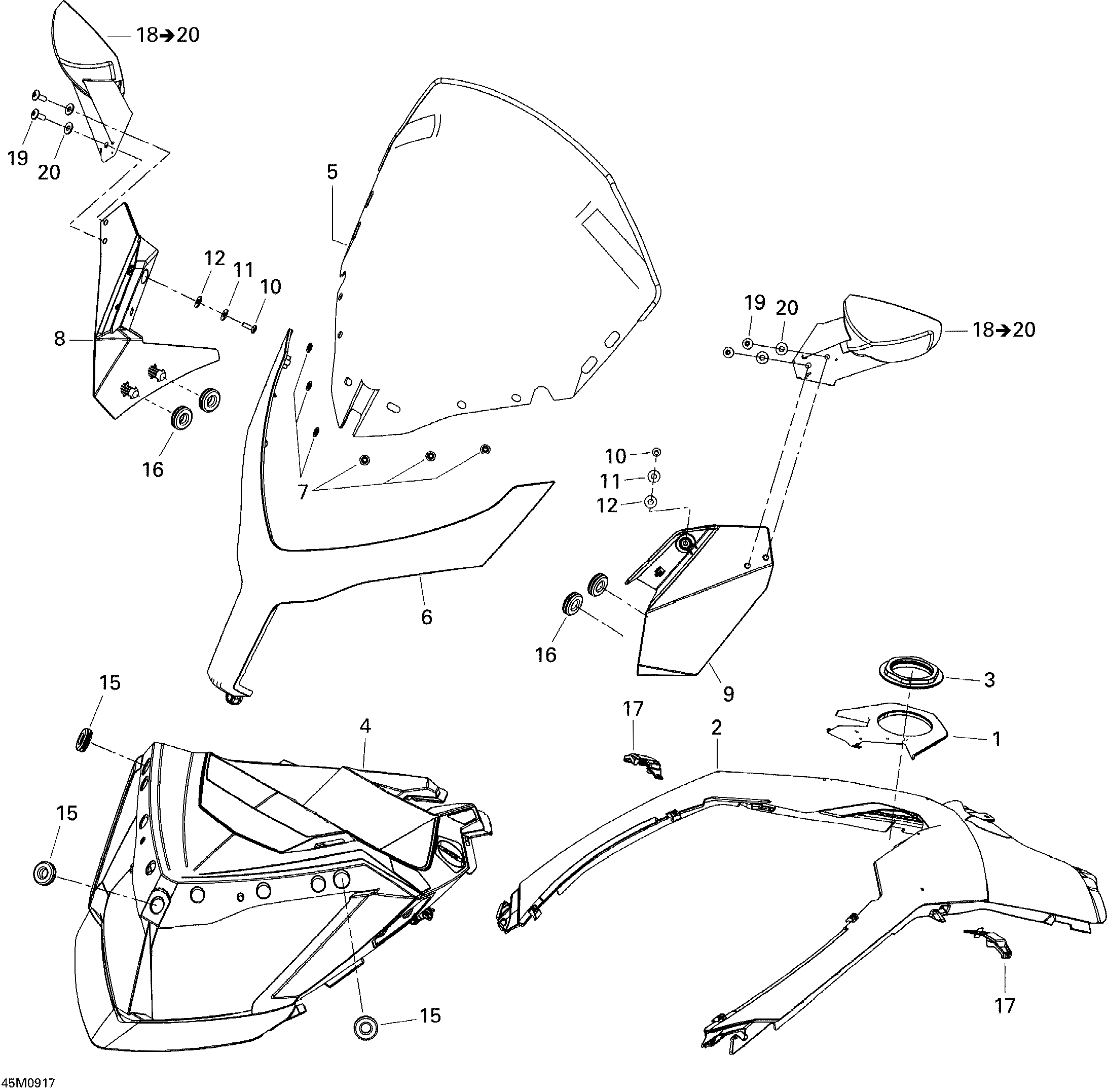

09- Windshield And Console для BRP Ski-Doo GSX Limited 1200 4-TEC - 2009
-
№АртикулНазвание
-
1517304027 Cap ConsoleCap Console
-
2517303741 Console. Black-Black ModelConsole. Black-Black Model
-
2517304042 Console. Red-Red ModelConsole. Red-Red Model
-
3517302575 Console NutConsole Nut
-
4517303971 Indicator SupportIndicator Support
-
5517303797 High WindshieldHigh Windshield
-
6517303798 Medium Windshield SupportMedium Windshield Support
-
7732610072 Push NutPush Nut
-
8517303799 RH Console Air DeflectorRH Console Air Deflector
-
9517303800 LH Console Air DeflectorLH Console Air Deflector
-
10250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
11250200025 Washer M5Washer M5
-
12250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
15517303756 GrommetGrommet
-
16517303756 GrommetGrommet
-
17517303973 Panel LatchPanel Latch
-
18517304145 RH Mirror Ass'y. Includes 18 to 20RH Mirror Ass'y. Includes 18 to 20
-
18517304146 LH Mirror Ass'y. Includes 18 to 20LH Mirror Ass'y. Includes 18 to 20
-
19250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
20250200024 Rubber Washer 5 mmRubber Washer 5 mm
