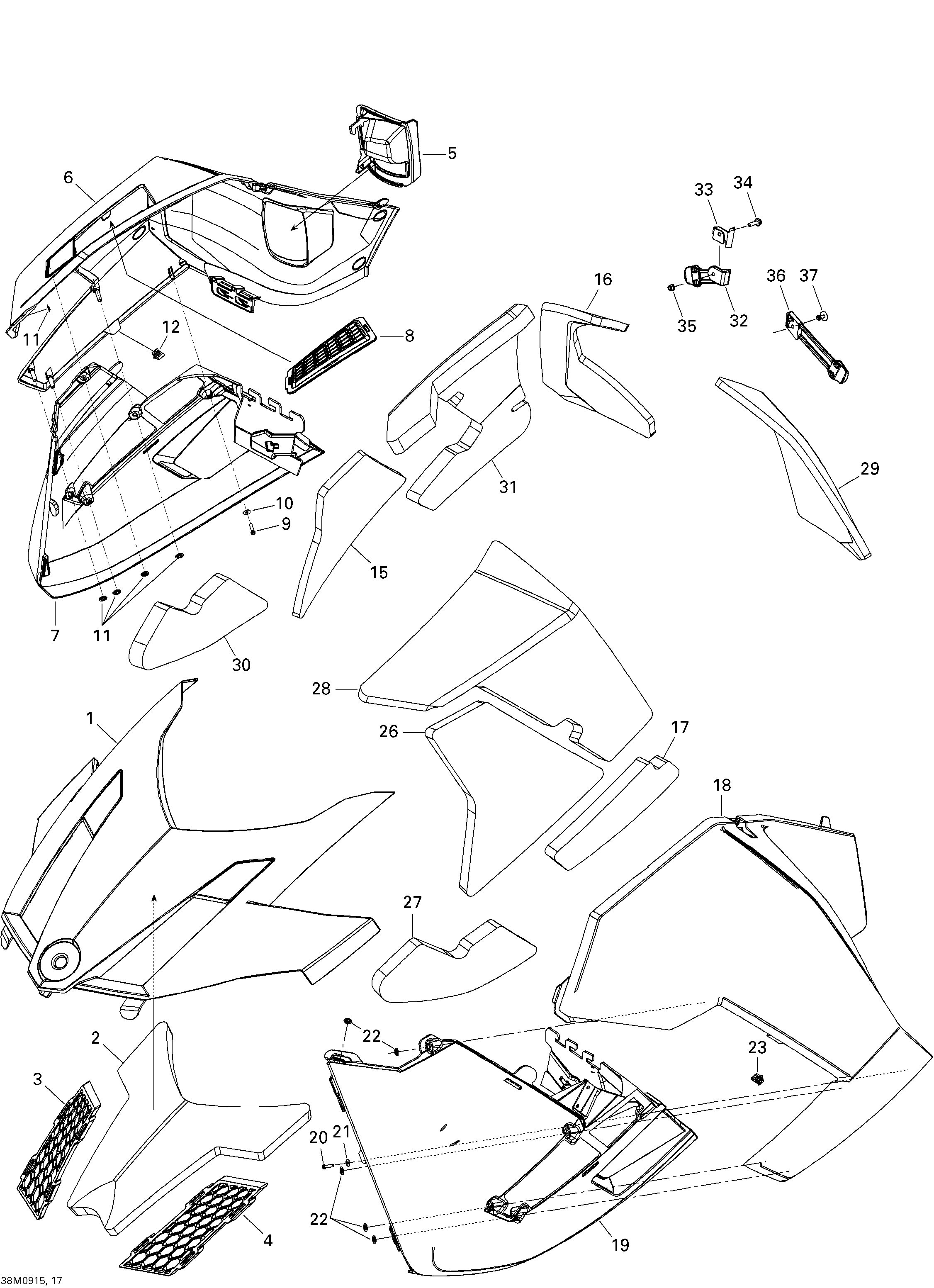

09- Hood для BRP Ski-Doo GSX Limited 1200 4-TEC - 2009
-
№АртикулНазвание
-
1517303739 Hood. Black-BlackHood. Black-Black
-
1517304037 Hood. Red-RedHood. Red-Red
-
2517303740 Foam HoodFoam Hood
-
3517304243 RH Hood Grill. Black-BlackRH Hood Grill. Black-Black
-
4517304242 LH Hood Grill. Black-BlackLH Hood Grill. Black-Black
-
5517303810 RH ConsoleRH Console
-
6517304006 RH Pannel. Black-BlackRH Pannel. Black-Black
-
6517304046 RH Pannel. Red-RedRH Pannel. Red-Red
-
7517304373 RH Pannel MouldingRH Pannel Moulding
-
8517304240 Pannel Grill. Black-BlackPannel Grill. Black-Black
-
8517303801 Pannel Grill. Red-RedPannel Grill. Red-Red
-
9241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
10234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
11732610072 Push NutPush Nut
-
12517302785 ClipClip
-
15517303750 RH Central Pannel FoamRH Central Pannel Foam
-
16517303751 RH Central Pannel FoamRH Central Pannel Foam
-
17517304277 LH Central Pannel FoamLH Central Pannel Foam
-
18517303753 LH Pannel. Black-BlackLH Pannel. Black-Black
-
18517304054 LH Pannel. Red-RedLH Pannel. Red-Red
-
19517304362 LH Pannel MouldingLH Pannel Moulding
-
20241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
21234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
22732610072 Push NutPush Nut
-
23517302785 ClipClip
-
26517304274 LH Central Pannel FoamLH Central Pannel Foam
-
27517304059 LH Low Pannel FoamLH Low Pannel Foam
-
28517304276 LH Upper Pannel FoamLH Upper Pannel Foam
-
29517304135 LH Rear Pannel FoamLH Rear Pannel Foam
-
30517304063 RH Low Pannel FoamRH Low Pannel Foam
-
31517304080 RH Upper Pannel FoamRH Upper Pannel Foam
-
32517303612 Panel LatchPanel Latch
-
33517304221 Latch SupportLatch Support
-
34207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
35233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
36517303808 Panel LatchPanel Latch
-
37293150108 Pop Rivet 3/16''Pop Rivet 3/16''
