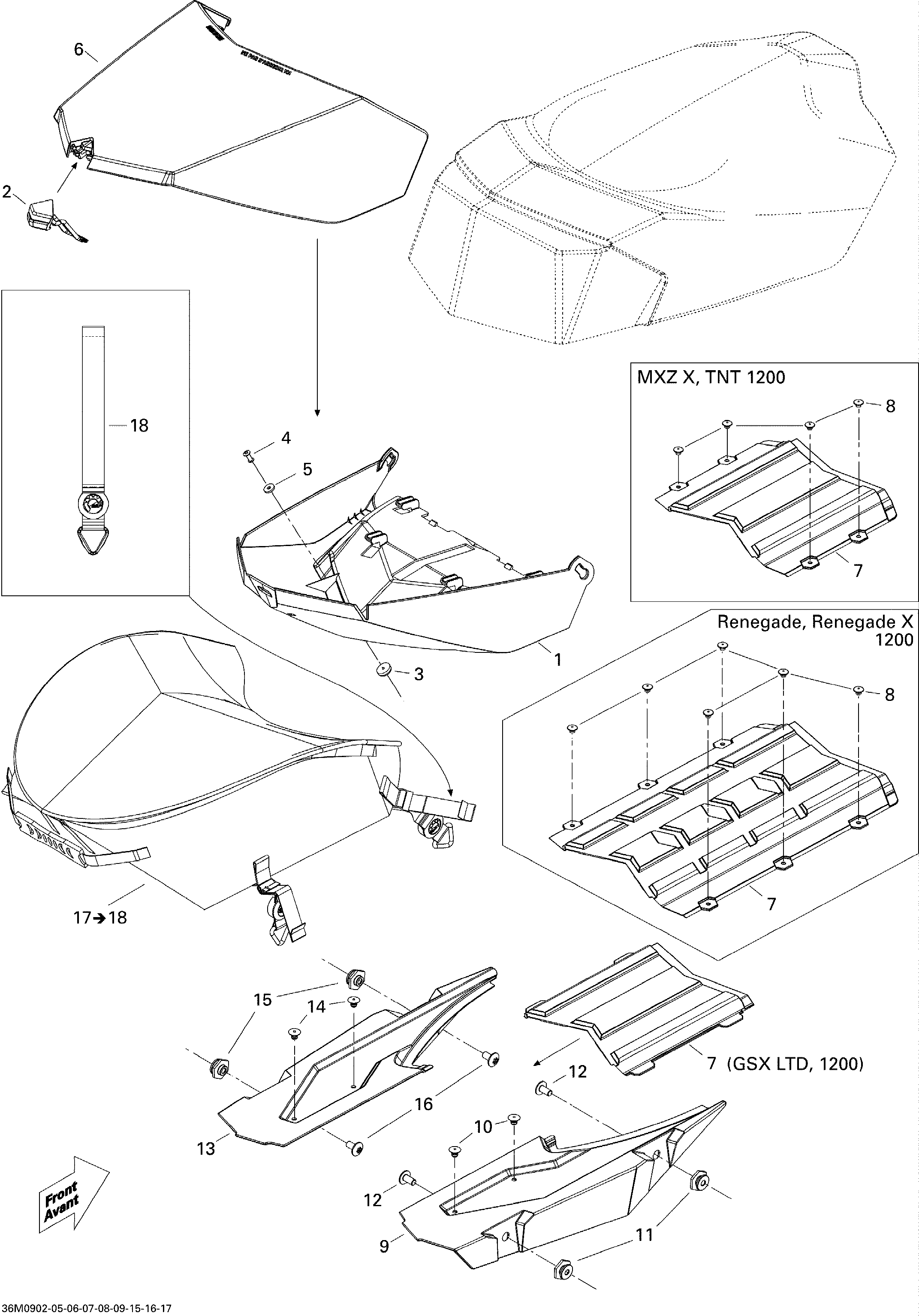

09- Luggage Rack для BRP Ski-Doo GSX Limited 1200 4-TEC - 2009
-
№АртикулНазвание
-
1511000487 TrunkTrunk
-
2511000528 BracketBracket
-
3415018100 Rubber StopperRubber Stopper
-
4390401600 Pop Rivet 1/8''Pop Rivet 1/8''
-
5293150007 WasherWasher
-
6511000568 Trunk Cover, Black. BlackTrunk Cover, Black. Black
-
6511000569 Trunk Cover. RedTrunk Cover. Red
-
7511000592 Radiator CoverRadiator Cover
-
9511000483 RH Tunnel RailRH Tunnel Rail
-
10293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
11520000646 Anchor LinkAnchor Link
-
12250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
13511000484 LH Tunnel RailLH Tunnel Rail
-
14293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
15520000646 Anchor LinkAnchor Link
-
16250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
17511000539 Rear Bag. Includes 17 to 18Rear Bag. Includes 17 to 18
-
18860200138 Fastener Button With StrapFastener Button With Strap
