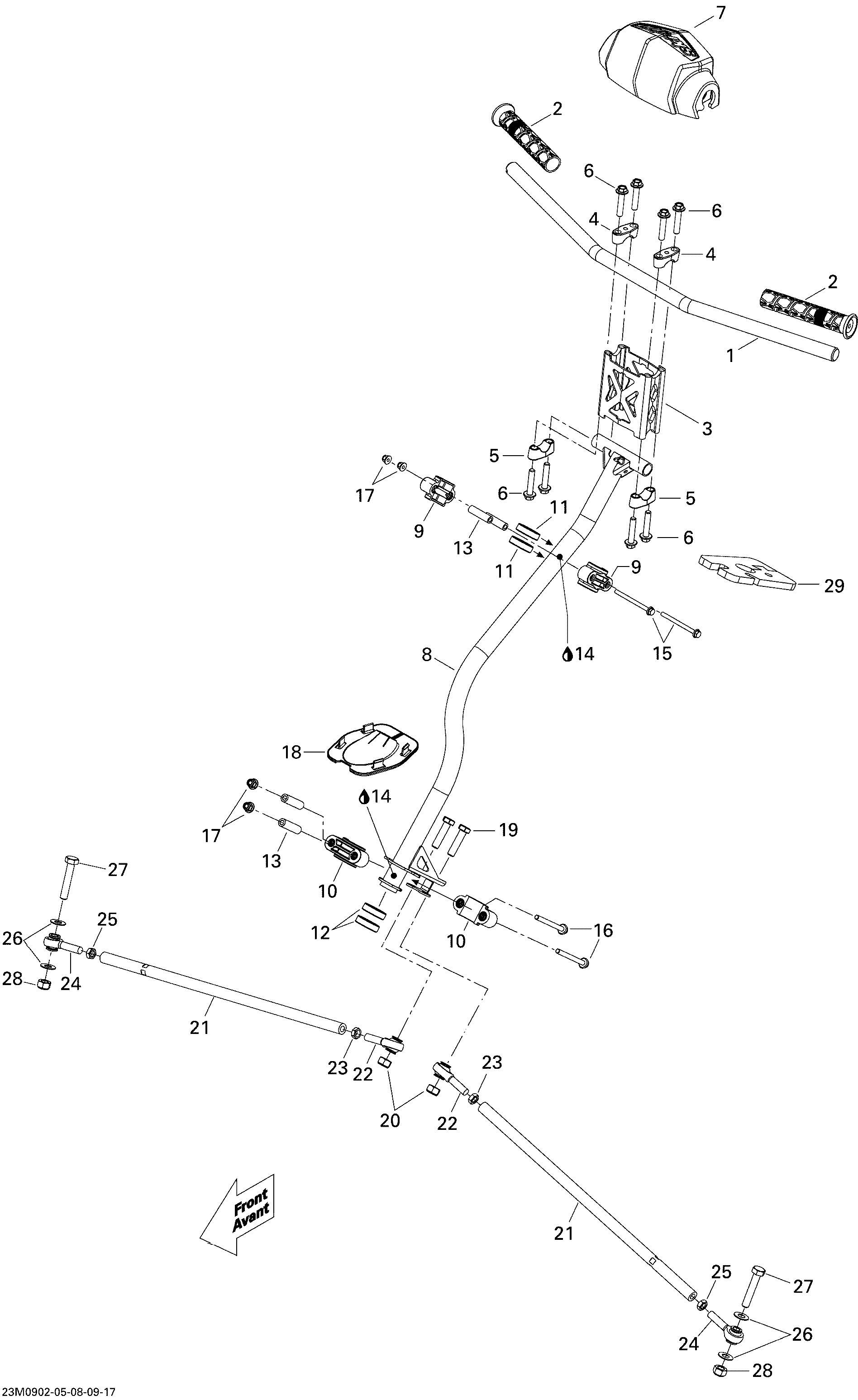

07- Steering для BRP Ski-Doo GSX Limited 1200 4-TEC - 2009
-
№АртикулНазвание
-
1506152203 Handle BarHandle Bar
-
2506152424 GripGrip
-
3860200268 Handlebar ExtensionHandlebar Extension
-
4506152394 Upper Steering SupportUpper Steering Support
-
5506152395 Lower Steering SupportLower Steering Support
-
6250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
7506152249 Steering PadSteering Pad
-
8506152310 Main TubeMain Tube
-
9506152219 Upper Half HousingUpper Half Housing
-
10506152217 Lower Half HousingLower Half Housing
-
11506152292 Upper Vibration RingUpper Vibration Ring
-
12506152218 Lower Vibration RingLower Vibration Ring
-
13506152297 Housing BushingHousing Bushing
-
14219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
15207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
16207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
17233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18506152163 PlatePlate
-
19207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
20232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21506152095 Tie RodTie Rod
-
22506152081 LH Thread Ball JointLH Thread Ball Joint
-
23250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
24506152019 RH Thread Ball JointRH Thread Ball Joint
-
25732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
26506152194 WasherWasher
-
27207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
28232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
29506152334 CushionCushion
