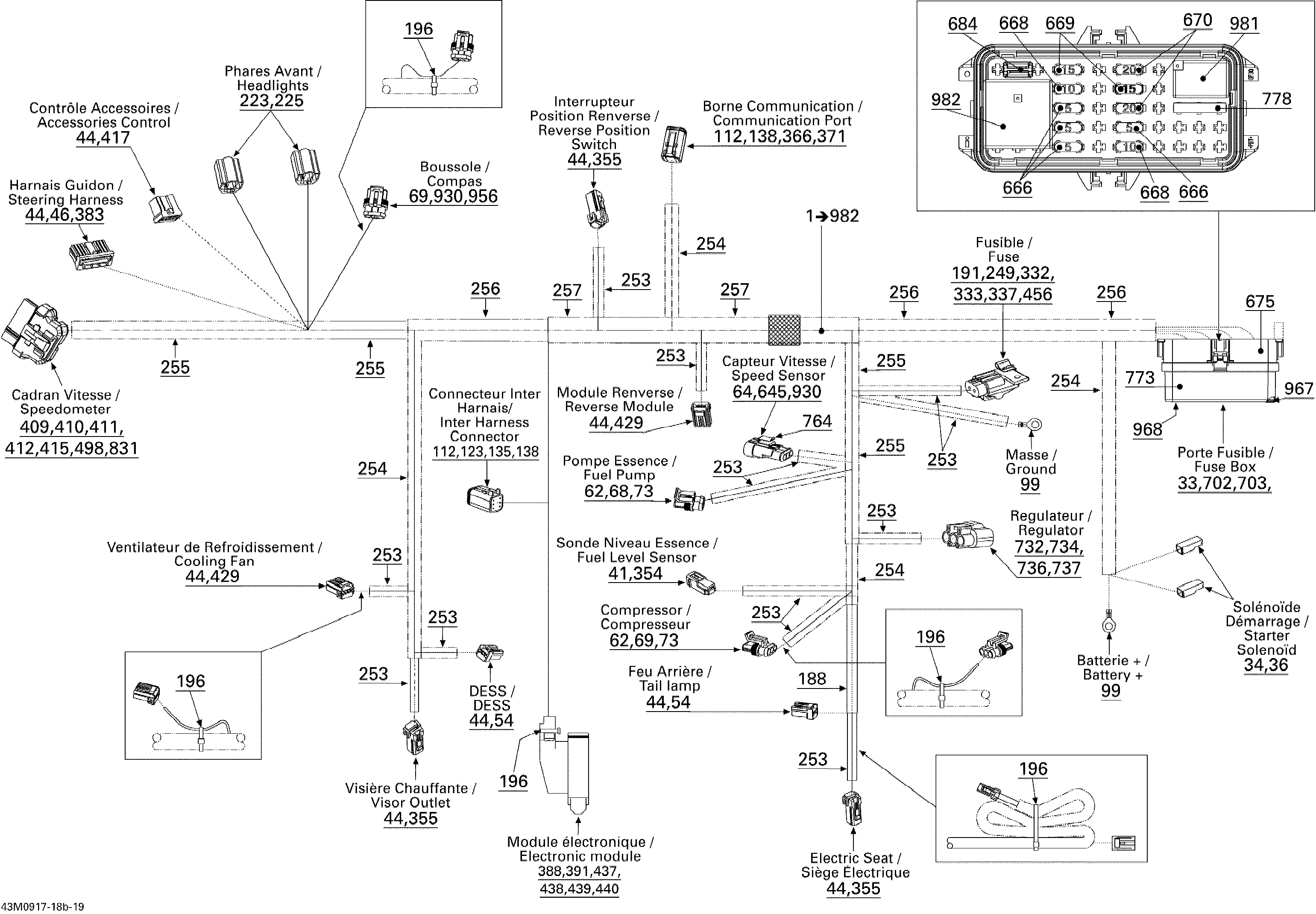

10- Electrical Harness для BRP Ski-Doo GSX Limited 1200 4-TEC - 2009
-
№АртикулНазвание
-
1515176751 Main Harness. Includes 1 to 982Main Harness. Includes 1 to 982
-
33278000999 Wire SealWire Seal
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
41515175232 Male TerminalMale Terminal
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
62278001014 Female TerminalFemale Terminal
-
64710000568 HousingHousing
-
68409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
69409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
73278001013 Wire SealWire Seal
-
99278000992 Open BarrelOpen Barrel
-
112278000632 Female TerminalFemale Terminal
-
123278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
135278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
138293000052 Sealing CapSealing Cap
-
188409902000 Tubing 12 mmTubing 12 mm
-
191410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
223515175320 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing, 19 mmTubing, 19 mm
-
332278001326 Fuse Holder CapFuse Holder Cap
-
333278001325 Fuse HolderFuse Holder
-
337710000113 Female TerminalFemale Terminal
-
354515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
355515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
366515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
371515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
383515175719 Female Terminal Housing, 11 CircuitsFemale Terminal Housing, 11 Circuits
-
388278001750 Female TerminalFemale Terminal
-
391278001751 Male Housing, 41 CircuitsMale Housing, 41 Circuits
-
409515175812 PlugPlug
-
410515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
411515175802 Retainer BlockRetainer Block
-
412515175803 Wire SealWire Seal
-
415515175806 Female TerminalFemale Terminal
-
417515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
437515175886 SealSeal
-
438515175883 LatchLatch
-
439515175884 LockLock
-
440515175885 CoverCover
-
456278000805 CushionCushion
-
498710000399 Female HousingFemale Housing
-
645515176164 Male TerminalMale Terminal
-
666710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
668710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
669710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
670710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
675710000660 Fuse Box Ass'yFuse Box Ass'y
-
684710000781 Fuse PullerFuse Puller
-
702710000836 Female TerminalFemale Terminal
-
703710000837 Female TerminalFemale Terminal
-
732710000877 TerminalTerminal
-
734710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
736710000881 SealSeal
-
737710000882 CapCap
-
764710000992 ClipClip
-
773710001026 Fuse CoverFuse Cover
-
778278002165 Bus BarBus Bar
-
831710001131 Female TerminalFemale Terminal
-
930515176621 Wire SealWire Seal
-
956278002307 Female TerminalFemale Terminal
-
967278002172 FoamFoam
-
968515176723 Relay-Fuse DecalRelay-Fuse Decal
-
981515176774 Relay, 30 AMPRelay, 30 AMP
-
982515176775 Relay, 50 AMPRelay, 50 AMP
