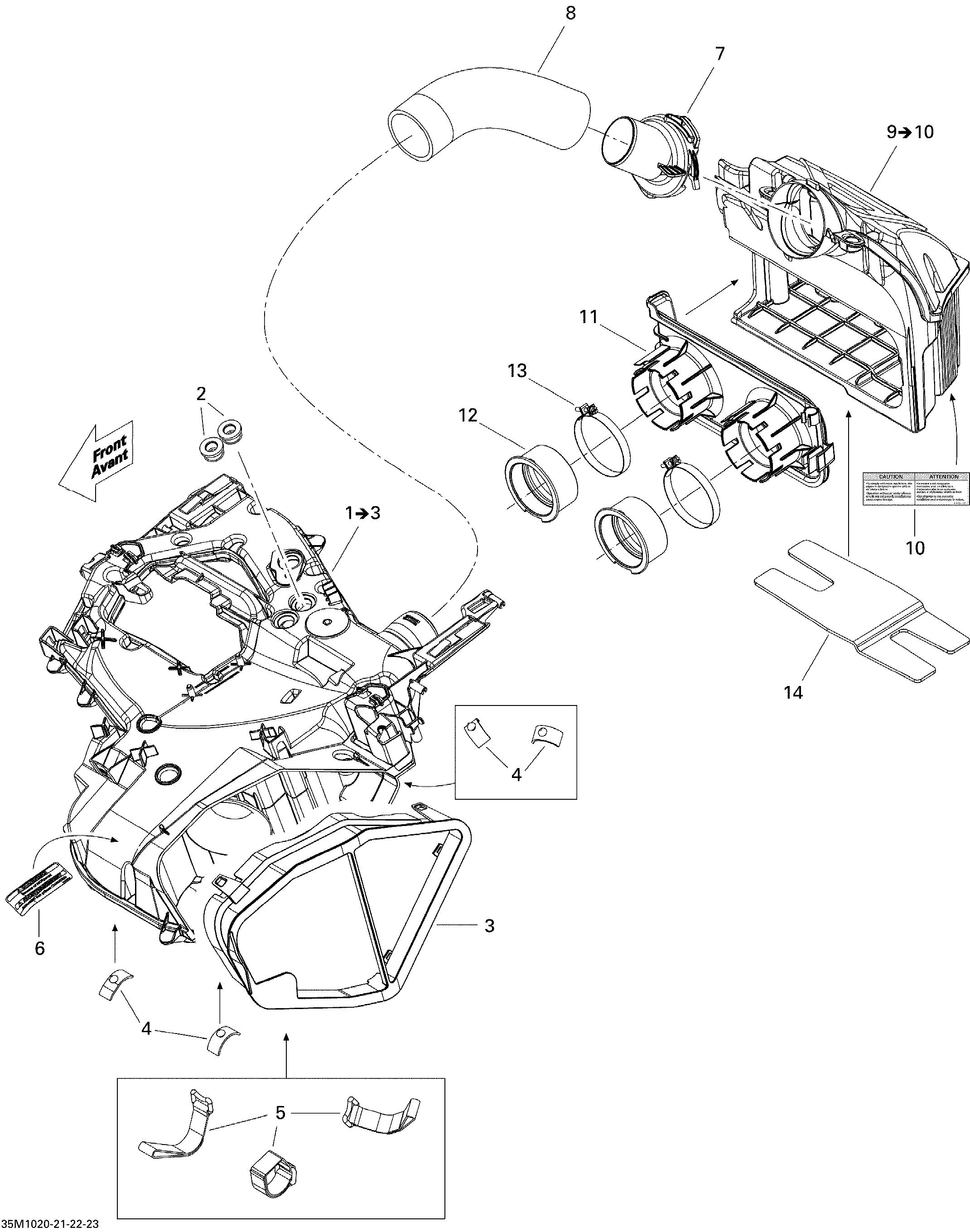

02- Air Intake System для BRP Ski-Doo Renegade Sport 550F - 2010
-
№АртикулНазвание
-
1508000559 Secondary Chamber Ass'y. Includes 1 to 3Secondary Chamber Ass'y. Includes 1 to 3
-
2508000574 GrommetGrommet
-
3508000568 Air FilterAir Filter
-
4508000537 StopperStopper
-
5508000532 Strip VelcroStrip Velcro
-
6516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
7508000562 LinkLink
-
8508000406 TubeTube
-
9508000680 Primary Chamber Ass'y. Includes 9 to 10Primary Chamber Ass'y. Includes 9 to 10
-
10516003371 Caution Label, Air IntakeCaution Label, Air Intake
-
11508000564 Adapter PlateAdapter Plate
-
12508000594 Air Intake AdapterAir Intake Adapter
-
13508000369 Gemi ClampGemi Clamp
-
14508000674 Insulated FoamInsulated Foam
