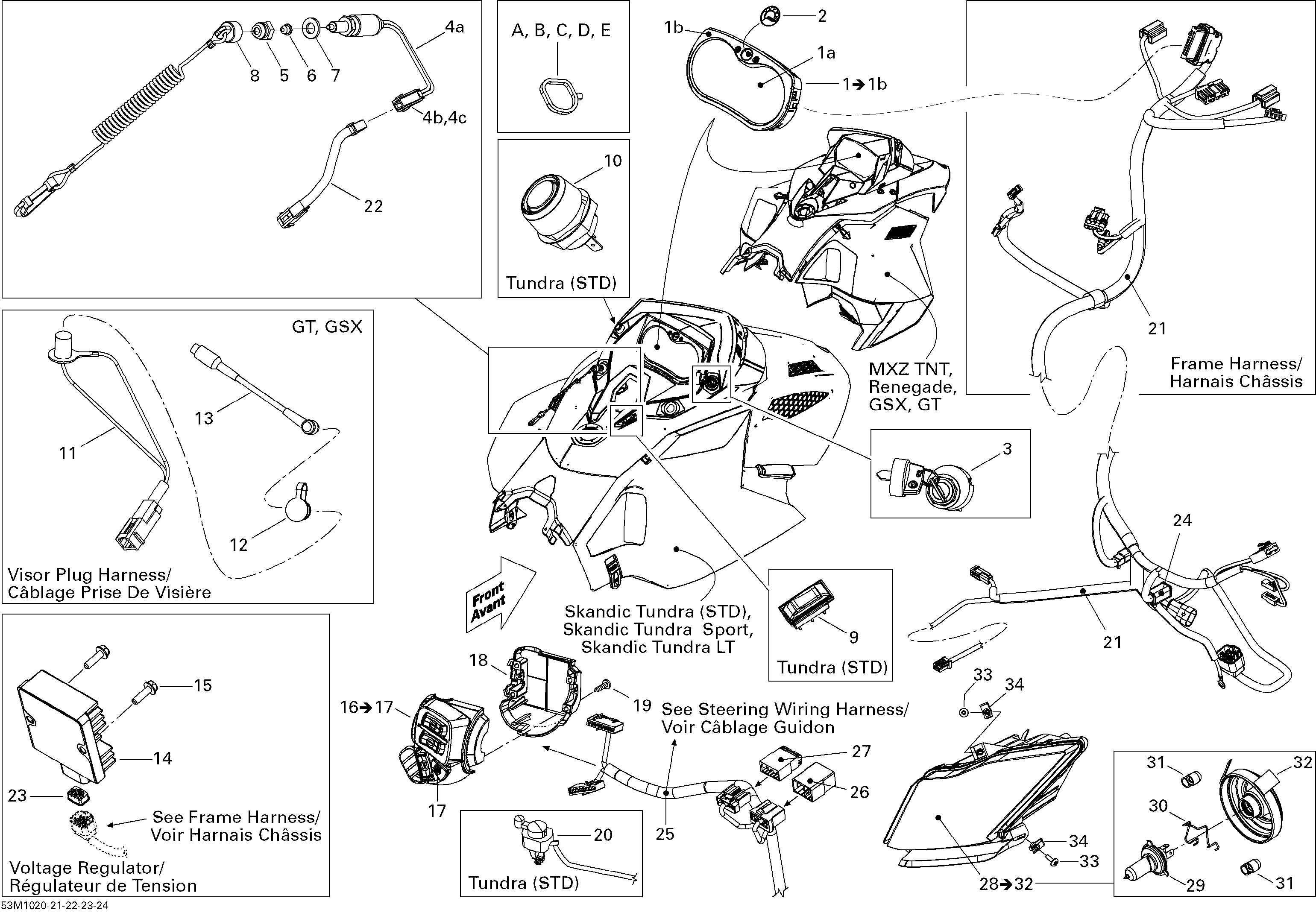

10- Electrical Accessories для BRP Ski-Doo Renegade Sport 550F - 2010
-
№АртикулНазвание
-
1515176958 Speedometer. Includes 1 to 1bSpeedometer. Includes 1 to 1b
-
1a415129349 LensLens
-
1b415129491 Ring Gage SpeedometerRing Gage Speedometer
-
2219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
3515176781 Ignition SwitchIgnition Switch
-
4a515175653 Brake SwitchBrake Switch
-
4b515175232 Male TerminalMale Terminal
-
4c515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
5515145900 Switch NutSwitch Nut
-
6570151100 Plunger CapPlunger Cap
-
7503183500 WasherWasher
-
8515176463 Cap Ass'yCap Ass'y
-
14515176699 Voltage RegulatorVoltage Regulator
-
15210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16515176187 LH Switch Housing. Included 16 to 17LH Switch Housing. Included 16 to 17
-
17515176088 Start/RER ButtonStart/RER Button
-
18515175926 Housing Switch PlateHousing Switch Plate
-
19250000263 Torx Screw #8-18Torx Screw #8-18
-
21515176882 Frame HarnessFrame Harness
-
22515176974 Filter Tachometer HarnessFilter Tachometer Harness
-
23515176681 LockLock
-
24515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
25515176567 Steering Wiring HarnessSteering Wiring Harness
-
26515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
27515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
28517304194 RH Headlamp Ass'y. Included 28 to 32RH Headlamp Ass'y. Included 28 to 32
-
28517304195 LH Headlamp Ass'y. Included 28 to 32LH Headlamp Ass'y. Included 28 to 32
-
29515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
31515176498 CapCap
-
32515176499 CoverCover
-
33250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
34250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
A414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
B293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
C293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
D293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
E293750009 Tie-Rap 173 mmTie-Rap 173 mm
