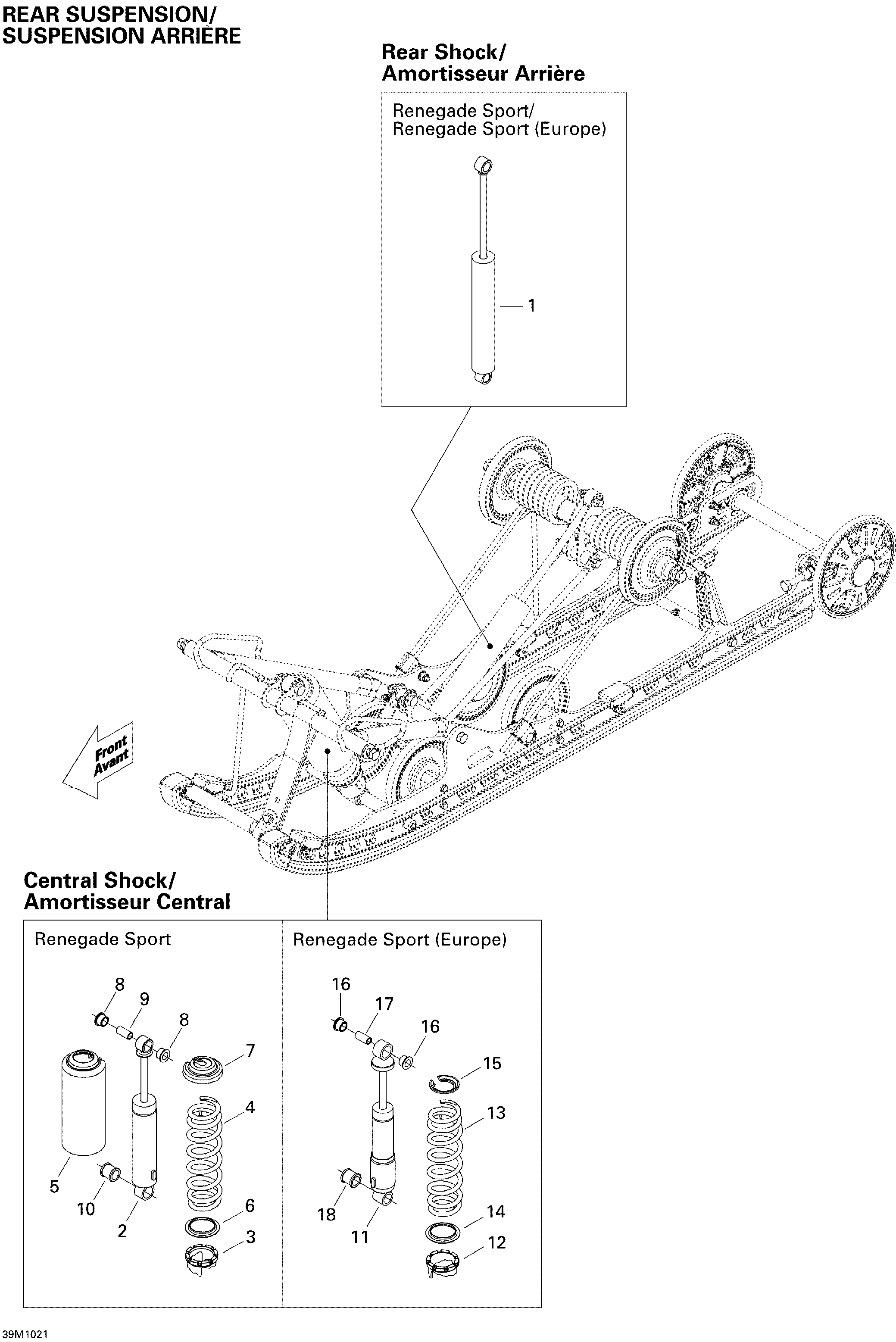

08- Rear Suspension Shocks для BRP Ski-Doo Renegade Sport 550F - 2010
-
№АртикулНазвание
-
1503192159 Rear Shock HPGRear Shock HPG
-
2503192266 Center ShockCenter Shock
-
3505070150 Adjustment CamAdjustment Cam
-
4503191882 SpringSpring
-
5503191126 ProtectorProtector
-
6503191872 Spring GuideSpring Guide
-
7706200881 Spring StopperSpring Stopper
-
8503189117 CushionCushion
-
9503189282 BushingBushing
-
10503189271 CushionCushion
-
11503191593 Center Shock. EuropeCenter Shock. Europe
-
12505070150 Adjustment Cam. EuropeAdjustment Cam. Europe
-
13503191882 Spring. EuropeSpring. Europe
-
14503191872 Spring Guide. EuropeSpring Guide. Europe
-
15503192029 Spring Stopper. EuropeSpring Stopper. Europe
-
16503189117 Cushion. EuropeCushion. Europe
-
17503189282 Bushing. EuropeBushing. Europe
-
18503189271 Cushion. EuropeCushion. Europe
