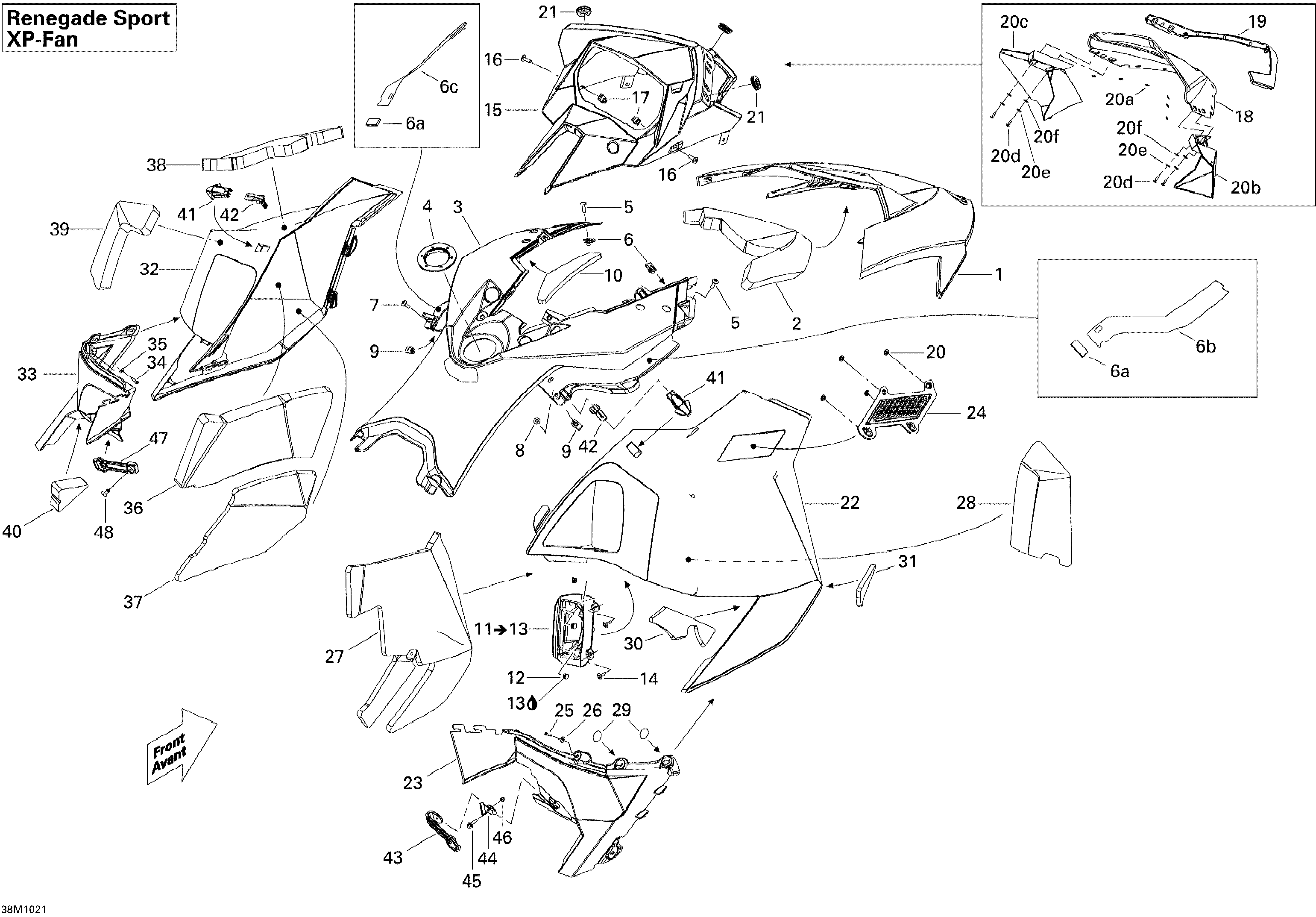

09- Hood для BRP Ski-Doo Renegade Sport 550F - 2010
-
№АртикулНазвание
-
1517304198 Yellow HoodYellow Hood
-
2517303990 Hood FoamHood Foam
-
3517304409 Yellow ConsoleYellow Console
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
6a517304105 Console DecalConsole Decal
-
6b517304103 RH DecalRH Decal
-
6c517304104 LH DecalLH Decal
-
7250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10517304515 Console FoamConsole Foam
-
11517304322 Black RH Console. Includes 11 to 13Black RH Console. Includes 11 to 13
-
12275500241 Black CapBlack Cap
-
13413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
14250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
15517303948 Indicator SupportIndicator Support
-
16250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
17250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
18860200478 Windsheld Kit 375Windsheld Kit 375
-
18517304395 Windsheld 375mmWindsheld 375mm
-
19517303607 Windshield SupportWindshield Support
-
20a732610072 Push NutPush Nut
-
20b517303604 RH Air DeflectorRH Air Deflector
-
20c517303605 LH Air DeflectorLH Air Deflector
-
20d250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
20e250200025 Washer M5Washer M5
-
20f250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
21517303756 GrommetGrommet
-
22517304029 Deep Black RH PanelDeep Black RH Panel
-
23517303671 Deep Black RH Moulding PanelDeep Black RH Moulding Panel
-
24517303622 GrillGrill
-
25241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
26234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
27517304280 RH Center FoamRH Center Foam
-
28517303982 RH Panel Rear FoamRH Panel Rear Foam
-
29518325560 Adhesive PatchAdhesive Patch
-
30517304513 RH Front panel FoamRH Front panel Foam
-
31517304514 RH Lower FoamRH Lower Foam
-
32517304030 Deep Black LH PanelDeep Black LH Panel
-
33517303673 Deep Black LH Moulding PanelDeep Black LH Moulding Panel
-
34241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
35234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
36517303983 LH Panel Center FoamLH Panel Center Foam
-
37517303984 LH Panel Lower FoamLH Panel Lower Foam
-
38517303985 LH Panel Upper FoamLH Panel Upper Foam
-
39517303986 LH Panel Rear FoamLH Panel Rear Foam
-
40517303987 FoamFoam
-
41517304075 End Piece LatchEnd Piece Latch
-
42517303981 Panel LatchPanel Latch
-
43517303612 RH Panel LatchRH Panel Latch
-
44517304221 Latch SupportLatch Support
-
45207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
46233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
47517303808 LH Panel LatchLH Panel Latch
-
48293150108 Pop Rivet 3/16''Pop Rivet 3/16''
