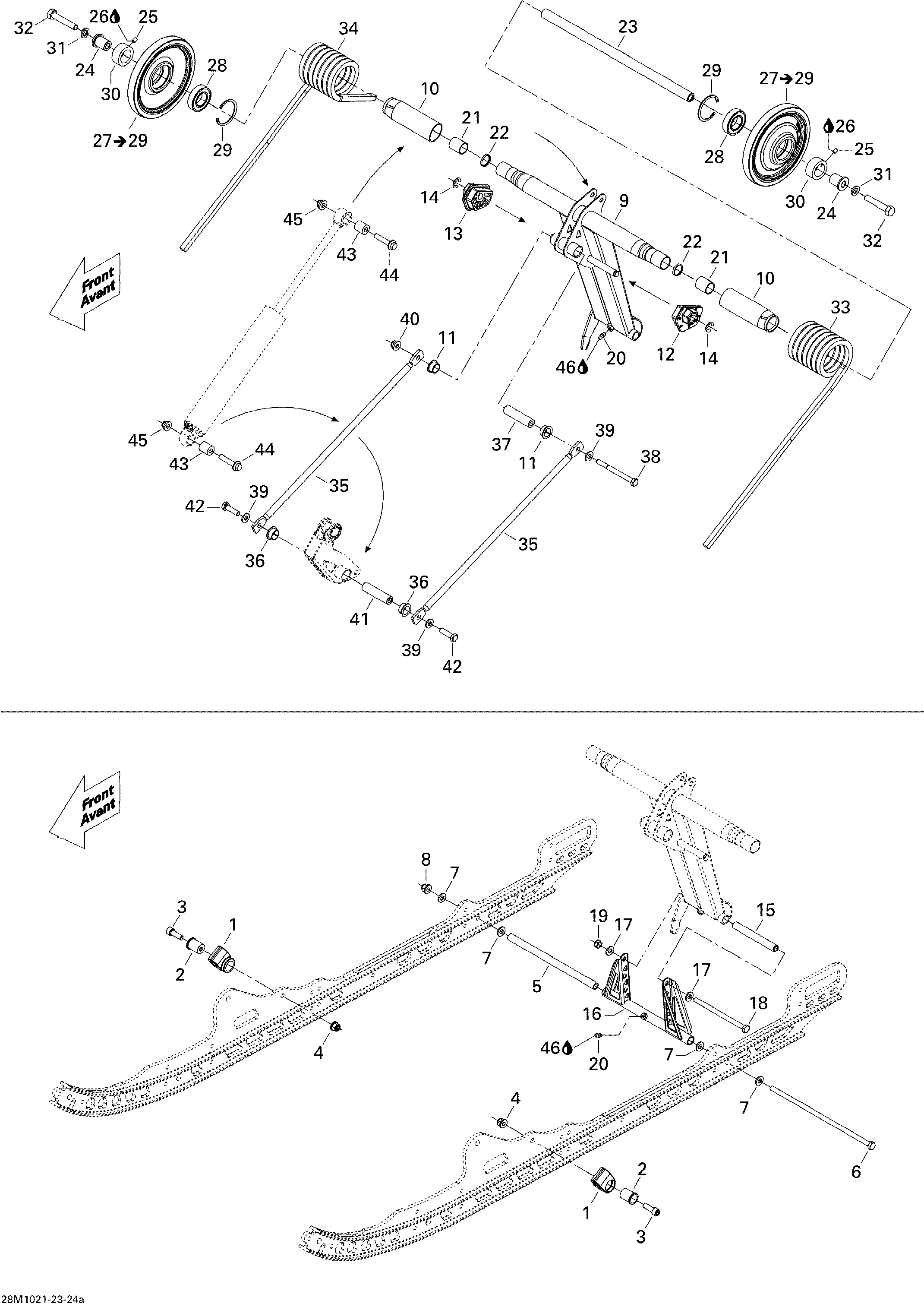

08- Rear Arm для BRP Ski-Doo Renegade Sport 550F - 2010
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Retainer CushionRetainer Cushion
-
3205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503189156 Pivot Arm AxlePivot Arm Axle
-
6732601198 Long Bolt M8Long Bolt M8
-
7503189157 WasherWasher
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9503192253 Rear ArmRear Arm
-
10572080700 BushingBushing
-
11503191555 Swivel BushingSwivel Bushing
-
12503191565 LH Cam AdjusterLH Cam Adjuster
-
13503191566 RH Cam AdjusterRH Cam Adjuster
-
14293370013 E-CirclipE-Circlip
-
15503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
16503191209 Pivot ArmPivot Arm
-
17503189157 WasherWasher
-
18732601197 Bolt M8, ShortBolt M8, Short
-
19232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
20408200700 Grease FittingGrease Fitting
-
21503191556 Extended BushingExtended Bushing
-
22503191651 WasherWasher
-
23503192222 Upper ShaftUpper Shaft
-
24503192223 BushingBushing
-
25206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27503191738 Wheel, 155 mm. Includes 27 to 29Wheel, 155 mm. Includes 27 to 29
-
28503191982 Ball BearingBall Bearing
-
29415129371 Retaining RingRetaining Ring
-
30503168800 Retaining RingRetaining Ring
-
31503189276 WasherWasher
-
32207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
33503192081 LH SpringLH Spring
-
34503192080 RH SpringRH Spring
-
35503192255 Linkage RodLinkage Rod
-
36503191555 Swivel BushingSwivel Bushing
-
37503190643 Bar AxleBar Axle
-
38207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
39503189157 WasherWasher
-
40233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
41503192139 Bar AxleBar Axle
-
42207383044 Hex. Screw M8 x 30, Scotch GripHex. Screw M8 x 30, Scotch Grip
-
43414936000 CushionCushion
-
44207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
45233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
46219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
