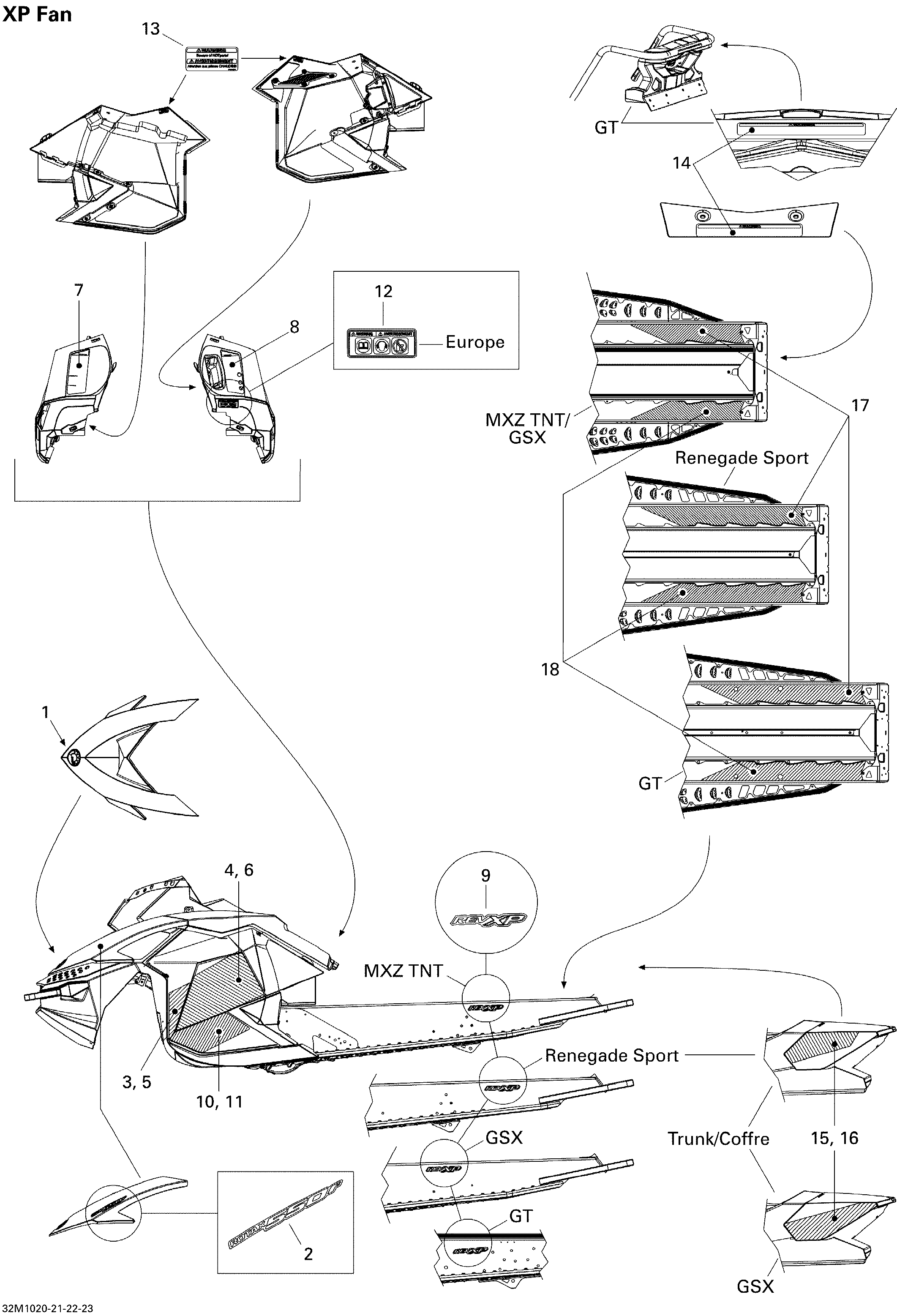

09- Decals для BRP Ski-Doo Renegade Sport 550F - 2010
-
№АртикулНазвание
-
1219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
2516004237 Hood Decal, Rotax 550FHood Decal, Rotax 550F
-
3516004055 RH Front Side DecalRH Front Side Decal
-
4516004002 RH Side DecalRH Side Decal
-
5516004054 LH Front Side DecalLH Front Side Decal
-
6516004001 LH Side DecalLH Side Decal
-
7516003788 Warning Decal, SecurityWarning Decal, Security
-
8516003790 Warning Decal, SecurityWarning Decal, Security
-
9516003543 Decal, REV XPDecal, REV XP
-
10516004053 RH Lower DecalRH Lower Decal
-
11516004052 LH Lower DecalLH Lower Decal
-
12516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
13516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
14516003578 Warning Decal, TrackWarning Decal, Track
-
15516004051 RH Cover DecalRH Cover Decal
-
16516004050 LH Cover DecalLH Cover Decal
-
17516003860 RH Frame DecalRH Frame Decal
-
18516003859 LH Frame DecalLH Frame Decal
