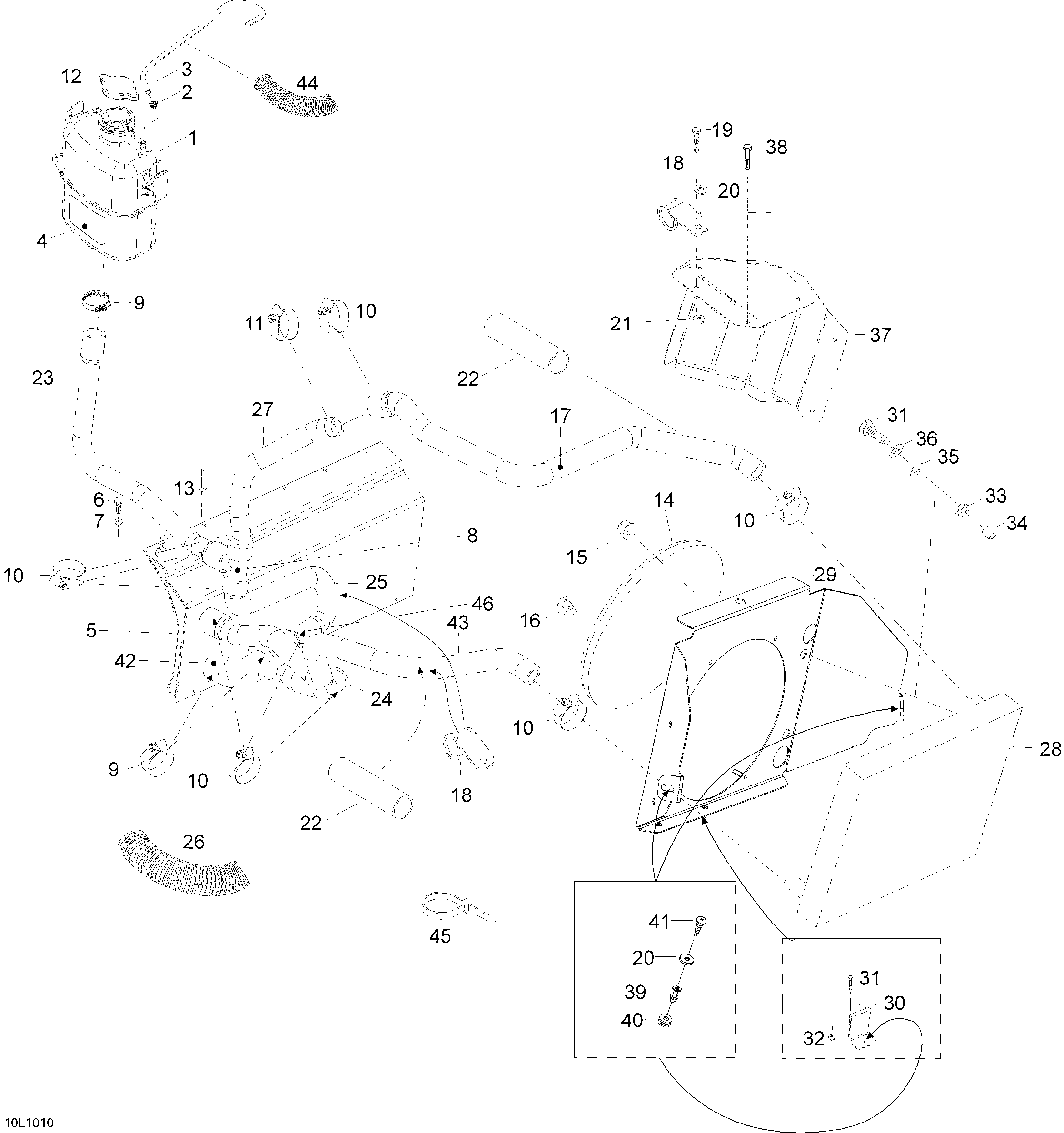

01- Cooling System для BRP Ski-Doo Skandic SWT V800 - 2010
-
№АртикулНазвание
-
1276000086 Coolant TankCoolant Tank
-
2605627003 ClampClamp
-
3415080200 Hose, PolyurethaneHose, Polyurethane
-
4M44110 Reflective SheetReflective Sheet
-
5605253699 RadiatorRadiator
-
6207161044 Hex. Screw M6 X 10Hex. Screw M6 X 10
-
7M20041 SealSeal
-
8509000219 T-FittingT-Fitting
-
9408800400 Tridon Gear ClampTridon Gear Clamp
-
10605627002 ClampClamp
-
11605627004 ClampClamp
-
12509000180 Pressure CapPressure Cap
-
13M36108 RivetRivet
-
14605155907 FanFan
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16414227300 ClipClip
-
17605253694 HoseHose
-
18M27039 ClampClamp
-
19207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
20M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22M39062 TubingTubing
-
23605253689 HoseHose
-
24605354452 HoseHose
-
25605354451 HoseHose
-
26M28036 TubingTubing
-
27605253690 HoseHose
-
28605353238 Radiator 250Radiator 250
-
29605254916 Support PlateSupport Plate
-
30605354917 Fastening plateFastening plate
-
31207162044 Hex. Cap Screw M6 X 20Hex. Cap Screw M6 X 20
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33293720053 GrommetGrommet
-
34605453745 BushingBushing
-
35M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
36234161471 Lock Washer M6, BlackLock Washer M6, Black
-
37605254458 Deflector PlateDeflector Plate
-
38210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
39517303439 KnobKnob
-
40517302841 GrommetGrommet
-
41207151244 Hex. Screw M5 X 12Hex. Screw M5 X 12
-
42605354450 HoseHose
-
43605253693 HoseHose
-
44M27127 TubingTubing
-
45414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
46605353701 ThermostatThermostat
